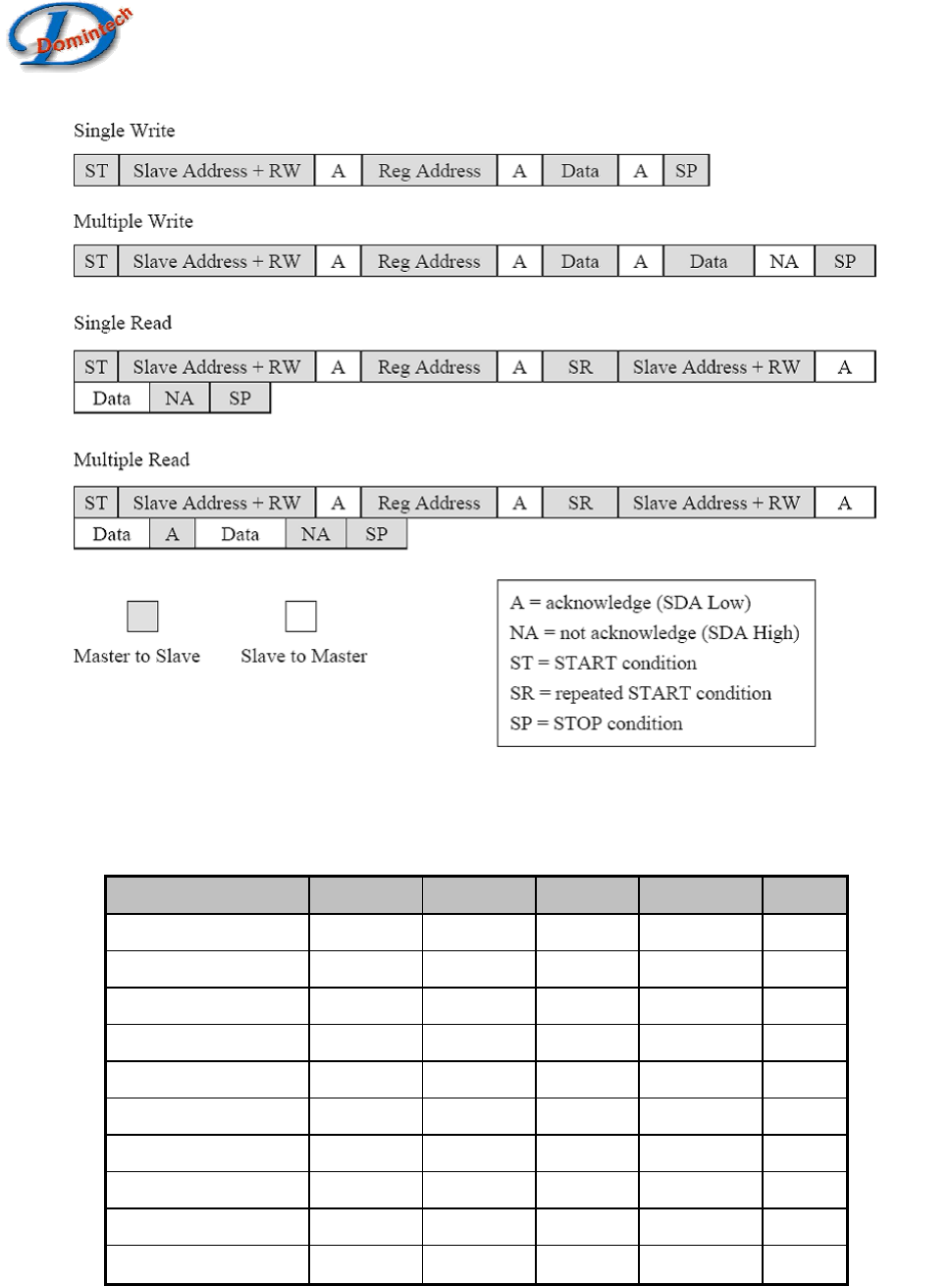

Table 10: I2C access format
I2C Specifications
Table 11: I2C Timing Specification
Parameter Symbol Minimum Typical Maximum Unit
SCL clock frequency SCL — — 400 kHz
Clock low period t
LOW
1.2 — — µs
Clock high period t
HIGH
0.6 — — µs
Bus free to new start t
BUF
1.2 — — µs
Start hold time t
HD.STA
0.6 — — µs
Start setup time t
SU.STA
0.6 — — µs
Data-in hold time t
HD.DAT
0 — — µs
Data-in setup time t
SU.DAT
100 — — ns
Stop setup time t
SU.STO
0.6 — — µs
Data-out hold time t
DH
50 — — ns
