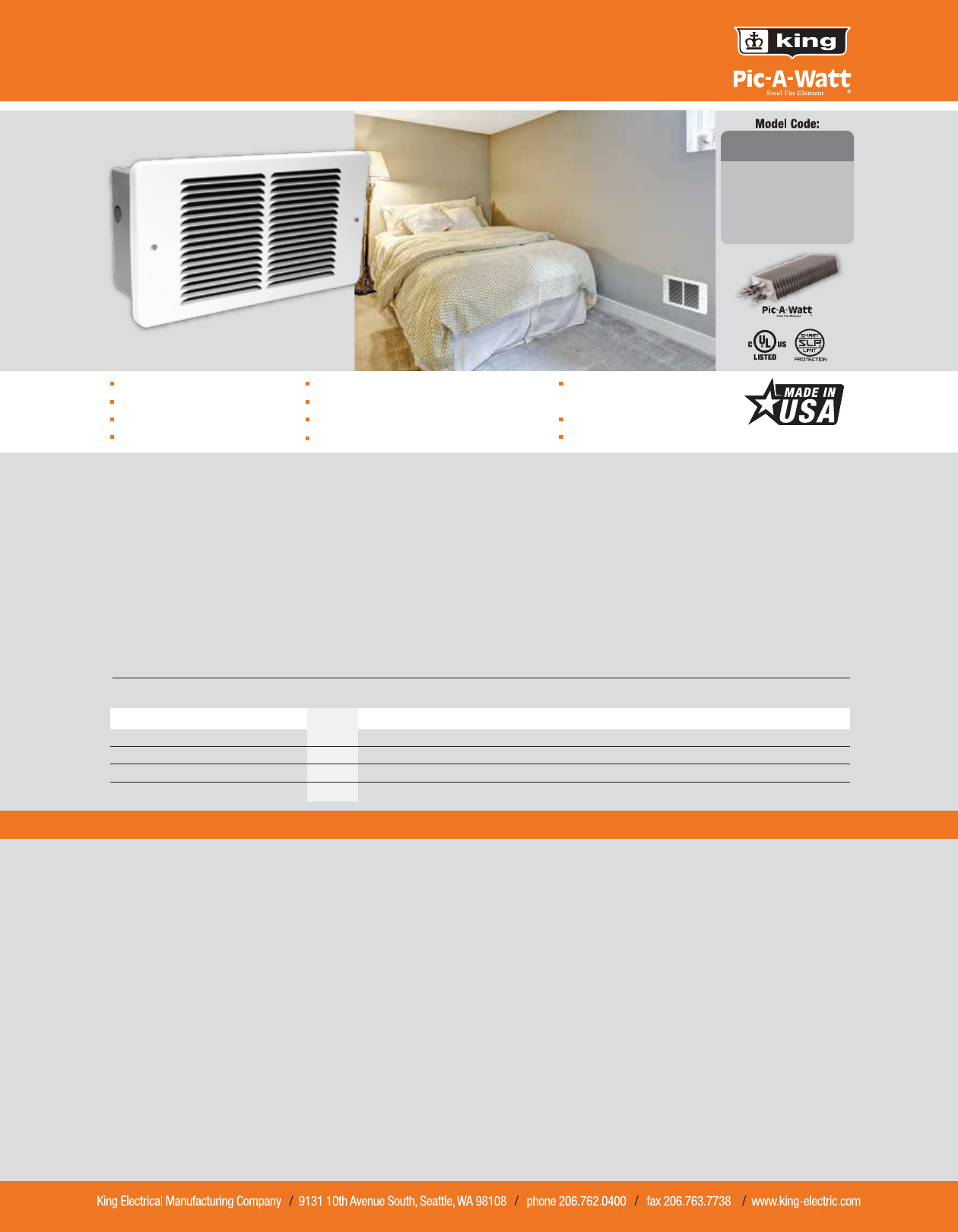

Specification

Wall HeaterPAW Series
Contractor shall supply and install PAW Series in-wall forced-air electric heaters manufactured by King Electrical Mfg. Company,
of the wattage and voltage as indicated on the plans.
Ratings: Heaters shall be available in wattages of 250 to 2,250
at 120, 208, 240, or 277 Volts.
Blower and Motor: A whisper quiet tangential blower, delivering 75
CFM, shall be driven by a shaded pole, permanently lubricated, C-frame
type motor with impedance protection and sealed bearings. Motors shall
be the same voltage as the heater.
Elements: Element assemblies shall consist of three steel sheathed
heating tubes in a furnace-brazed, plate-finned, block design. Each
sheathed tube shall contain coiled Ni-Chrome wire embedded in an
insulator of Magnesium Oxide. The element assembly shall provide up to
seven (7) possible wattage configurations available for selection during
field installation. The use of external resistors, diodes, or other weak links
to obtain multiple wattages will not be acceptable.
Thermal Overload: Heaters shall be equipped with King’s patented
thermal overload Smart Limit Protection
®, which disconnects elements
The PAW Series
The Original Multi-Watt steel fin heater and our most popular heater for single family residences and upscale condominiums.
King’s exclusive Pic-A-Watt steel fin element allows customers to select from a range of wattage options, tailoring the heater to an
area’s specific heating requirements. Perfect for large living areas yet whisper quiet enough for bedrooms. The premium combination
of an efficient high-mass steel element and whisper quiet squirrel cage blower, offers top of the class performance and years of trouble
-free operation. PAW comes with five year warranty and 20+ year history of reliability. For best results use with an electronic line
voltage wall thermostat. Also available with a built-in thermostat. The wall can shall be 20 gauge electro-galvanized steel and contain
knockouts through which power leads are brought. The wall can shall be able to mount directly to wall studs in new or existing construc-
tion. The wall can shall be provided with QuickSet™ stud alignment tabs, used for maintaining proper depth during new installation. The
wall can shall be supplied with a factory installed ground wire. Clearance: 6” to a side all, 4” from floor minimum.
and motor in the event normal operating temperatures are exceeded.
If thermal overload trips due to abnormal operating temperatures, thermal
overload shall remain open until manually reset by turning the heater off
for 15 minutes. Automatic reset of thermal overloads, which allow the
element to continue to cycle under abnormal conditions, will not be
accepted.
Grill: The grill shall be a louvered, one-piece design with rounded edges
on all four sides, with rounded corners to prevent snags from contact with
other materials. The grill shall be epoxy powder-coated in white or
almond.
Wall Can: The wall can shall be 20 gauge electro-galvanized steel and
shall contain a minimum of three (3) knockouts. The wall can shall have
a depth gauge indicator, and a factory installed, insulated and stranded
copper ground-wire. Minimum 4”clearance to floors and 6”sidewalls.
Zero clearance to combustibles in the wall.
Approvals: cULus (E41422)
A: Wall Heater
B: 12 - 120V 24 - 240V
20 - 208V 27 - 277V
C: Watts (250 to 2250)
D: Interior & Grill
E: Right Hand Feed
PAW
A
12
B
15
C
-I
D
-RF
E
Standard color: white
(optional almond color available)
120, 208, 240, or 277 Volts
5 Year Warranty
Pic-A-Watt
®
Element
Squirrel Cage Blower
C-Frame Motor
Patented Smart Limit Protection
®
Whisper Quiet
Multiple wattages 250-2250
20 gauge powder-coated grill
Wall can with QuickSet
™
stud alignment tabs
SHIP WEIGHT lbs
9.5
9.5
9.5
9.5PAW2720
MODEL
PAW1215
PAW2022
PAW2422 240
277
VOLTS
120
20800512
16300
16302
16303
UPC WATTS
1000 • 2000
250•500•750•1000•1250•1500
500•750•1000•1250•1500•1750•2250
500•750•1000•1250•1500•1750•2250
AMPS
2.1-12.5
2.4-10.8
2.1-9.4
3.6-7.2
Ordering Information
Engineering Specifications
