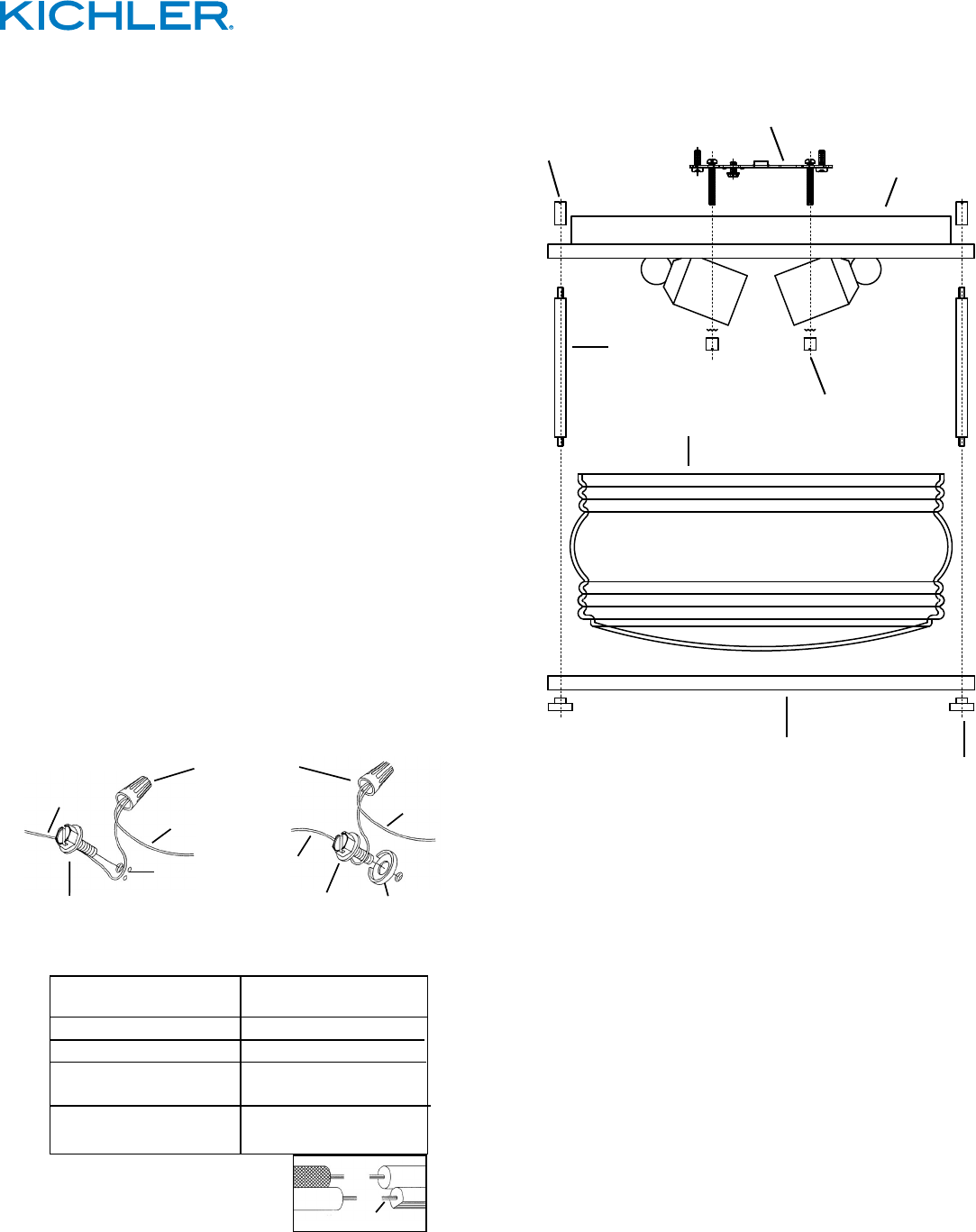

Installation Guide

1) With rod positioned so the longer threaded stud on the rod
is on top of the rod, pass long threaded stud on end of rod
up through hole in canopy. Thread finial on to end of rod
protruding from top of canopy.
2) Repeat step 1 for remaining rods.
3) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work
without shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your
home. Place the main power switch in the “OFF”
position.
b) Unscrew the fuse(s), or switch “OFF” the circuit breaker
switch(s), that control the power to the fixture or room
that you are working on.
c) Place the wall switch in the “OFF” position. If the fixture
to be replaced has a switch or pull chain, place those in
the “OFF” position.
4) Find the appropriate threaded holes on mounting strap.
Assemble mounting screws into threaded holes.
5) Attach mounting strap to outlet box. (Screws not provided)
Mounting strap can be adjusted to suit position of fixture.
6) Grounding instructions: (See Illus. A or B).
A) On fixtures where mounting strap is provided with a
hole and two raise dimples. Wrap ground wire from outlet
box around green ground screw, and thread into hole.
B) On fixtures where a cupped washer is provided. Put
ground wire from outlet box under cupped washer and
green ground screw and thread screw into hole in
mounting strap.
If fixture is provided with ground wire. Connect fixture
ground wire to outlet box ground wire with wire connector,
(not provided) after following the above steps. Never connect
ground wire to black or white power supply wires.
7) Make wire connections (connectors not provided.) Reference
chart below for correct connections and wire accordingly.
8) Push fixture to ceiling, carefully passing mounting screws
through holes in fixture.
9) Screw threaded balls onto mounting screws. Tighten
threaded balls to secure fixture to ceiling.
10) Insert recommended bulbs.
11) Raise glass up to fixture. Fit glass in between rods. Pass
hole in top of glass over bulb and socket. Fit top edge of
glass inside canopy.
12) Raise bottom cap up to fixture. Pass small holes along edge
of bottom cap over short threaded studs on ends of each
rod. Screw threaded caps onto threaded studs protruding
from bottom of bottom cap. Tighten threaded caps to
secure glass in place. (DO NOT over tighten.)
GREEN GROUND
SCREW
CUPPED
WASHER
A
B
OUTLET BOX
GROUND
FIXTURE
GROUND
DIMPLES
WIRE CONNECTOR
(NOT PROVIDED)
OUTLET BOX
GROUND
GREEN GROUND
SCREW
FIXTURE
GROUND
Connect Black or
Red Supply Wire to:
Connect
White Supply Wire to:
Black White
*Parallel cord (round & smooth) *Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with copper conductor
Insulated wire (other than green)
with silver conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
Neutral Wire
Date Issued: 10/16/15 IS-49669-US
MOUNTING STRAP
PLANCHA PARA MONTAR
CANOPY
ESCUDETE
THREADED BALL
BOLA ROSCADO
We’re here to help 866-558-5706
Hrs: M-F 9am to 5pm EST
FINIAL
CAPUCHÓN
ROD
VARILLA
GLASS
VIDRIO
THREADED CAP
TAPA ROSCADA
BOTTOM CAP
TAPA INFERIOR
SEE OTHER SIDE FOR SPANISH TRANSLATIONS.
VEA EL OTRO LADO DE TRADUCCIONES AL ESPAÑOL.
