2 Making Measurements
Measuring Temperature
52 U1231A/U1232A/U1233A User’s Guide

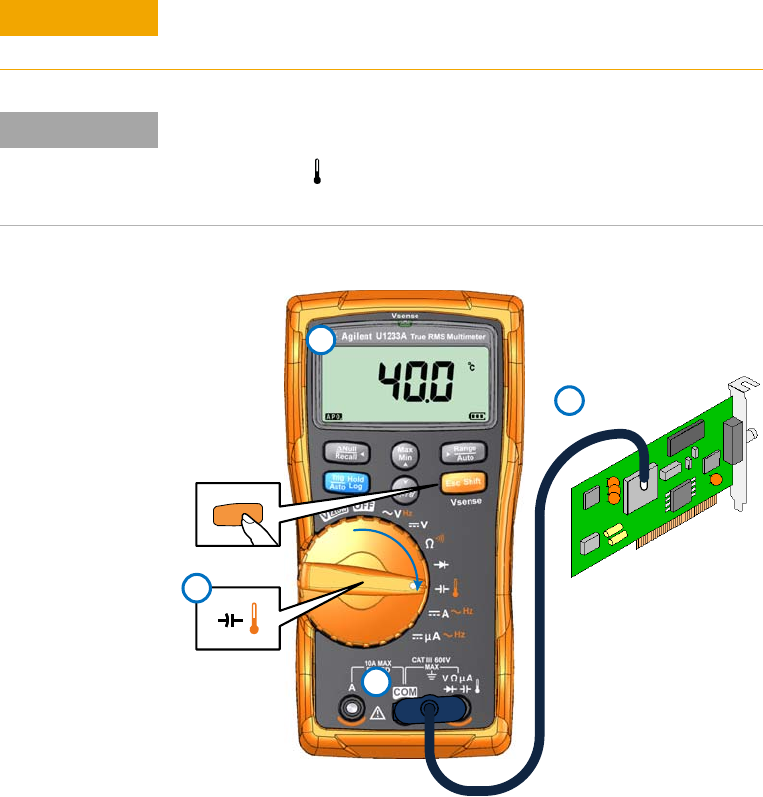

Figure 2-19 Measuring the surface temperature
CAUTION
Always set the temperature unit display per the official requirements
and in compliance with the national laws of your region.
NOTE
• The multimeter uses a type-K thermocouple probe (U1186A, purchased
separately) for measuring temperature.
• Shorting the terminal to the COM terminal will display the
temperature at the multimeter’s terminals.
Type K Thermocouple Probe
4
1
3
Heat source
2
S
h
i
f
t
E
s
c
K-type thermocouple probe
