Multimeter Setup Options 4
Setup Menu Items
U1231A/U1232A/U1233A User’s Guide 89
Changing the LCD backlight timeout
The multimeter’s LCD backlight (see page 7) uses a timer to
determine when to turn off the LCD backlight.
Use this Setup item to adjust the LCD backlight timeout and
to change its timeout period from 1 to 99 seconds.

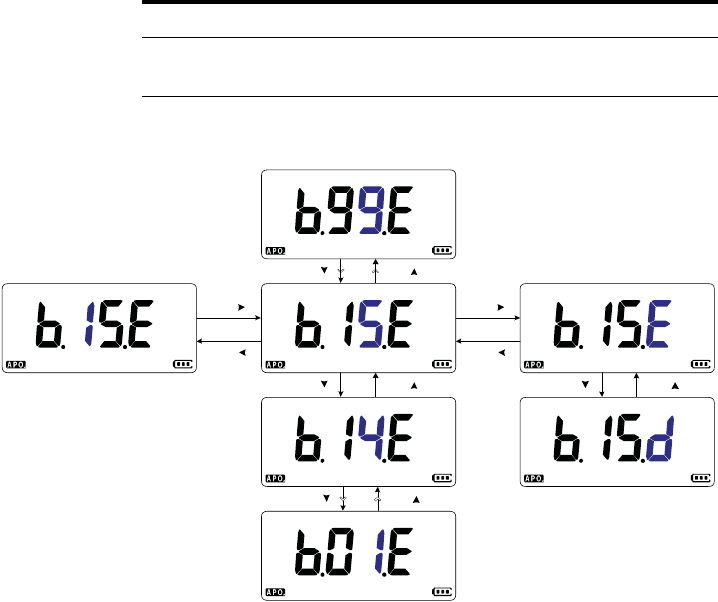

Figure 4-6 Changing the LCD backlight timeout
Parameter Range Default setting
b(acklight) (01 to 99).(d or E) seconds
(15.E) seconds
(enabled)
Press
Press
Press
Press
Press
Press
Press
Press
Press
Press
Press
Press
