4-31
- IV Series User's Manual (Monitor) -

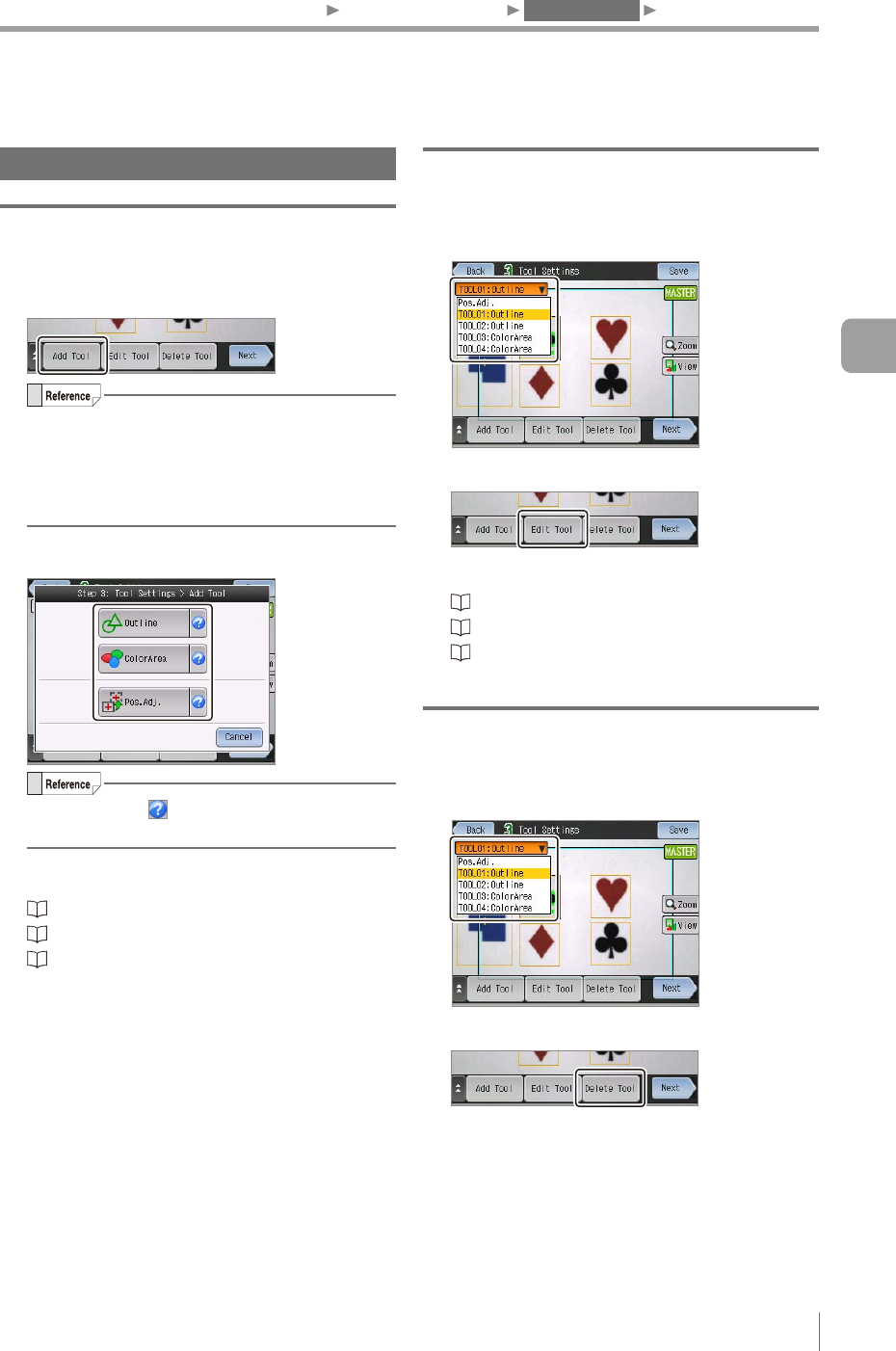

Adding/Editing/Deleting a tool
Adding a tool
Newly sets a tool.
1
Tap the [Add Tool] button.
If no tools are set, only the [Add Tool] button
is displayed.
If one or more tools are set in one program,
the [Edit Tool] and [Delete Tool] button are
displayed.
2
Tap the tool to be added.
By tapping the button, the help screen for
tools appears.
3
Set setting items for each tool.
“Outline tool” (Page 4-32)
“Color Area/Area tool” (Page 4-40)
“Position Adjustment tool” (Page 4-51)
Editing a tool
Edits the settings of a tool which has already been set.
1
Select a tool to edit the settings.
2
Tap the [Edit Tool] button.
3
Edit setting items for each tool.
“Outline tool” (Page 4-32)
“Color Area/Area tool” (Page 4-40)
“Position Adjustment tool” (Page 4-51)
Deleting a tool
Deletes an unnecessary tool.
1
Select a tool to be deleted.
2
Tap the [Delete Tool] button.
The conrmation dialog appears.
3
Tap the [OK] button.
The selected tool will be deleted and returns to
the main screen for the Tool settings.
1. Image Optimization 2. Master Registration 3. Tool Settings 4. Output Assignment
4
Settings Navigator (Setting the Judgment Condition)
