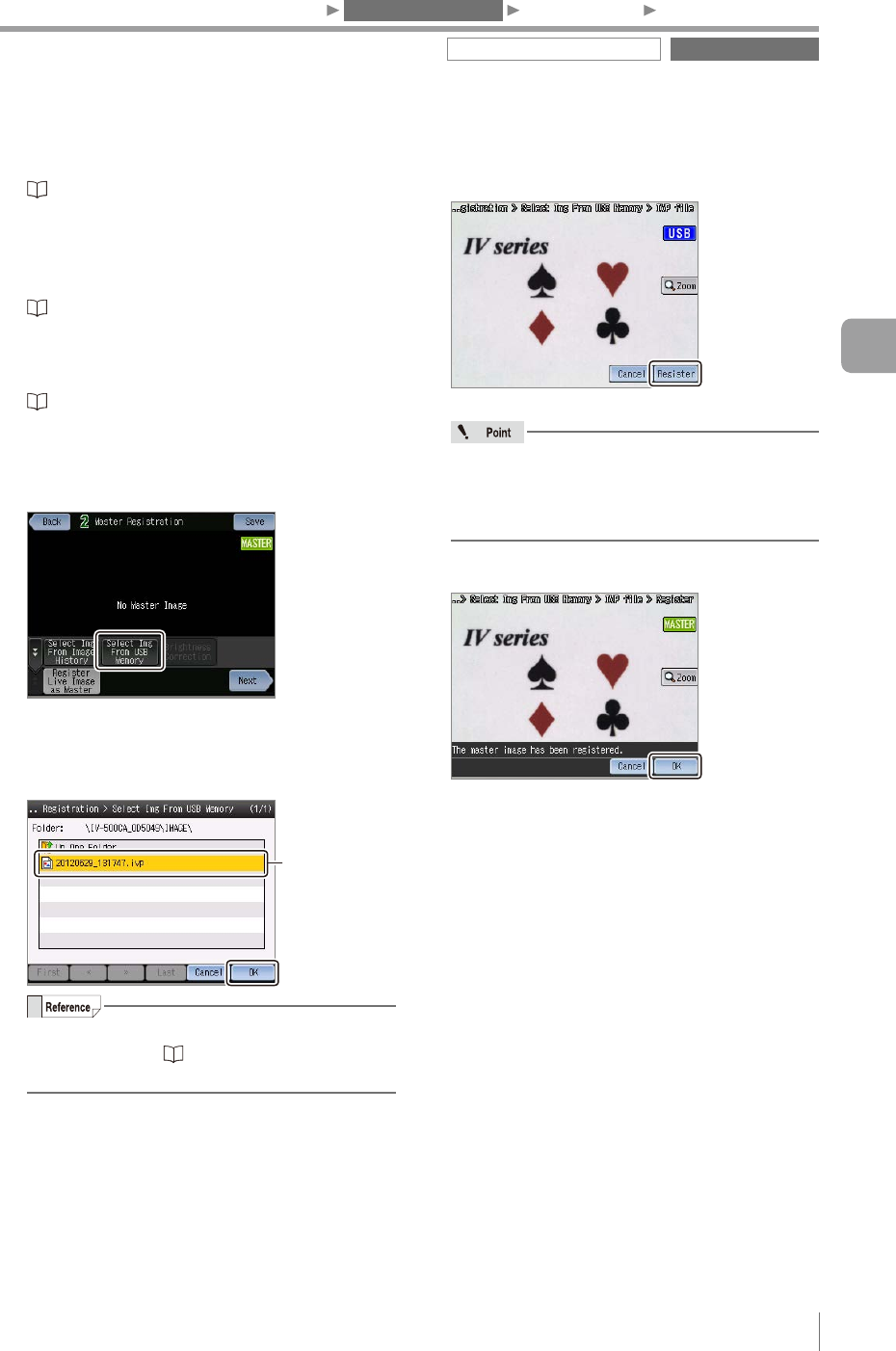

4-25
- IV Series User's Manual (Monitor) -
When using an image capture le (*.ivp)
“Saving the image history individually” (Page 6-20)
1
Connect the USB memory which stores
the image capture les (*.ivp) to the USB
port.
“Installing the USB memory” (Page 6-18)
2
Display the extended functions menu for
the master image registration.
“Display Method of Extended Functions Menus”
(Page 4-66)
3
Tap the [Select Img From USB Memory]
button.
The data in USB memory will be displayed.
4
Select the le to be registered as a master
image and tap the [OK] button.
Select the le
For details of selecting the les in the USB
memory, refer to “Selecting the le in the
USB memory” (Page 3-17).
The selected image will be magnied.
5
Check the image displayed on the monitor
and tap the [Register] button.
The conrmation dialog appears.
If the imaging area of the loaded image is
different, the conrmation dialog appears. If an
area that has not been imaged is registered,
the area will be displayed in black.
6
Tap the [OK] button.
The new master image will be registered and
returns to the main screen for the master image
registration.
Register Live Image as Master Extended functions
1. Image Optimization 2. Master Registration 3. Tool Settings 4. Output Assignment
4
Settings Navigator (Setting the Judgment Condition)
