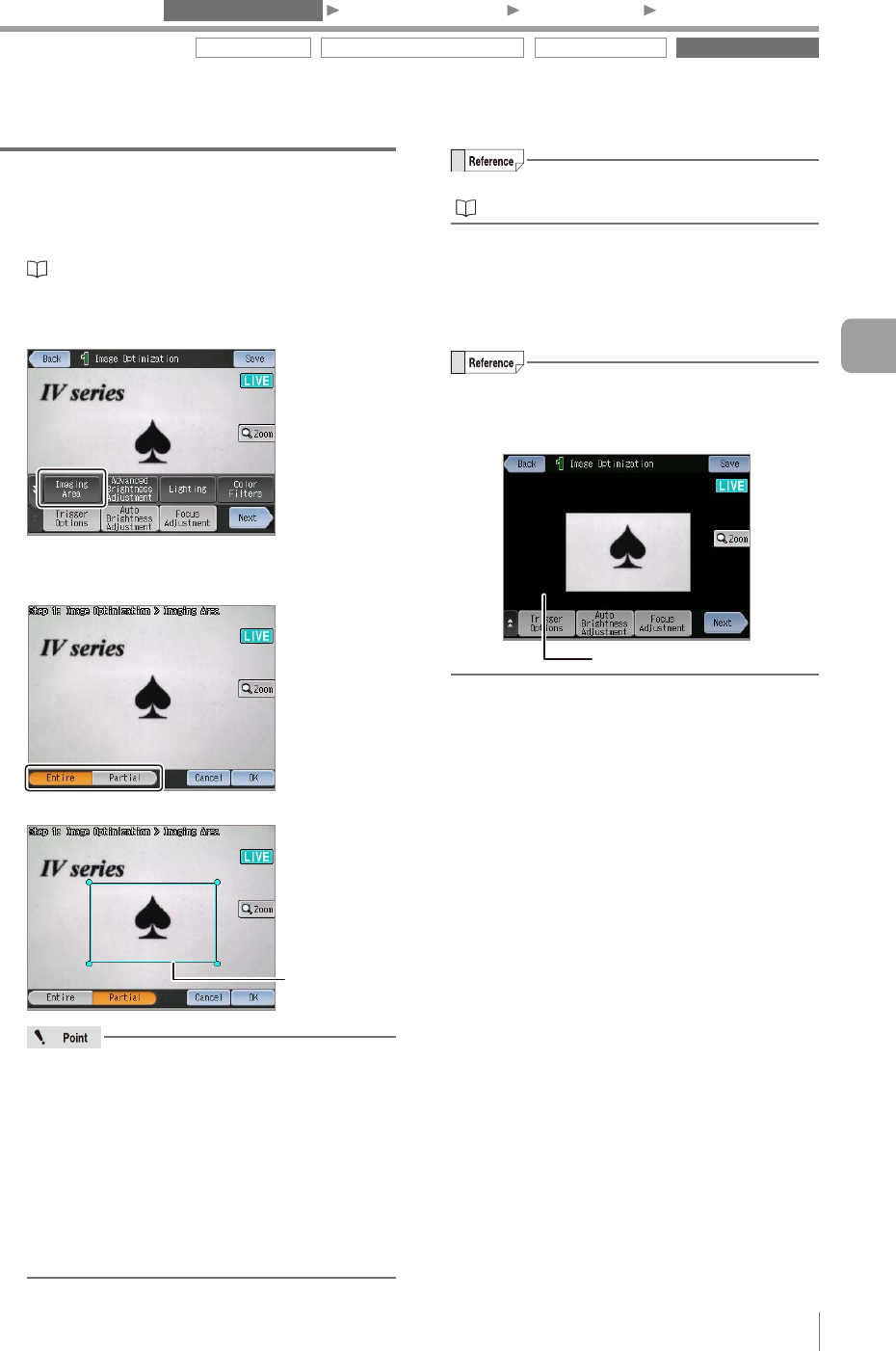

Imaging Area
1
Display extended functions menu for the
Image Optimization.
“Display Method of Extended Functions Menus”
(Page 4-66)
2
Tap the [Imaging Area] button.
The screen to set the imaging area opens.
3
Select type of imaging area.
If [Partial] is selected, edit the imaging area.
Imaging area
If the tool has been set, a rectangular area
containing tool windows of all tools which have
been set will be displayed as [Actv Range].
The imaging area cannot be set smaller than
the active range. To narrow down the imaging
area, change the placement of the tool
windows before adjusting the imaging area.
Set an area including the center of the eld of
the view when trapezoidal correction (Page
6-38) is to be performed. A region that cannot
be exposed is created in the exposure area.
For details of editing the tool window, refer to
“Editing the tool window” (Page 3-15).
4
After the setting is completed,
tap the [OK] button.
The system returns to the main screen for the
Image Optimization.
When an imaging area is specied, the area
outside the specied area will be displayed in
black.
Outside of specied area
