4-11
- IV Series User's Manual (Monitor) -

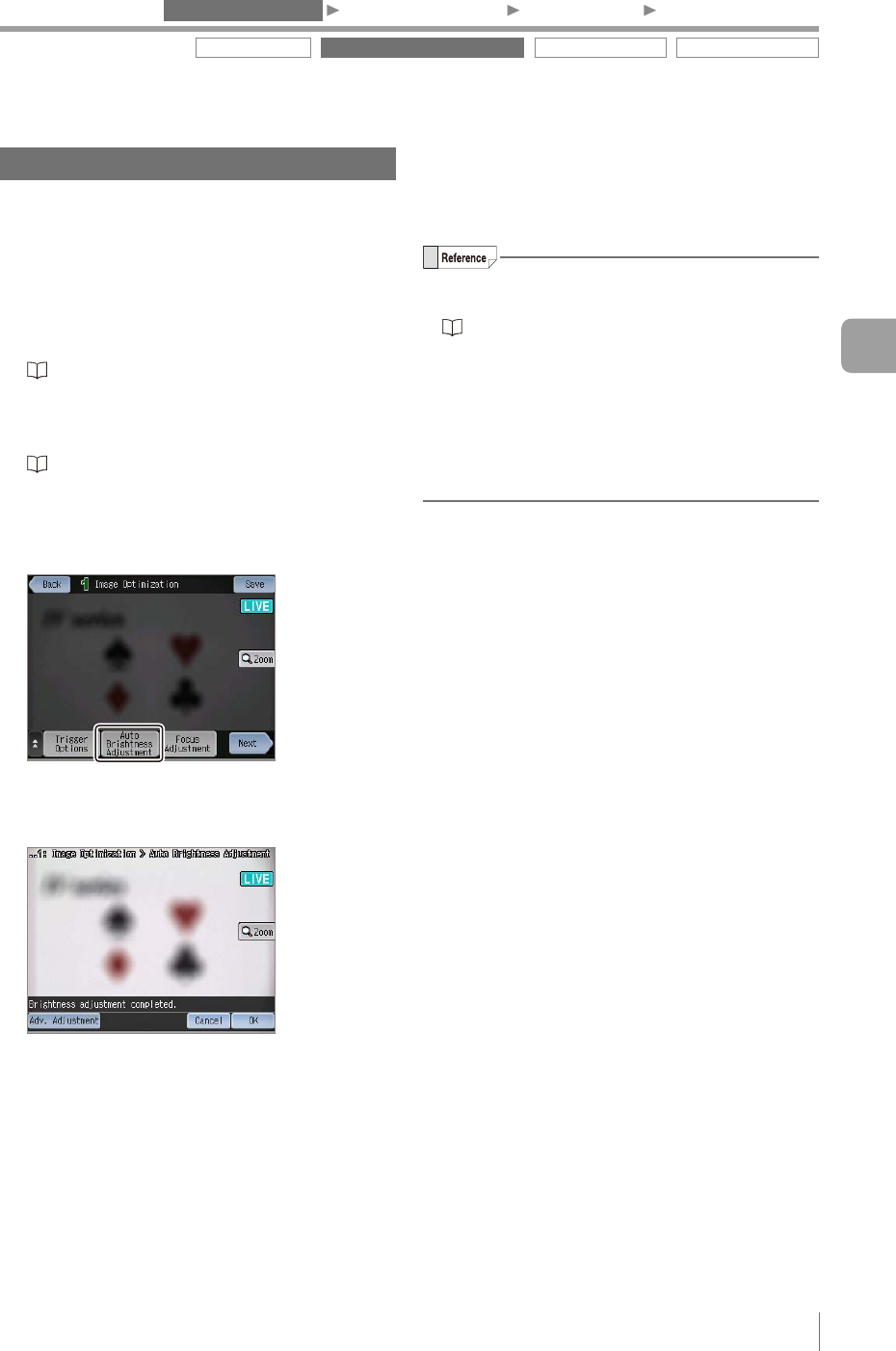

Auto Brightness Adjustment
In the Auto Brightness Adjustment, the target
can be imaged with an appropriate brightness by
automatically adjusting a light intensity, an exposure
time and an imaging mode according to the shape
and surface condition (color, shininess, material).
1
Start the Settings Navigator.
“Starting the Settings Navigator” (Page 4-3)
2
Display the main screen for the Image
Optimization.
“Settings Navigator screen and operation ow”
(Page 4-4)
3
Tap the [Auto Brightness Adjustment]
button.
After the adjustment is completed, the
“Brightness adjustment completed.” message
appears.
4
Tap the [OK] button.
The system returns to the main screen for the
Image Optimization.
The brightness of an image can be adjusted
manually.
“Advanced Brightness Adjustment” (Page 4-18)
During the auto brightness adjustment, the
sensor automatically images a target by
inputting the internal trigger regardless of the
Trigger Options settings.
Do not move a target during the auto brightness
adjustment. The focus may not be adjusted
correctly.
Trigger Options Auto Brightness Adjustment Focus Adjustment Extended functions
1. Image Optimization 2. Master Registration 3. Tool Settings 4. Output Assignment
4
Settings Navigator (Setting the Judgment Condition)
