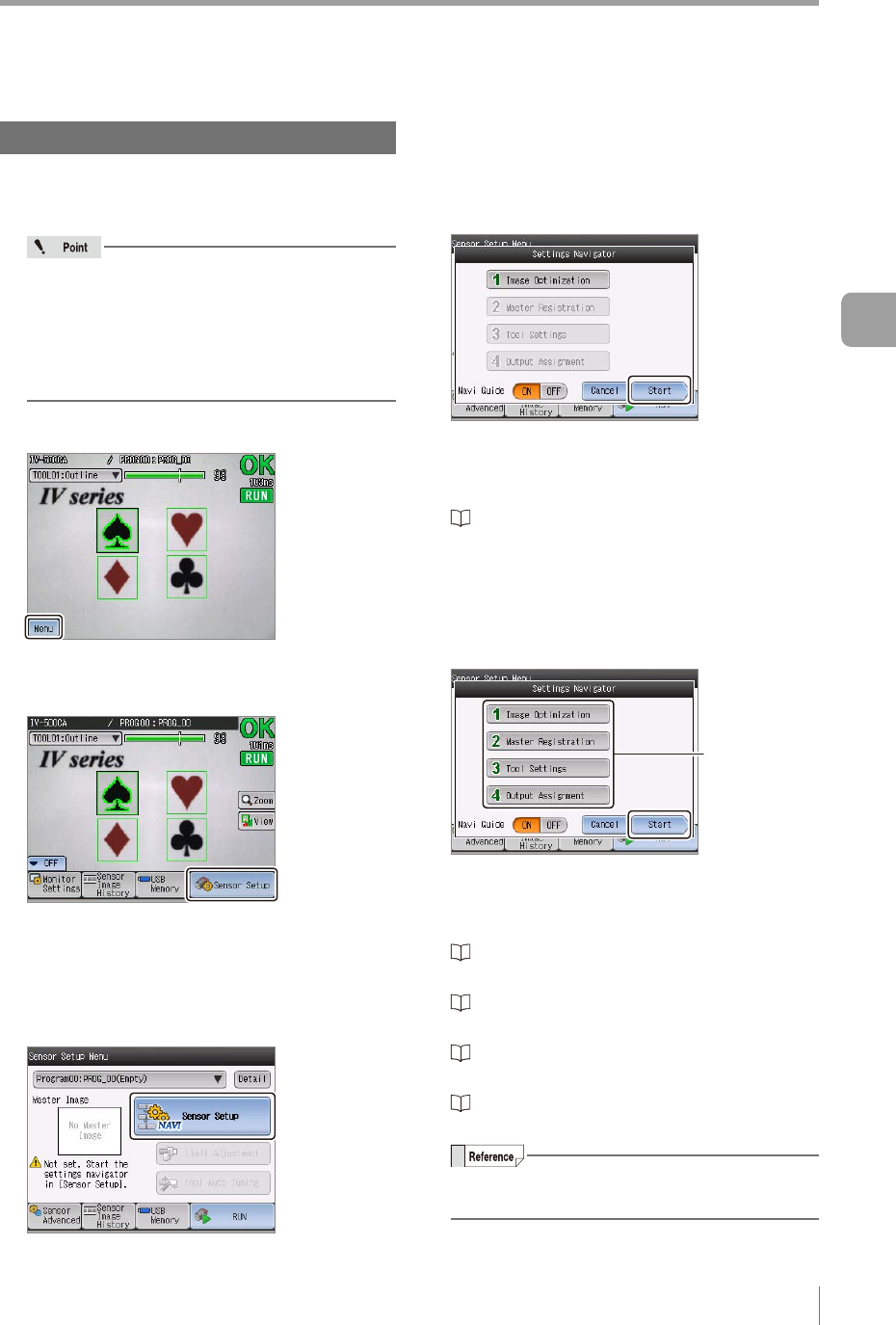

Basic Operation of the Settings Navigator
Starting the Settings Navigator
1
Turn on the power of the sensor and
monitor.
When the sensor is in the following condition,
the Sensor Setup Menu will be displayed.
Proceed to step 5.

When the power is turned on for the rst time

If all programs are not being set

If the sensor is being setting up
2
Tap the [Menu] button.
The menu bar appears.
3
Tap the [Sensor Setup] button.
The conrmation dialog appears.
4
Tap the [OK] button.
The Sensor Setup Menu screen opens.
5
Tap the [Sensor Setup] button.
The startup screen of the Settings Navigator opens.
6
Perform the following operation.

When the program which has not been set
in step 5 is selected
Tap the [Start] button.
The Settings Navigator guide screen opens.
Tap the [OK] button and start setting [1. Image
Optimization].
“1. Image Optimization (Clearly Image a
Target)” (Page 4-6)

When the program which has been set in
step 5 is selected
Tap the [Start] button. Or tap the shortcut button
for each step.
Shortcut button
The Settings Navigator guide screen of the
selected step opens.
Tap the [OK] button and start the setting.
“1. Image Optimization (Clearly Image a
Target)” (Page 4-6)
“2. Master Registration (Registering an Image
as a Reference for Judgment)” (Page 4-20)
“3. Tool Settings (Setting the Judgment Method for
Targets)” (Page 4-28)
“4. Output Assignment (Setting Details of
Outputting to Output Line)” (Page 4-60)
The Navi guide can be turned OFF if the
display of the Navi guide screen is not needed.
Basic Operation of the Settings Navigator
4
Settings Navigator (Setting the Judgment Condition)
