4-2
- IV Series User's Manual (Monitor) -

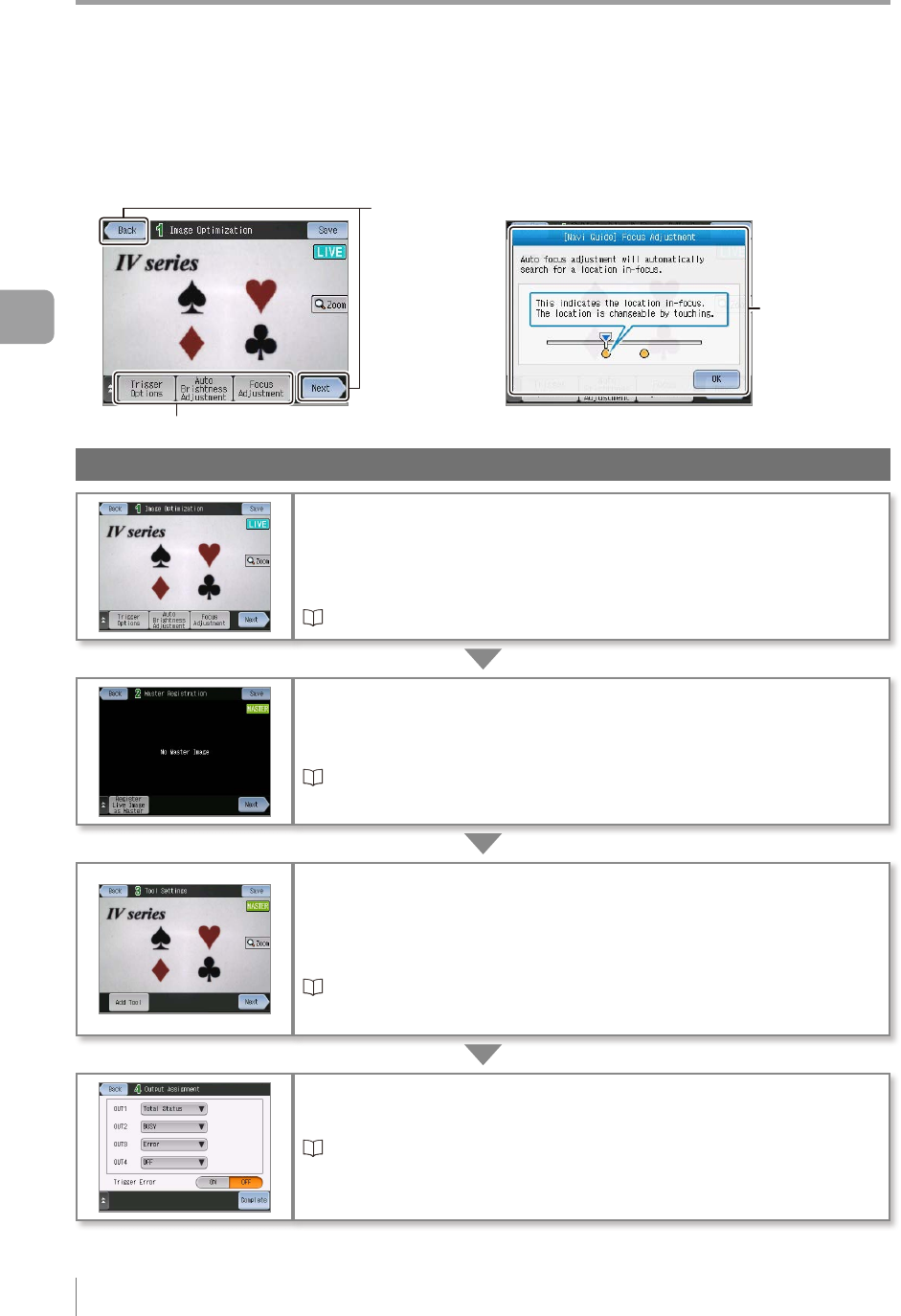

Settings Navigator
In the Settings Navigator, the setting items of the program required for judging the target with the sensor
are set in each step. While sequentially following the steps with navigation buttons, perform the setting
using the menu buttons in accordance with the Settings Navigator guide.
Menu button
Navigation
button
Settings
Navigator guide
Flow in the Settings Navigator
STEP 1. Image Optimization settings
Set the image optimization for clearly imaging a target. Adjust the image for
dening the differences in the high and low-quality-target. Set the trigger
option, adjust the brightness and imaging focus.
“1. Image Optimization (Clearly Image a Target)” (Page 4-6)
STEP 2. Registration of a master image
Image the high-quality-target and register the master image to serve as the
reference of judgment.
“2. Master Registration (Registering an Image as a Reference for Judgment)”
(Page 4-20)
STEP 3. Tool settings
Set the tool to judge a target. Set the tool onto the master image and set the
threshold for judgment. Up to 16 detection tools and 1 position adjustment
tool in one program can be set.
“3. Tool Settings (Setting the Judgment Method for Targets)” (Page 4-28)
STEP 4. Output assignment
Assign the function to output to each output line (OUT1 to OUT4).
“4. Output Assignment (Setting Details of Outputting to Output Line)”
(Page 4-60)
Settings Navigator
4
Settings Navigator (Setting the Judgment Condition)
