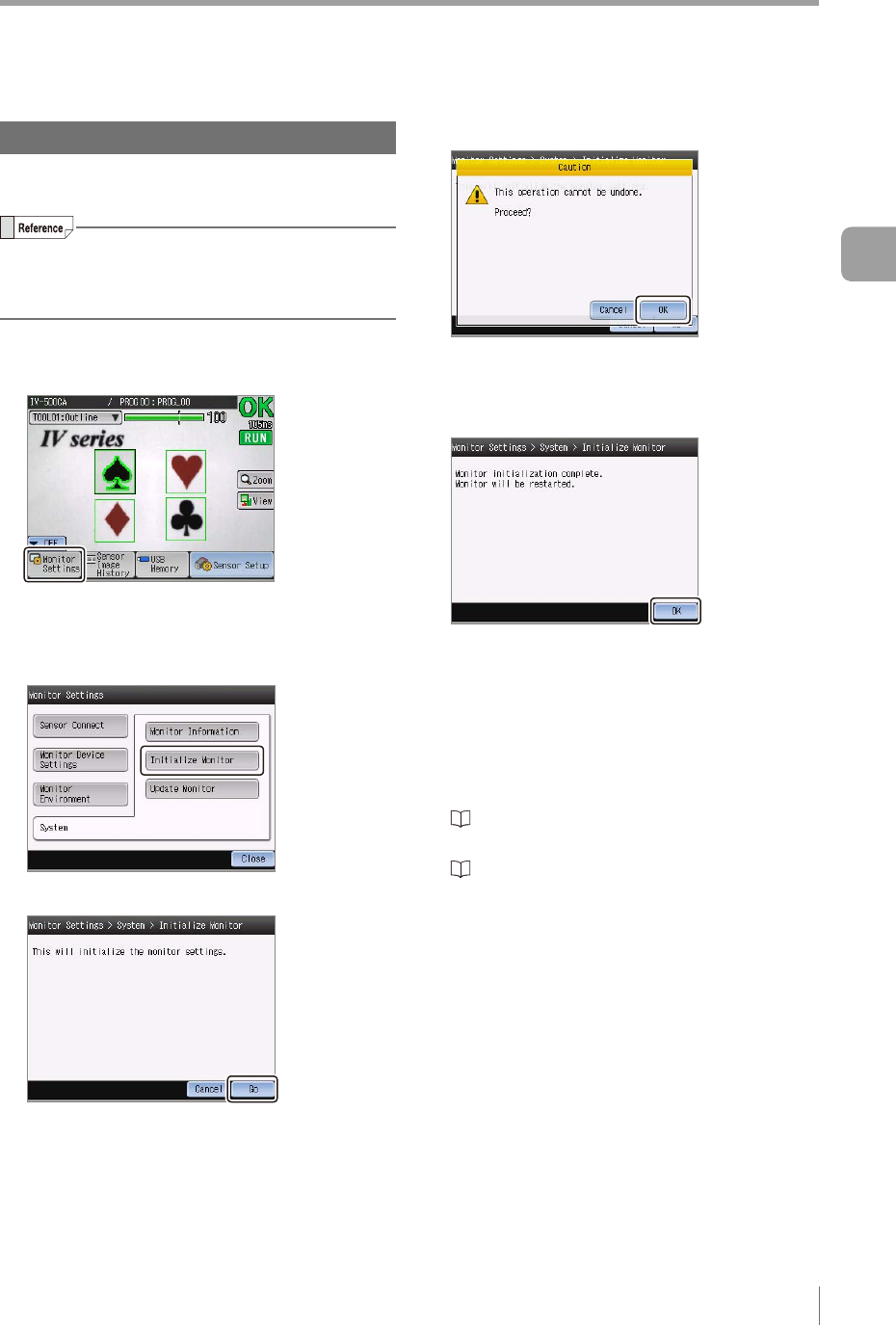

Setting to the Factory Default
Initializing the monitor
Initializes information set in the monitor and uses
factory default setting.
The following settings will not be initialized.
Language (Page 6-51)
Time (Page 6-51)
1
Set the menu display of the monitor to ON
and tap the [Monitor Settings] button.
The Monitor Settings screen opens.
2
Tap the [System] button and then the
[Initialize Monitor] button.
3
Tap the [Go] button.
The conrmation dialog appears.
4
Tap the [OK] button.
Initialization begins. After initialization is completed,
the initialization completion screen opens.
5
Tap the [OK] button.
The monitor restarts.
After restarting, set the display language, date
and time, and the connection method with the
sensor.
For the connection method with the sensor,
there are Direct Connection and Network
Connection.
“Operation for initial startup of the monitor
(Direct Connection)” (Page 3-6)
“Operation for initial startup of the monitor
(Network Connection)” (Page 3-7)
