3-12
- IV Series User's Manual (Monitor) -

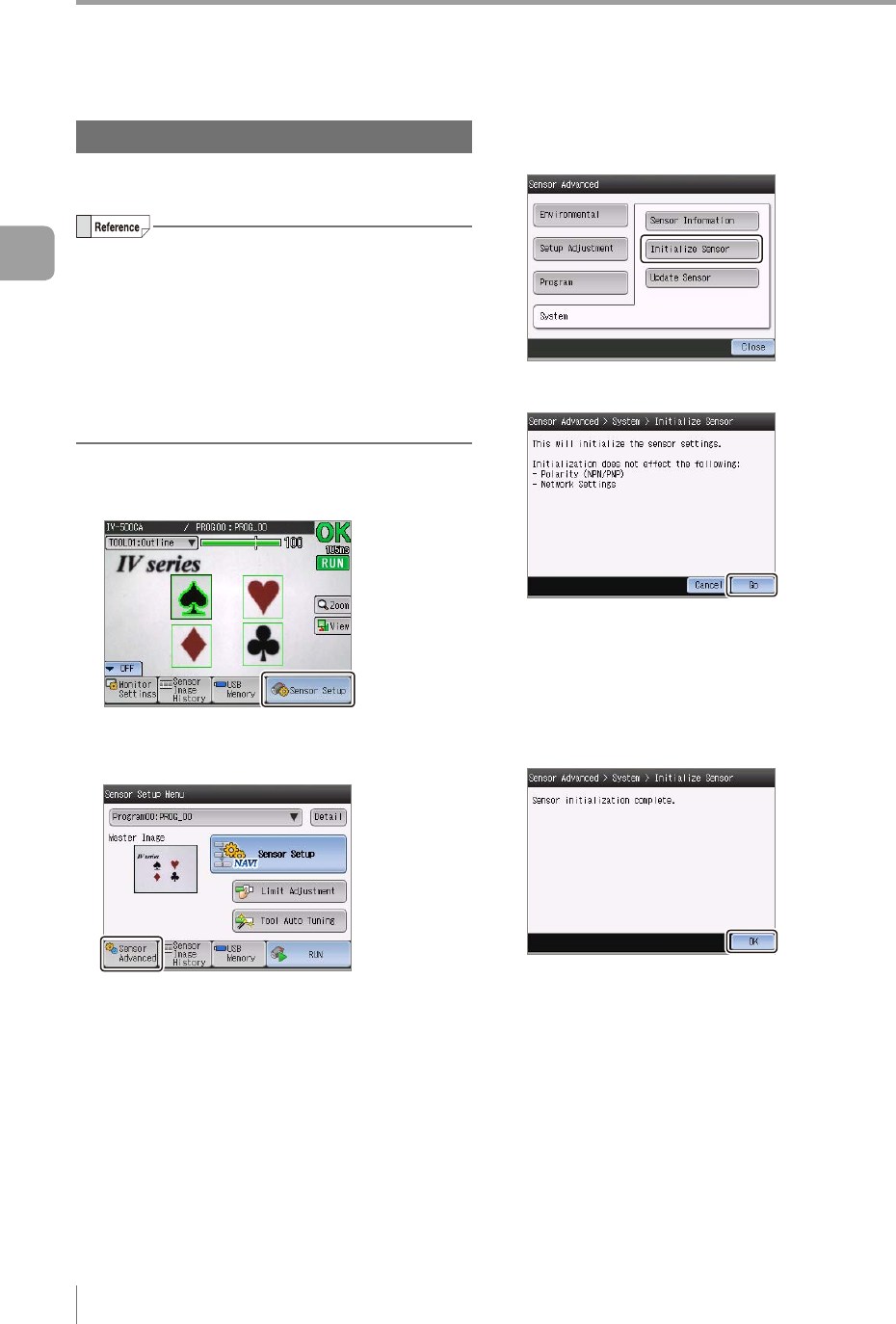

Setting to the Factory Default
Initializing the sensor
Initializes information set in the sensor and uses
factory default setting.
The following settings will not be initialized.
Polarity (Switching NPN/PNP)
(Page 6-28)
Network Settings (IP Address / Subnet Mask /
Default Gateway / Port number (TCP))
(Page 6-31)
To initialize the registered programs individually,
refer to “Initializing a program” (Page 6-13).
1
Set the menu display of the monitor to ON
and tap the [Sensor Setup] button.
The Sensor Setup Menu screen opens.
2
Tap the [Sensor Advanced] button.
The Sensor Advanced screen opens.
3
Tap the [System] button and then the
[Initialize Sensor] button.
4
Tap the [Go] button.
The conrmation dialog appears.
5
Tap the [OK] button.
Initialization begins. After initialization is completed,
the initialization completion screen opens.
6
Tap the [OK] button.
The system returns to the Sensor Advanced
screen.
Setting to the Factory Default
3
Basic Operation
