3-10
- IV Series User's Manual (Monitor) -

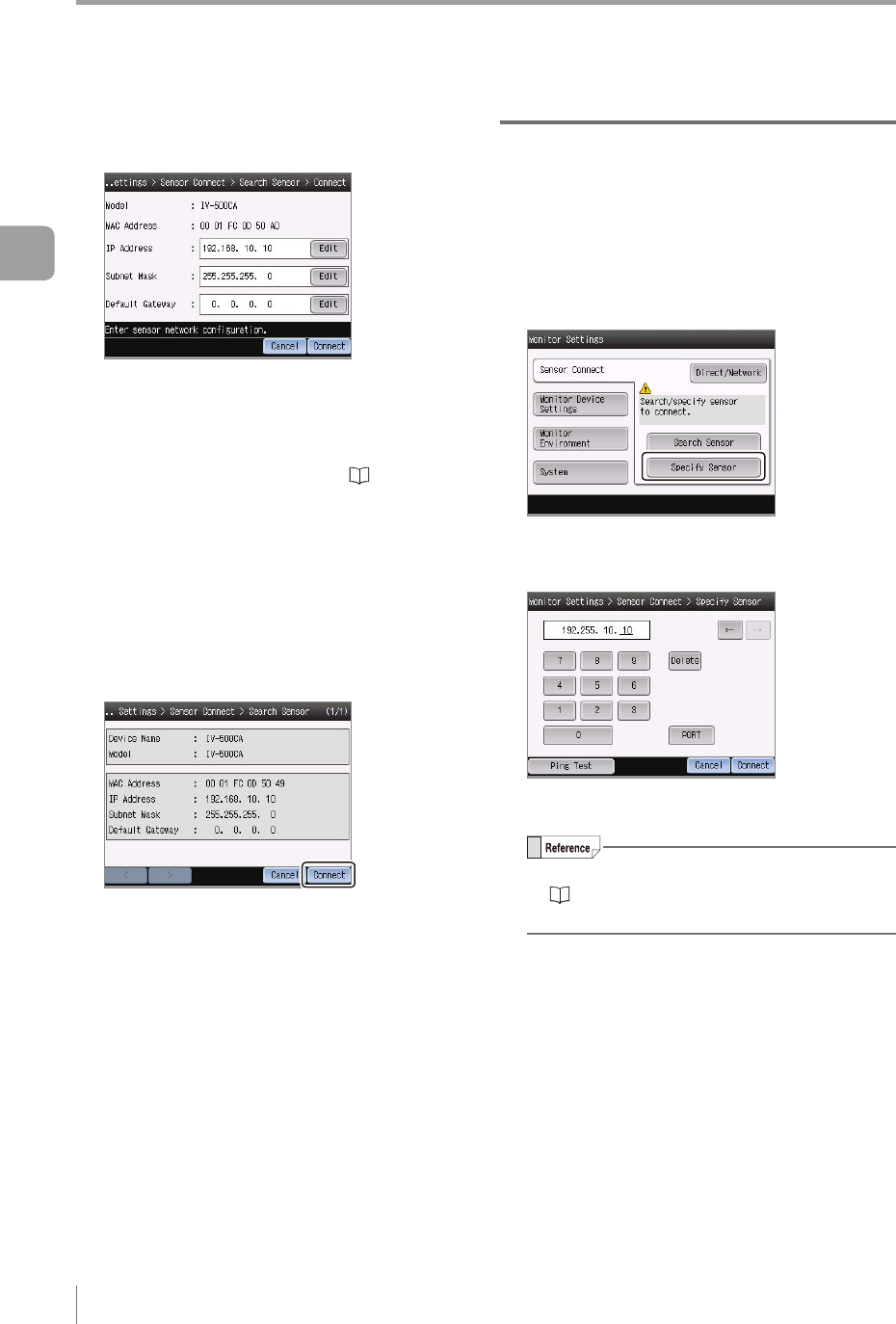

Operation when the Power is Turned on
The system returns to the network setup screen
for the sensor to be connected.
Tap the [Connect] button.
When the monitor is connected with the sensor
for the rst time, set the polarity of the sensor. For
the details of procedures, refer to “Operation
for initial startup of the sensor” (Page 3-11).
After the second time connecting with the sensor,
the run screen or the Sensor Setup Menu screen
opens.
When connecting to the sensor with set IP
address
Tap the [Connect] button.
The monitor connects to the selected sensor
and the run screen or the Sensor Setup Menu
screen opens.
Specifying sensor to be connected by
IP address
Used when the IP address of the sensor to be
connected is dened beforehand.
1
Turn on the power of the sensor.
2
Tap the [Specify Sensor] button.
3
Enter the IP address of the sensor to be
connected and tap the [Connect] button.
The run screen or the Sensor Setup Menu
screen opens.
If the monitor cannot connect with the sensor, refer
to “When the connection cannot be established
by specifying the sensor” (Page A-31).
3
Basic Operation
