Operation when the Power is Turned on
7

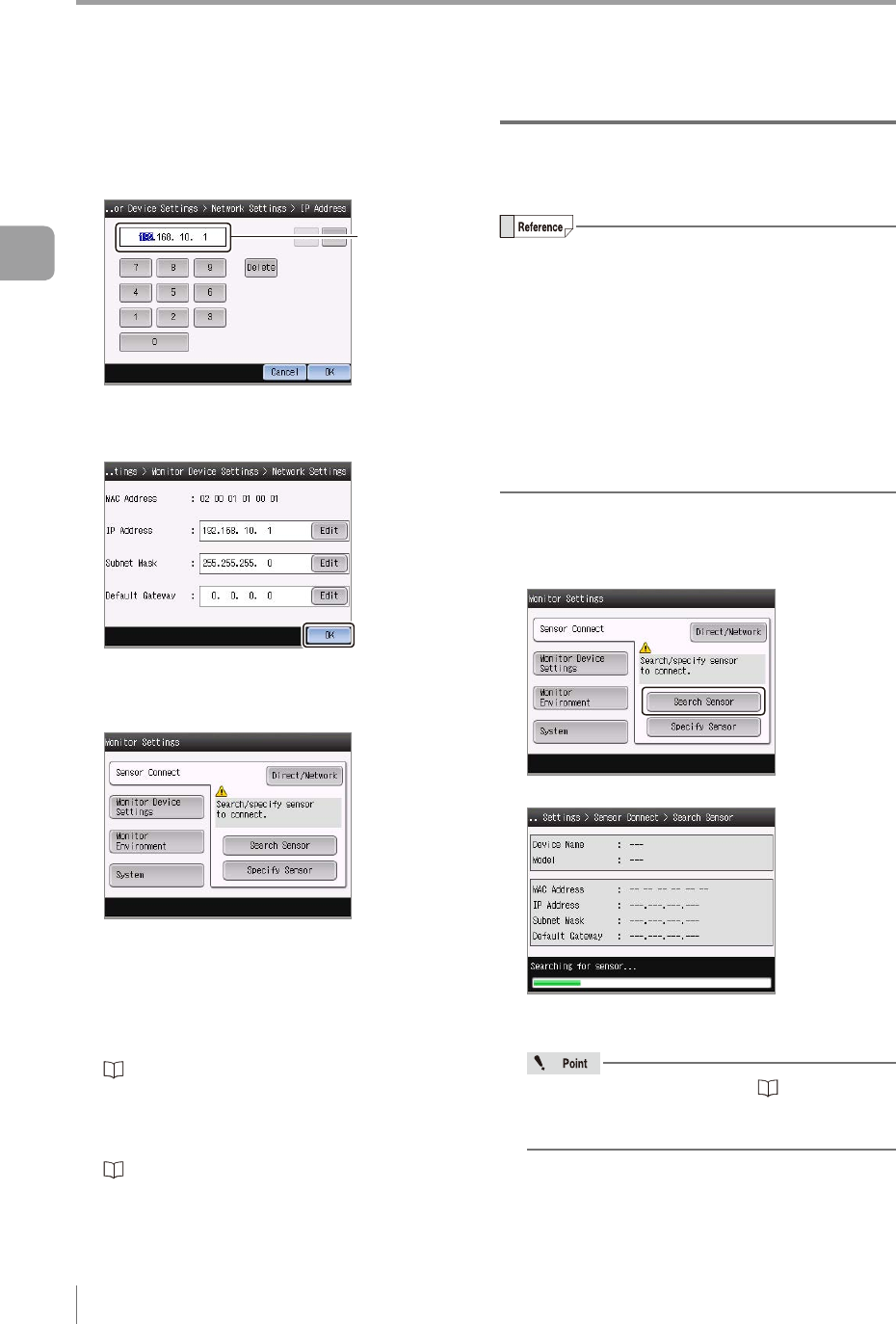

Set the IP Address, Subnet Mask, and
Default Gateway individually, and then tap
the [OK] button.
IP address
The system returns to the network setup screen.
8
Tap the [OK] button.
The monitor restarts.
After restarted, the Sensor Connect screen
opens.
There are two ways to set the sensor to be
connected. For details of procedures, refer to
each reference.
When the sensor on the network is
searched
“Searching for a sensor to be connected”
(Page 3-8)
When the sensor is specied by the IP
address
“Specifying sensor to be connected by IP
address” (Page 3-10)
Searching for a sensor to be connected
Automatically searches for a sensor on the network
and connects with it.
The search time is about 10 seconds.
Searching range and retrievable number of units
are as follows.
Sensor with no IP address (default) :
A maximum of 8 units can be retrieved within a
range that the BOOTP packet from the sensor
reaches (Page A-40).
Sensor with IP address :
A maximum of 16 units can be retrieved on
the local network to which the monitor is
connected.
1
Turn on the power of the sensor.
2
Tap the [Search Sensor] button.
Searching for sensor begins.
When the searching is nished, the searched
result will be displayed.
If no sensor is found, refer to “When the
connection cannot be established by searching
for the sensor” (Page A-30).
3
Basic Operation
