2-16
- IV Series User's Manual (Monitor) -

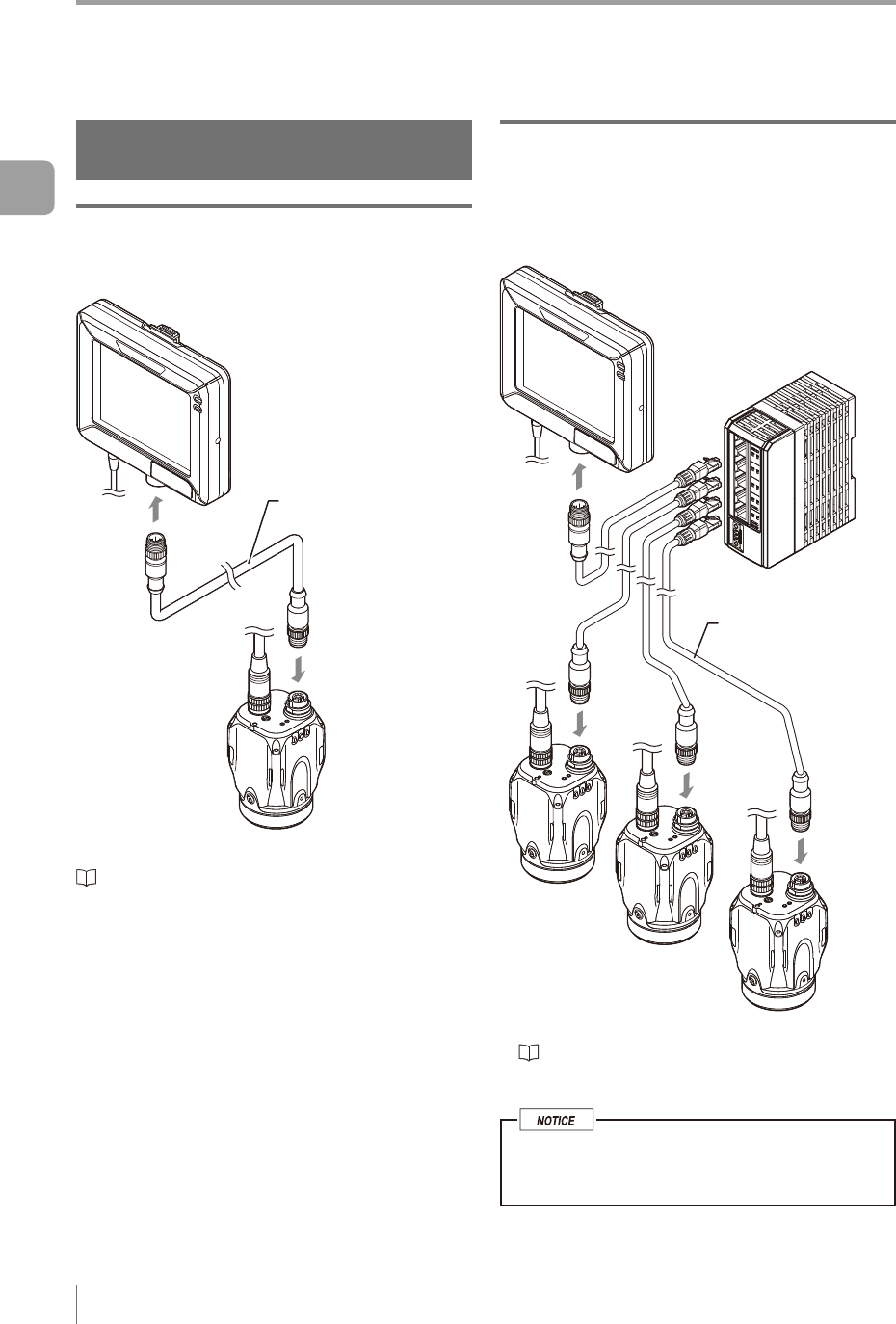

Cables
Connecting the sensor and the
monitor
Connecting directly
Connect the sensor and monitor using the monitor
cable.
Monitor cable
(2m/5m/10m/20m)
For details on connecting the monitor cable, refer to
“Connecting the monitor cable/Ethernet cable”
(Page 2-17).
Connecting via network
Connect each Ethernet cable to the monitor and
sensor.
Connect the other side of the Ethernet cable to the
Ethernet switch.
Ethernet cable
(2m/5m/10m)
Ethernet switch
For details on connecting the Ethernet cable, refer
to
“Connecting the monitor cable/Ethernet cable”
(Page 2-17).
The sensor and monitor do not support PoE
(Power over Ethernet). Supply power using
the power cable.
