2-15
- IV Series User's Manual (Monitor) -
Cables

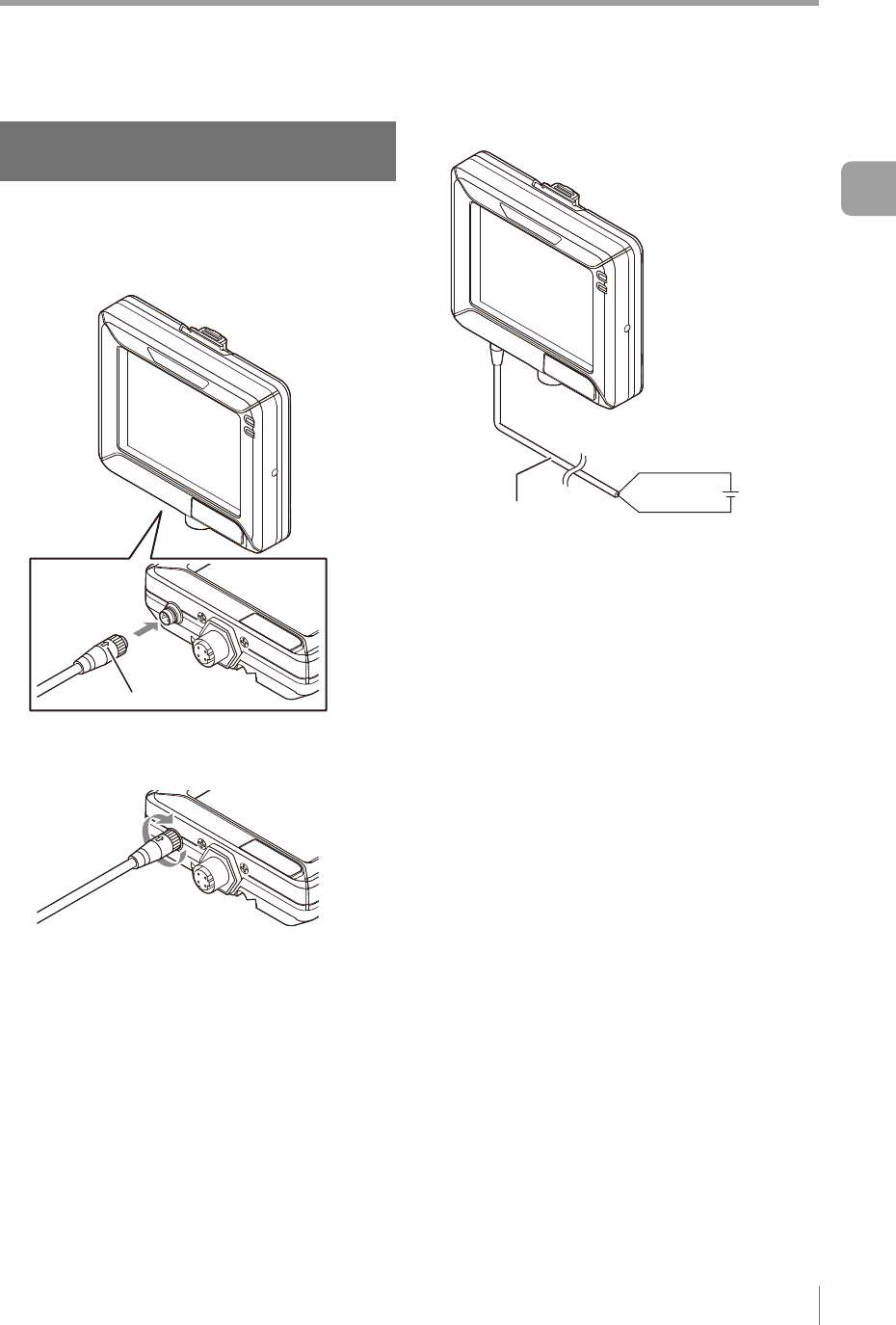

Connecting the power cable of
the monitor
1
Align the arrow mark of the power cable
and the direction of the front monitor, and
connect the cable to the monitor.
Arrow mark
2
Turn the screw-on connector in the
clockwise direction to tighten it.
3
Wire to the power supply.
Monitor power cable
(2m/5m/10m)
Blue (0V)
Brown (DC24V)
DC24V
Cable specication Brown/Blue : AWG24
2
Installation and Connection
