2-10
- IV Series User's Manual (Monitor) -

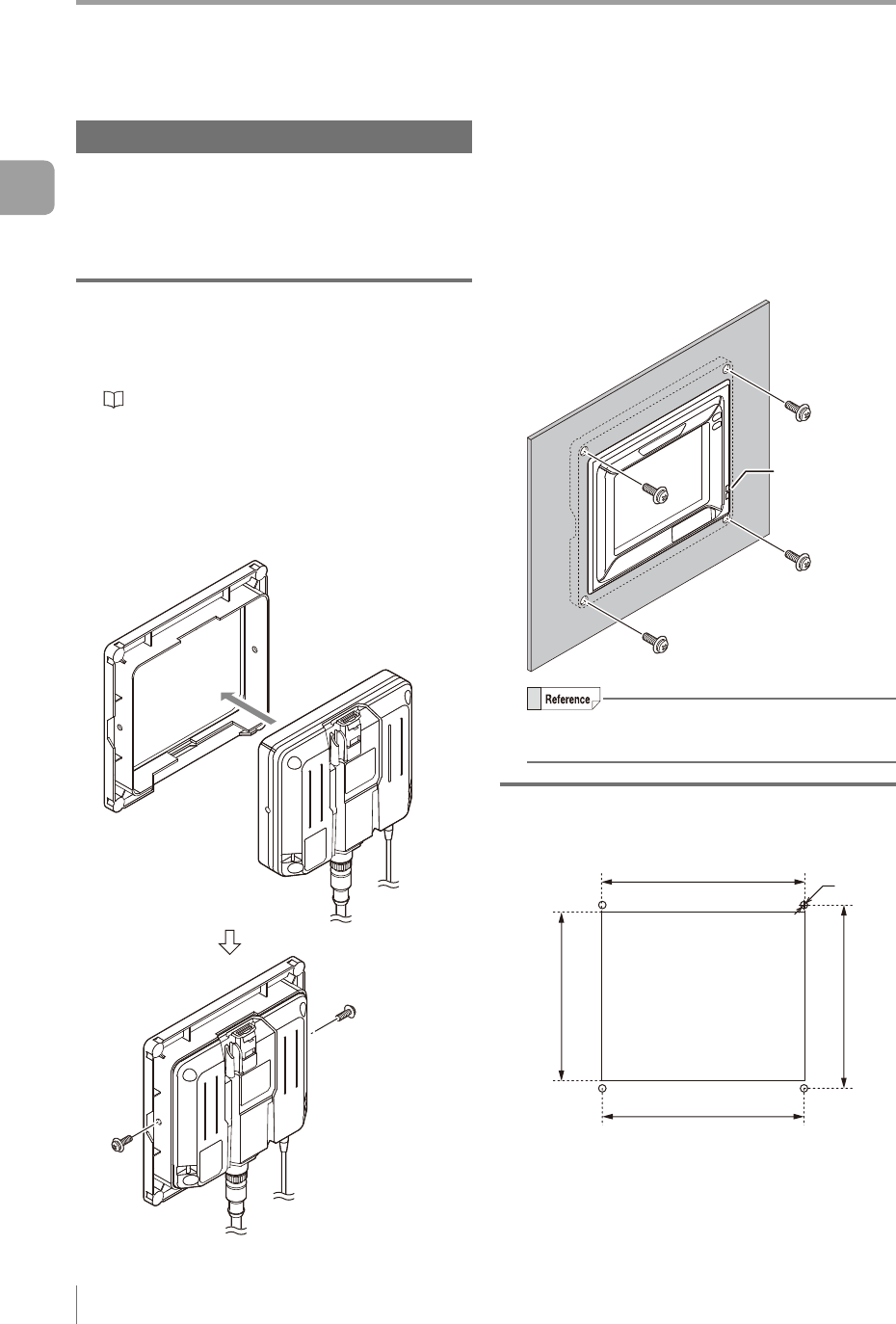

Mounting the Monitor
Mounting to a panel
Operate the monitor by mounting it to the panel
side such as a control board.
Mount the panel adapter (OP-87465) to the monitor,
and mount it to the panel.
Mounting to a panel
1
Connect the power cable and monitor
cable to the monitor.
“Cables” (Page 2-12)
2
Mount the panel adapter to the monitor
and x it with the attached screws.
Screw : M3, 11 mm long, with 2 washers
Use the attached screws.
Tightening torque : 0.27 to 0.33 N·m
3
Mount the monitor with the panel adapter
mounted to the control board from the
rear side, and x it with the screws.
Mountable board thickness : 1 to 4 mm
Screw : M3, 7 mm long, with 4 washers
Use the attached screws.
Tightening torque : 0.5 N·m or lower
Strap holder
Stylus can be hung from the strap holder using
the hanging string (accessory).
Panel cutting dimension
4-φ
3.5
100
110
111
+1
-0
92
+1
-0
(Circular hole position for screw)
(Panel cutting square hole dimension)
(Circular hole position for screw)
(Panel cutting square hole dimension)
2
Installation and Connection
