Mounting the Sensor

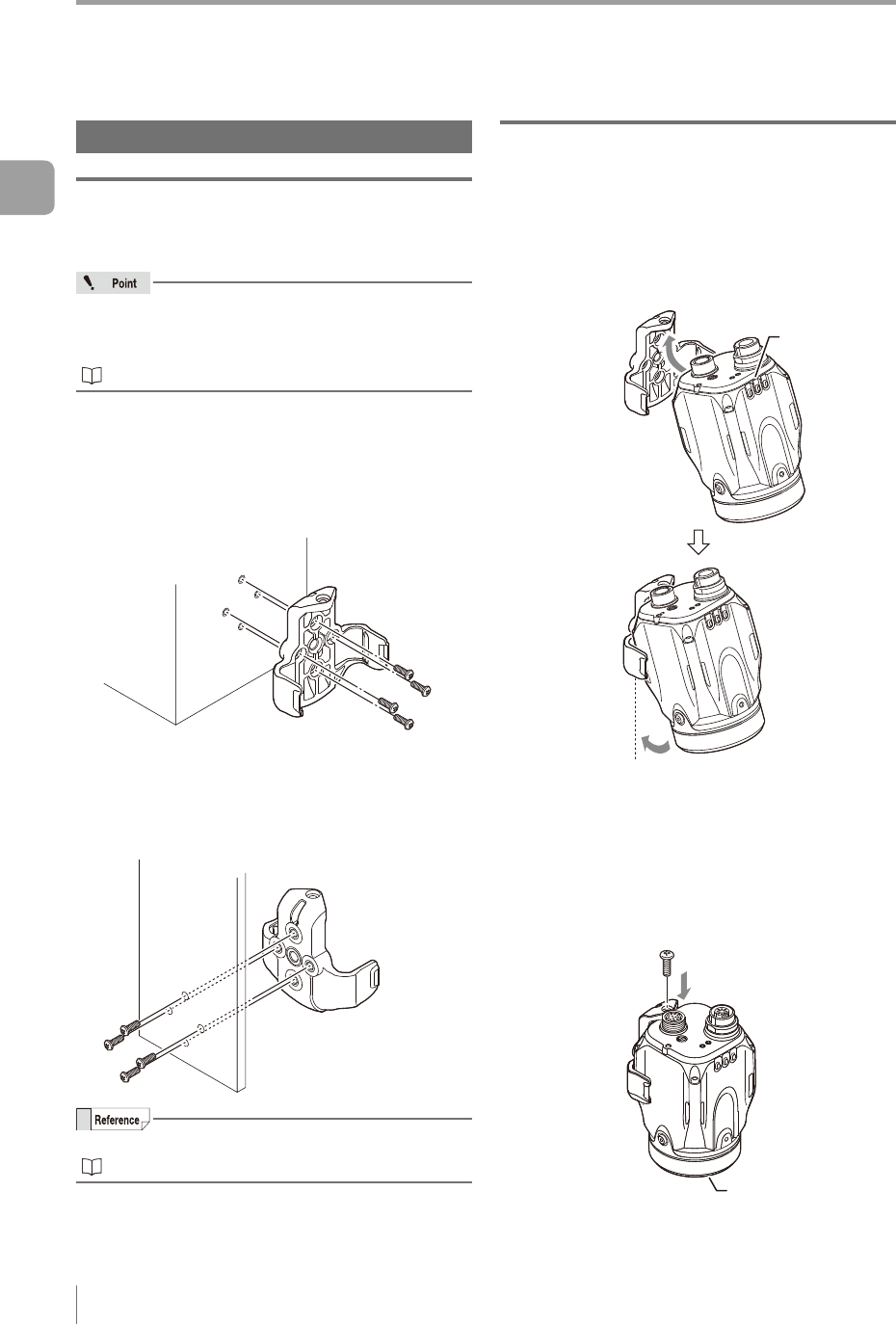

Mounting the sensor
Mounting the mounting adapter
Use the mounting adapter (accessory or OP-87460)
to mount the sensor.
The mounting adapter is mounted with the sensors
in the default factory setting. Remove it from the
sensor.
“Unmounting the sensor” (Page 2-5)
Mounting on the wall
Screw : M3 x 4
Use the commercially available screws which
have head thickness of 3 mm or lower.
Tightening torque : 1.0 N·m or lower
Mounting from the jig side
Screw : M4 x 4
Use the commercially available screws.
Tightening torque : 1.5 N·m or lower
For details on mounting hole dimensions, refer to
“Dimensions” (Page 8-6).
Mounting the sensor onto the mounting
adapter
1
Mount the sensor to the left and right
stopper on the mounting adapter.
Sensors cannot be mounted on the side with the
indicator light.
Push the sensor to the
stopper of the xing screw
Push until you hear the clicking sound from
the both side stoppers
Indicator light
2
Fix the mounting adapter and sensor
using the attached screws.
Screw : M3 x 1
Use the attached screws.
Tightening torque : 0.45 to 0.55 N·m
Remove the
protection sheet
2
