Mounting the Sensor

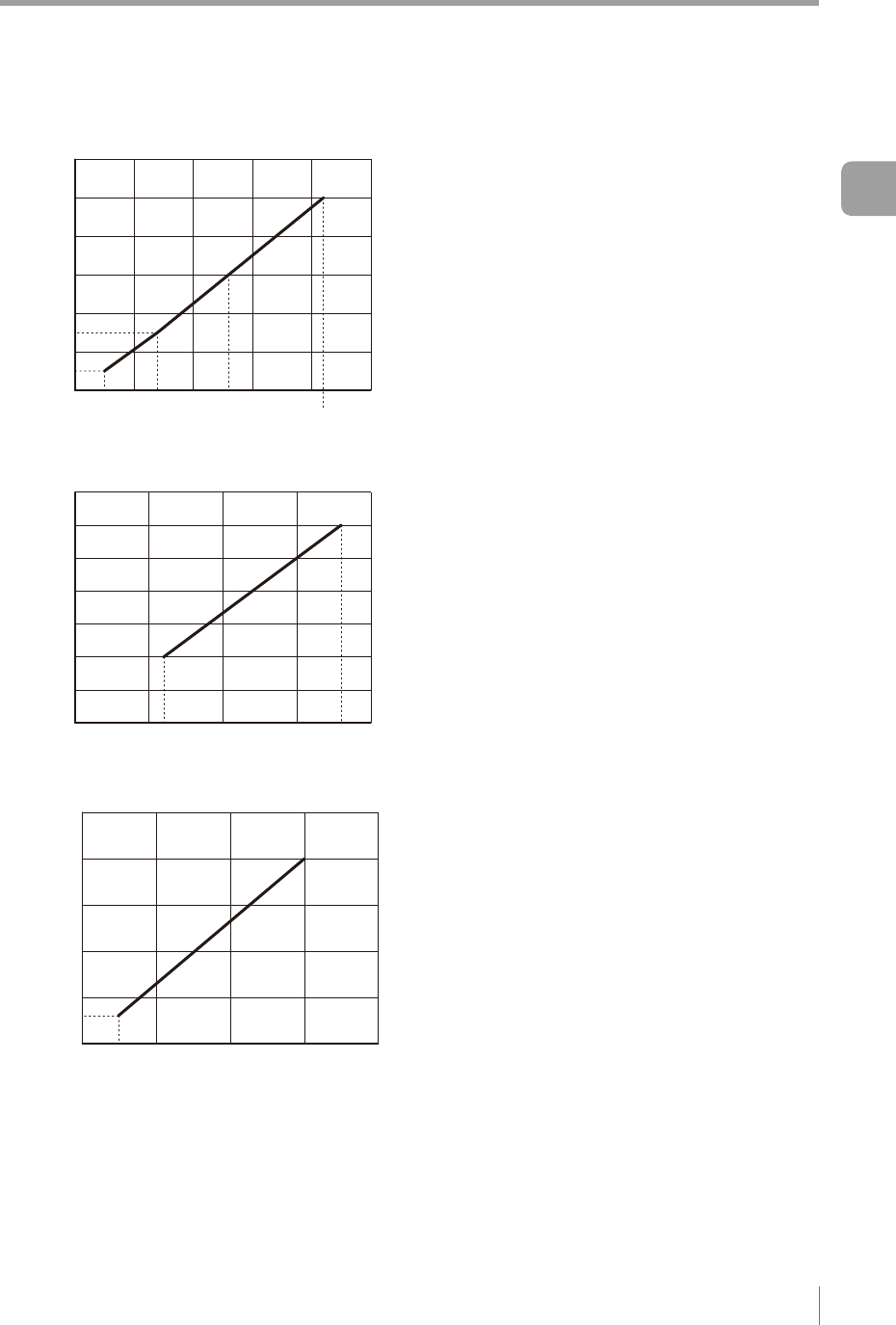

Standard range type (color/monochrome)
View H (mm)
Installed distance WD (mm)
100
50
0
200
150
300
400
500
600
5025 70 100 150130 200
250
210
Short range type
50
0
100
150
10 20 30 4012 36
View H (mm)
Installed distance WD (mm)
Long range type
View H (mm)
Installed distance WD (mm)
500
300
0
1500
1000
2000
2500
10045 200 300 400
The value of View H and V will be a half of the
value on the gures above when using the digital
zooming function (monochrome type only).
