A-33
- IV Series User's Manual (Monitor) -
A

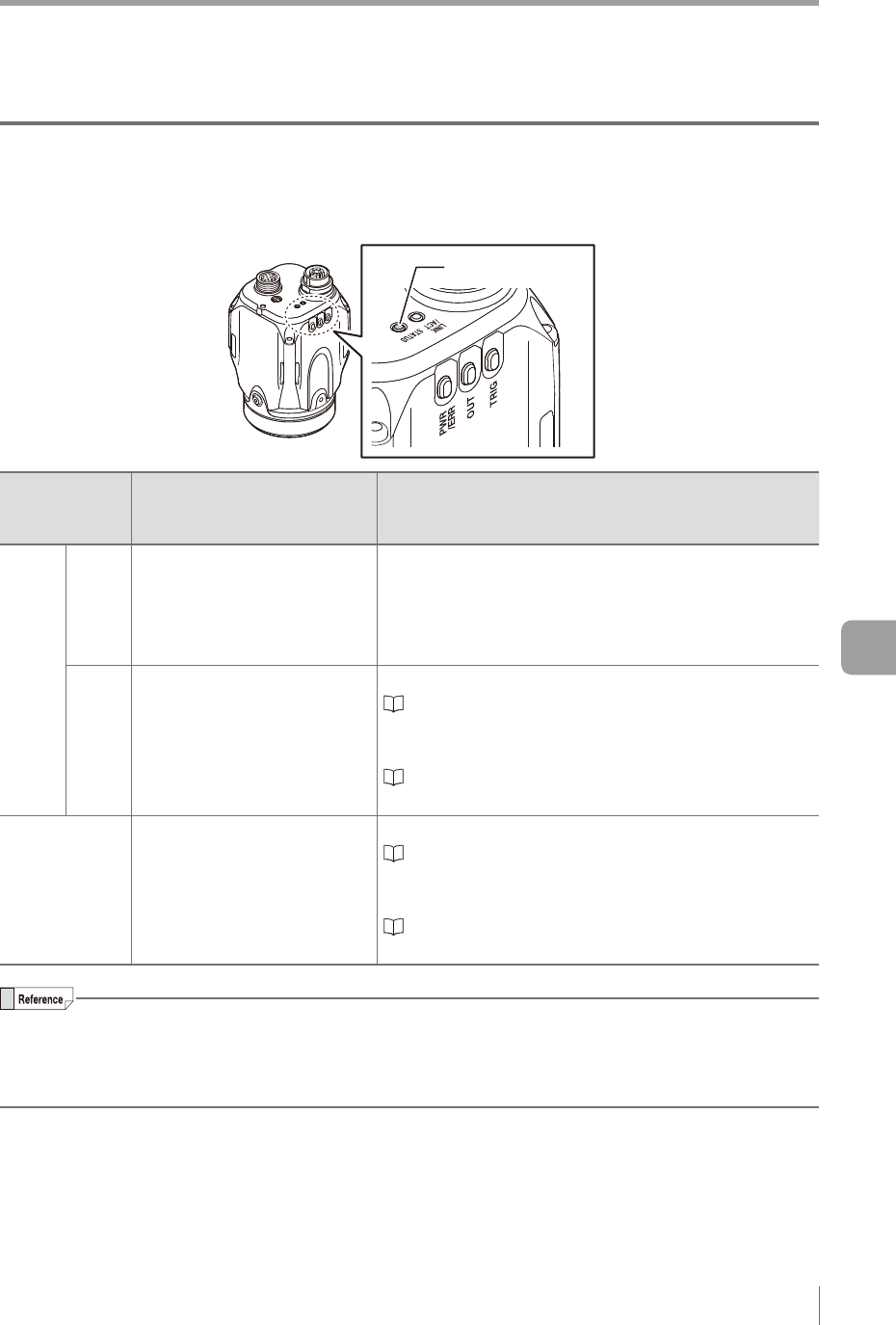

Remedy when the Monitor cannot be Connected with the Sensor
STATUS indicator light
Indicates the connection status within the monitor.
Conrm that the LINK/ACT indicator light is green (lighting) or green (blinking) and then check the STATUS
indicator light.
STATUS indicator
light
Status of
the STATUS
indicator light
Status Remedy
Green
ON
Correct connection with the
monitor.
The connection with the
monitor has been established
by acquiring the IP address.
-
Blink
No correct connection with the
monitor.
The IP address of the sensor
has been acquired, but
connection with the monitor
has not been established.
For direct connection
“Remedy when direct connection is unavailable”
(Page A-28)
For network connection
“Remedy when connection via a network is unavailable”
(Page A-29)
OFF
No correct connection with the
monitor.
The IP address of the sensor
has not been acquired.
For direct connection
“Remedy when direct connection is unavailable”
(Page A-28)
For network connection
“Remedy when connection via a network is unavailable”
(Page A-29)
The communication timeout time is 1 minute.
During the timeout interval after trouble has occurred, the monitor screen may fail to be updated while
the STATUS indicator light turned on, or the monitor may not accept an operation.
During the timeout interval, devices other than the previously connected monitor cannot be connected.
