Remedy when the Monitor cannot be Connected with the Sensor
Remedy when connection via a network is unavailable

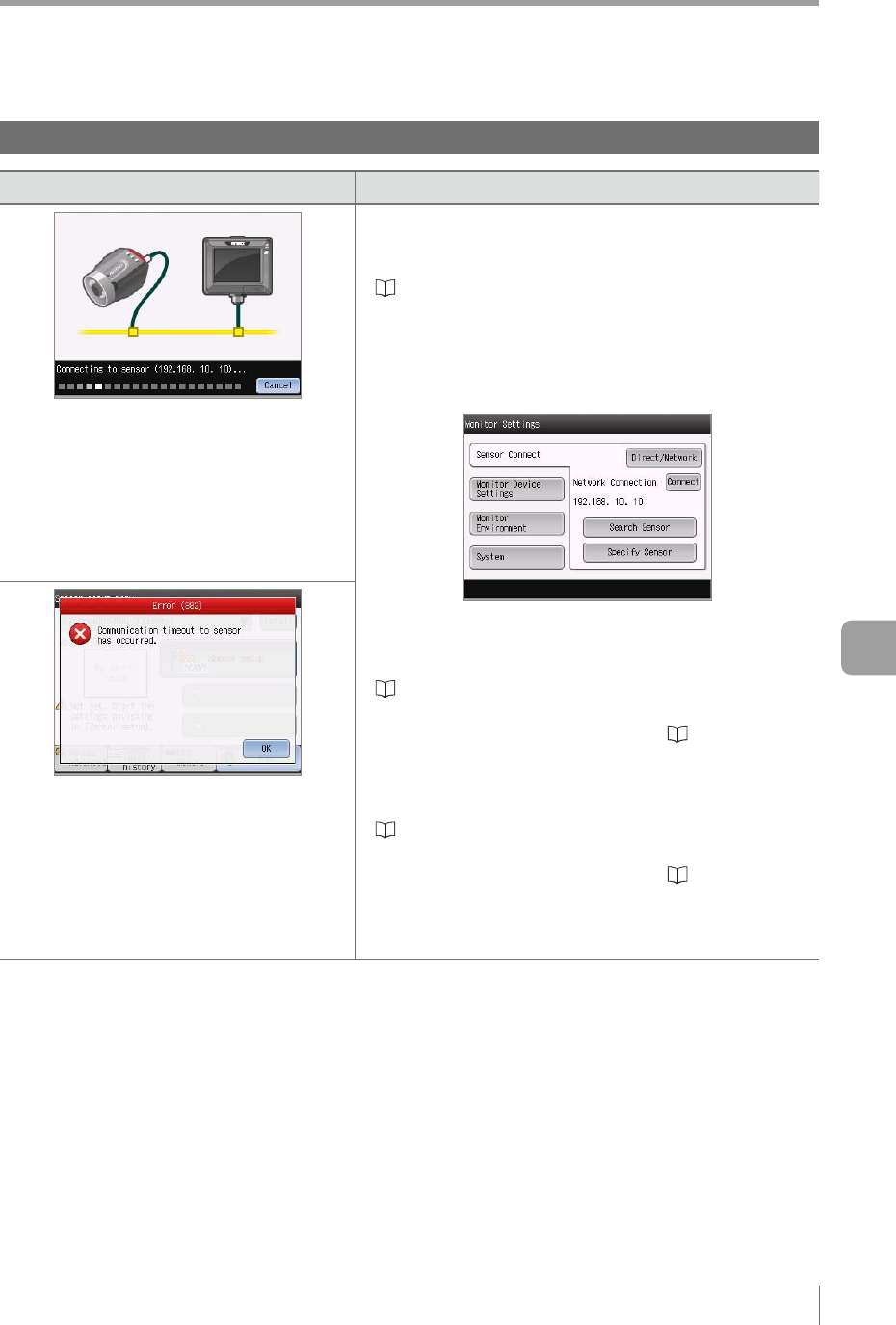

Status Remedy
Retries occur repeatedly because
connection is not possible after the power is
turned on.
Supply power to the sensor and the network equipment.
Correctly connect with the sensor and the network
equipment.
“Connecting via network” (Page 2-16)
After a correct connection is established as a result of
retry, the run screen opens automatically.
The Sensor Connect screen opens when the [Cancel]
button or [OK] button is tapped.
Tap the [Connect] button after a correct connection has
established.
Tap the [Search Sensor] button to search for the sensor.
“Searching for and connecting to sensors on the
network” (Page 6-47)
If a connection is unavailable, refer to “When the
connection cannot be established by searching for the
sensor” (Page A-30).
Tap the [Specify Sensor] button to connect the sensor.
“Specifying the IP address of and connecting to the
sensor” (Page 6-48)
If a connection is unavailable, refer to “When the
connection cannot be established by specifying the
sensor” (Page A-31).
An error (381) "Data transfer to sensor
fails." may also be displayed.
Connection became impossible after
connection was established once.
