Importing the Status Output
Importing the individual status output of each detection tool / logic

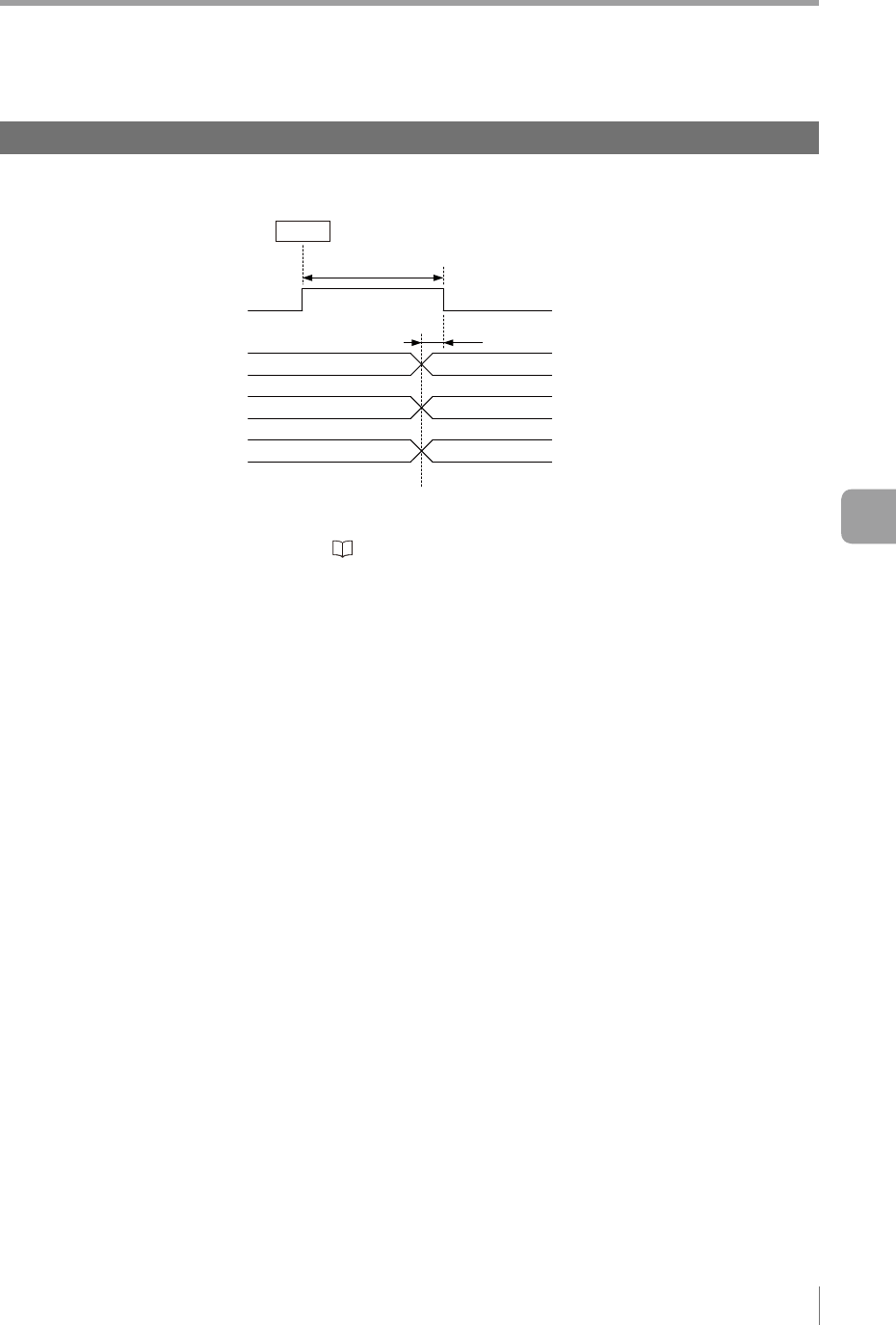

The individual status result of the detection tool and position adjustment for the examined target can be checked.
Orange line: OUT 4
Assign "Logic 1"
Gray line: OUT 3
Assign "Tool 2"
White line: OUT 2
Assign "Tool 1"
Black line: OUT 1
Assign the BUSY output
Trigger input
Previous result Status result of Tool 1
Previous result Status result of Tool 2
Previous result Status result of Logic 1
Processing time
Min 0.2 ms
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Trigger 1
The operation example when the output mode (Page 6-27) of status output is set to [Latching]. When the
output mode is set to [One-Shot], refer to “Changing the timing of the status output” (Page 7-6).
This is an example when the status results of Tool 1, Tool 2, and Logic 1 are to be checked individually.
The status output turns ON when the status result of each tool/logic was OK. Turns OFF when the result
was NG or --.
The ON status of each output is as follows.
When Output Settings (Page 6-27) are [N.O.] : Status with NPN or PNP open collector ON.
When Output Settings (Page 6-27) are [N.C.] : Status with NPN or PNP open collector OFF.
The status result will be kept until the next status result output. However, the output function turns OFF
when the program number is switched or external master image is registered.
