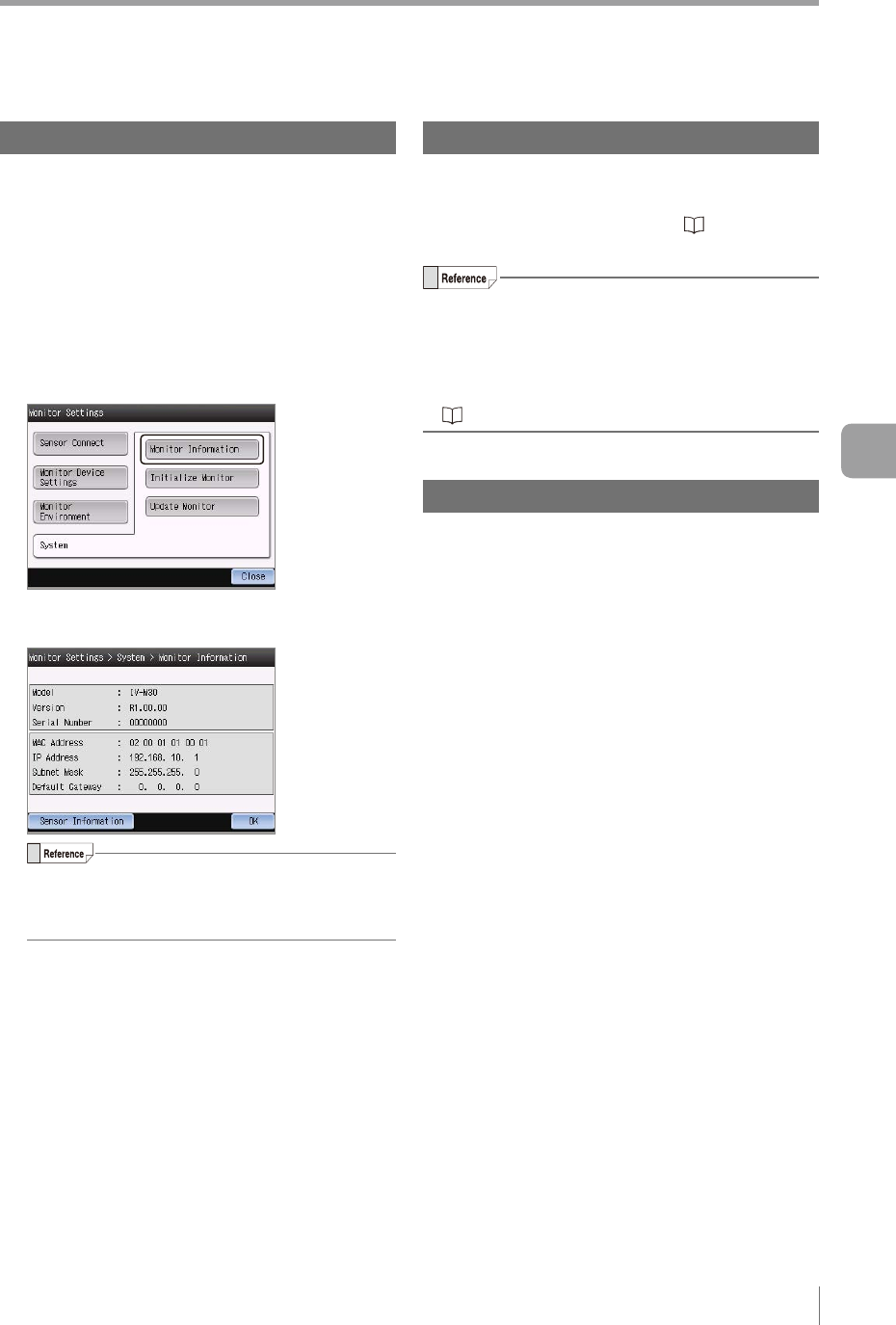

Setting the Advanced Monitor Information
Monitor Information
Displays the information set in the monitor.
Displays the model, version, serial number, MAC
address, and IP address.
1
Tap the [Monitor Settings] button with the
state that the menu display of the monitor
is set to ON.
2
Tap the [System] button and then the
[Monitor Information] button.
The information set in the monitor will be
displayed.
The sensor information (Page 6-43) can be
conrmed by tapping the [Sensor Information]
button at the lower left of the screen.
3
After the information is conrmed, tap the
[OK] button.
The system returns to the Monitor Settings
screen.
Initialize Monitor
Initializes the information set in the monitor and set
to the factory default.
For details of procedures, refer to “Initializing the
monitor” (Page 3-13).
The following settings will not be initialized.
“Language” (Page 6-51)
“Time” (Page 6-51)
Use the "Initialize Sensor" function to initialize
the information set in the sensor.
“Initializing the sensor” (Page 3-12)
Update Monitor
Updates the operation software of the monitor.
For details, refer to KEYENCE homepage.
URL : http://www.keyence.com/
