6-50
- IV Series User's Manual (Monitor) -

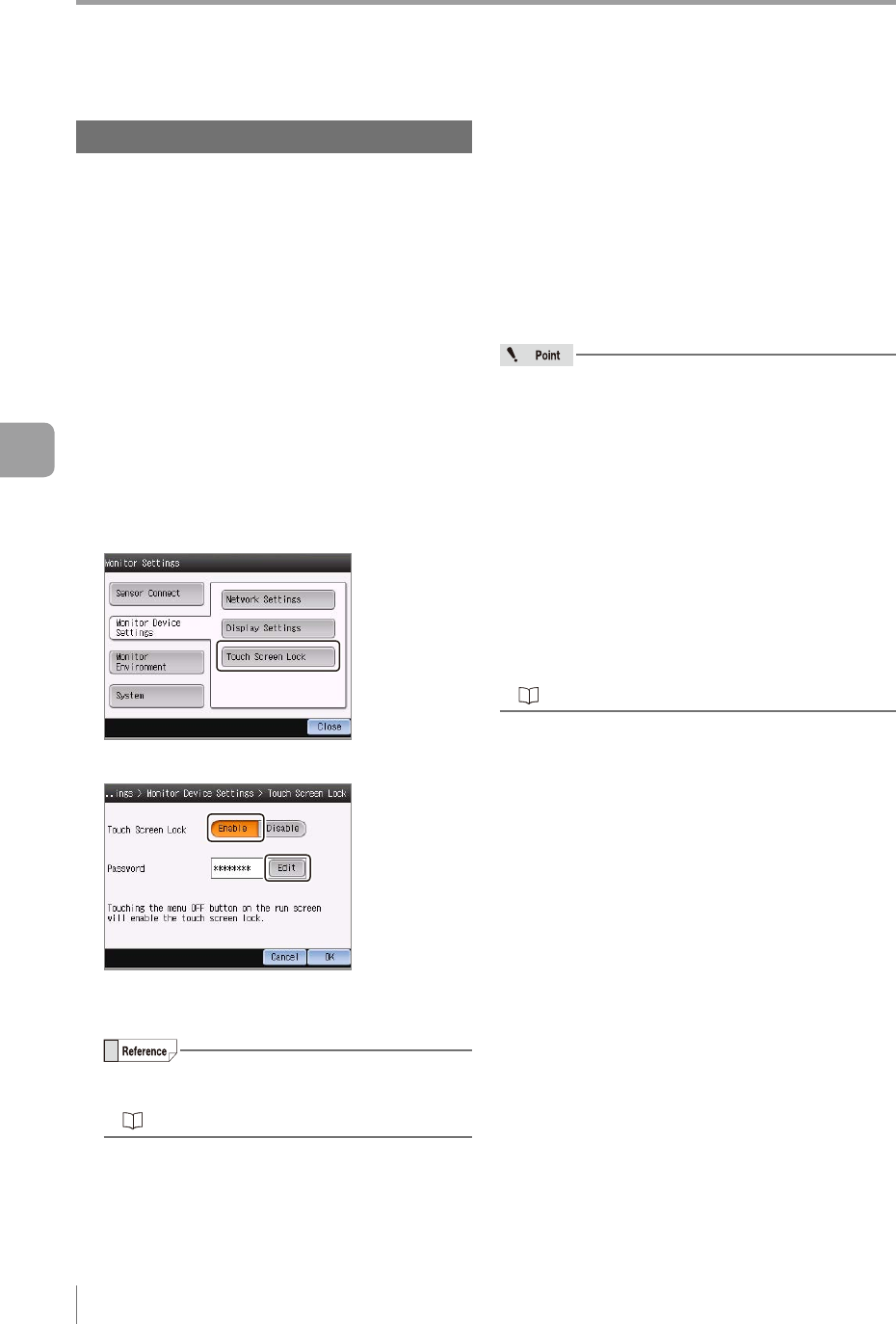

Setting the Advanced Monitor Information
Touch Screen Lock
Sets the password on the monitor to prevent
misoperation of the touch panel.
To enable the touch screen lock, turn the screen to
the menu OFF screen on the run screen (Page 5-4).
To disable it, tap the [Menu] button and input the
password.
During the touch screen lock, operations other
than the tool selection and image capture are
locked.
1
Tap the [Monitor Settings] button with the
state that the menu display of the monitor
is set to ON.
2
Tap the [Monitor Device Settings] button
and then the [Touch Screen Lock] button.
3
Select [Enable] and tap the [Edit] button.
4
Set the arbitrary password in the
password settings screen.
Default: None (blank)
For details of how to enter characters, refer to
“Inputting characters” (Page 3-16).
5
Tap the [OK] button.
The password conrmation dialog appears.
6
Enter the password set in step 4 and tap
the [OK] button.
The system returns to the Touch Screen Lock
screen.
7
Tap the [OK] button.
The system returns to the Monitor Settings
screen.
For efciently using the touch screen lock and
password lock (Page 6-30),
The touch screen lock function locks the touch
screen operation of the monitor to prevent
misoperations of the monitor and the sensor
connected to the monitor.
The password lock function locks the sensor
settings. It does not lock the operations and
settings of the monitor.
To lock editing the sensor settings with multiple
monitors or the IV-Navigator (IV-H1), use the
password lock function. It cannot protect from
the misoperations by the monitor or IV-Navigator
(IV-H1) that the touch screen lock is not applied.
“Password Lock” (Page 6-30)
