Setting the Extended Functions of the Sensor
Field Network
Communicates with a PLC via a eld network and the status result, etc., can be input to the PLC as
communication data.
For the communication protocol, EtherNet/IP and PROFINET can be selected.
Host device such as PLC
(EtherNet/IP, PROFINET master unit)
EtherNet/IP, PROFINET adapter
Sensor
To use the eld network function, select [Network Connection] for the connection setting of the sensor.
During the direct connection, the setting item is shaded and cannot be selected.
When the protocol setting has been changed, the connection is terminated and the sensor restarts.
For the details of the eld network function, refer to “IV Series User’s Manual (Field Network)”.

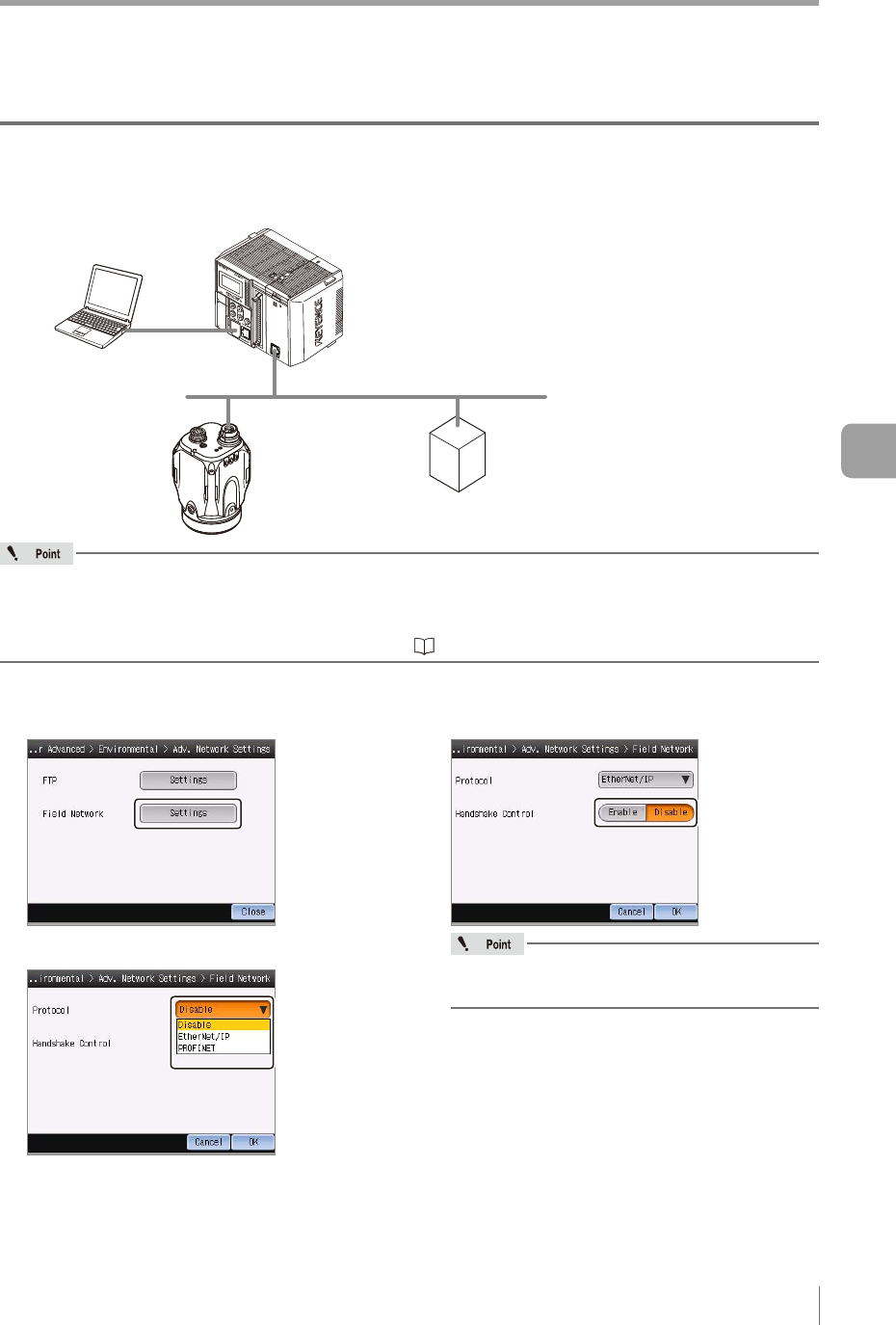

1
Tap the [Settings] button in the “Field
Network”.
2
Select the protocol.
3
To enable the handshake control, select
[Enable].
When the protocol is set as [Disable], this
setting item is shaded and cannot be selected.
4
After the setting is completed, tap the [OK]
button.
The system returns to the Adv. Network Settings
screen.
