6-30
- IV Series User's Manual (Monitor) -
Setting the Extended Functions of the Sensor
Password Lock
Sets the password to the sensor to prevent the
incorrect operation.
Correctly use the password lock of the sensor and
the touch screen lock of the monitor (Page 6-50).
To enable the password lock, open the run screen.
To disable, input the password when the input
dialog for the password to disable appears.
During the password lock, editing the Sensor
Setup is locked ([Sensor Setup] button/[Trig]
button on the run screen, threshold adjustment,
image history view (if unable to log in), clearing
the image history, Transfer Program Settings).
If the password lock is temporarily cancelled in
the menu ON screen (Page 5-4), the lock is
cancelled until the system turns to the menu OFF
screen (Page 5-4).
1

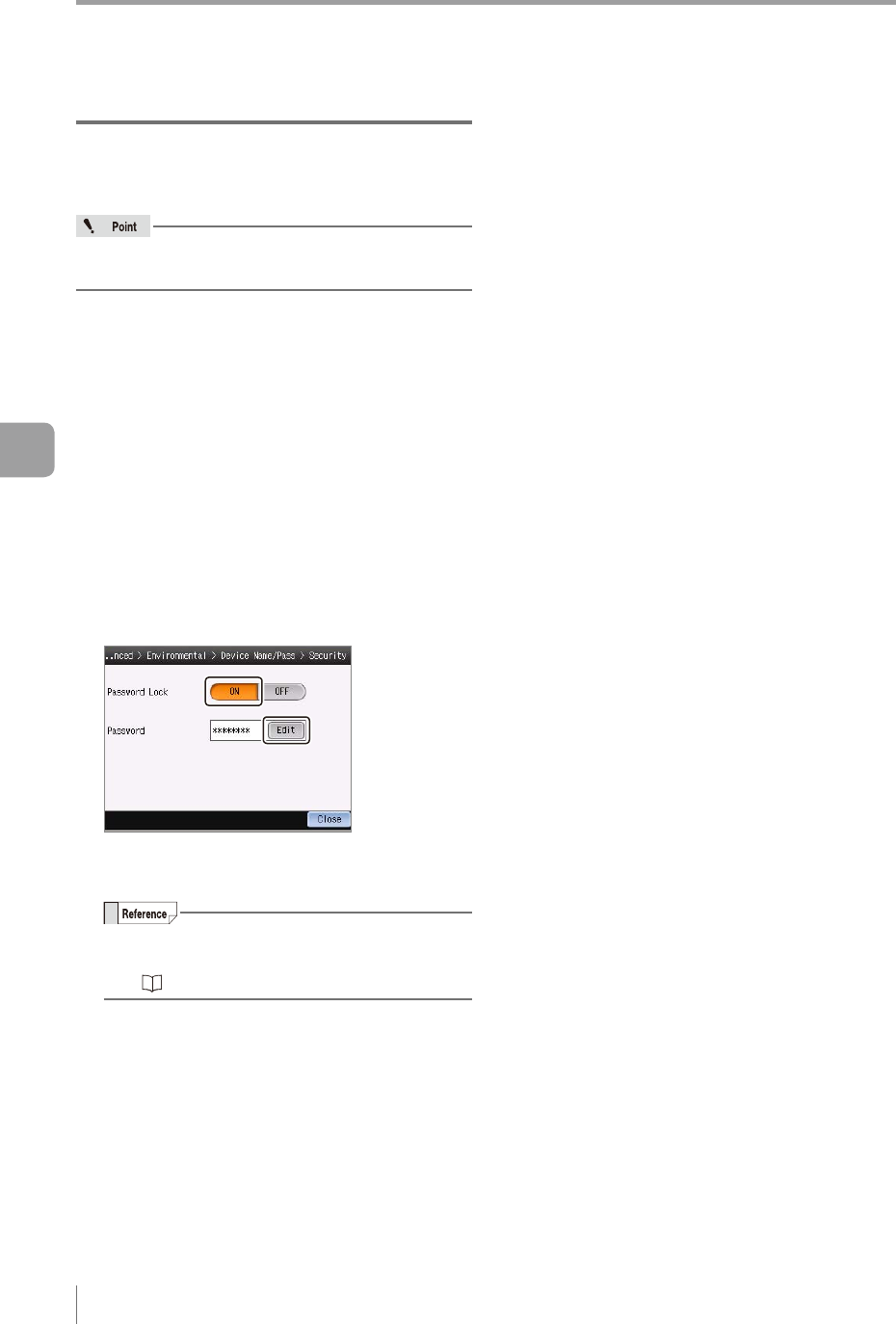

Tap the [Settings] button under Security.
2
Select [ON] and tap the [Edit] button.
3
Set a desired password in the password
settings screen.
Default: None (blank)
For details of how to enter characters, refer
to “Inputting characters” (Page 3-16).
4
Tap the [OK] button.
The password conrmation dialog appears.
5
Enter the password set in step 3 and tap
the [OK] button.
The system returns to the Security screen.
6
Tap the [Close] button.
The password will be changed and the system
returns to the Device Name/Pass screen.
6
Useful Features/Various Functions
