- IV Series User's Manual (Monitor) -

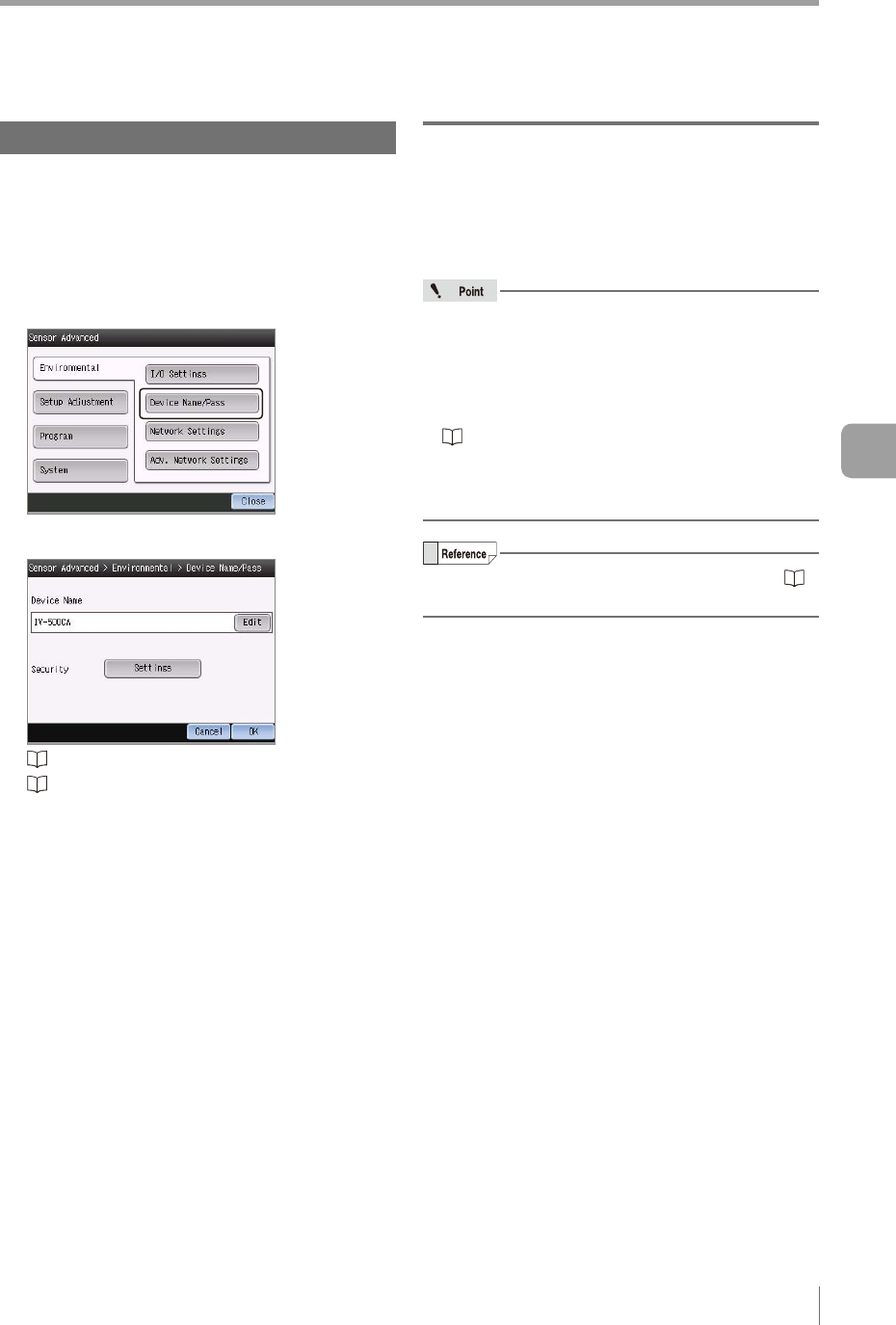

Setting the Extended Functions of the Sensor
Device settings
Sets the sensor name and password lock.
1
Tap the [Sensor Advanced] button in the
Sensor Setup Menu screen.
2
Tap the [Environmental] button, and then
the [Device Name/Pass] button.
3
Set the device settings of the sensor.
“Device Name” (Page 6-29)
“Password Lock” (Page 6-30)
4
After the setting is completed, tap the [OK]
button.
The system returns to the Sensor Advanced screen.
Device Name
The sensor can be arbitrary named and controlled.
When the [Edit] button is tapped, the dialog to enter
a device name opens.
Enter the arbitrary name and tap the [OK] button.
If the display language (Page 6-51) is changed,
the device name might be replaced and
displayed as hyphens (-).
To use the PROFINET function, use only “a - z”,
“0-9”, “-”, and “.”. For the setting details, refer to
“IV Series User’s Manual (Field Network)”.
When you changed the device name while the
PROFINET communication is being used, the
sensor restarts.
For details of how to enter characters, refer to
“Inputting characters” (Page 3-16).
6
Useful Features/Various Functions
