6-26
- IV Series User's Manual (Monitor) -

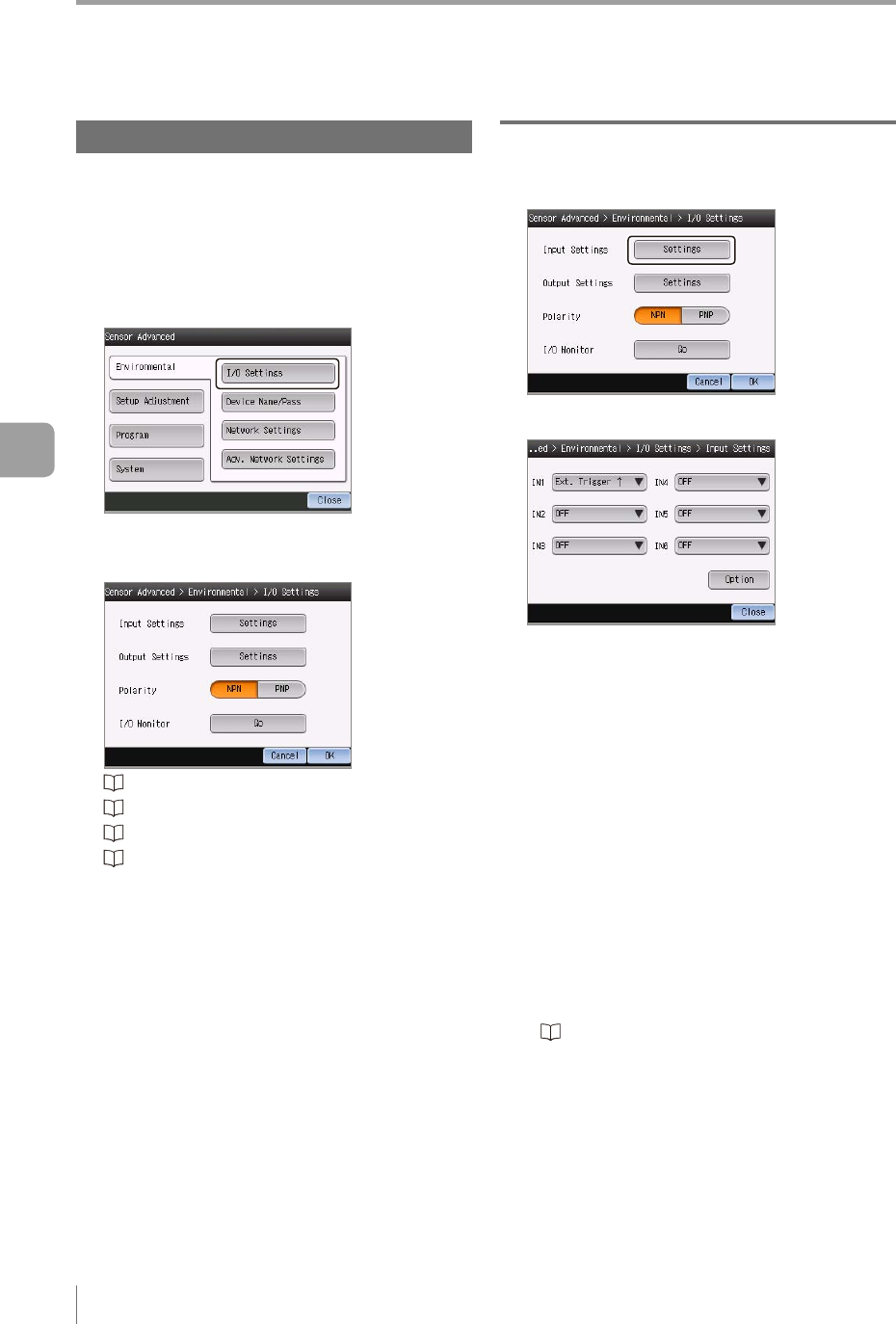

Setting the Extended Functions of the Sensor
I/O Settings
Sets the input/output settings for the sensor.
1
Tap the [Sensor Advanced] button in the
Sensor Setup Menu screen.
2
Tap the [Environmental] button and then
the [I/O Settings] button.
3
Set the input/output settings for the
sensor.
“Input Settings” (Page 6-26)
“Output Settings” (Page 6-27)
“Polarity” (Page 6-28)
“I/O Monitor” (Page 6-28)
4
After the setting is completed, tap the [OK]
button.
The system returns to the Sensor Advanced screen.
Input Settings
1
Tap the [Settings] button of the input settings.
2
Set the input settings for the sensor.
IN1
Sets the detection timing of the trigger input for
IN1 input line.
Ext. Trigger ↑
Sets the trigger input to the rising edge of the
external trigger.
Ext. Trigger ↓
Sets the trigger input to the falling edge of the
external trigger.
IN2 to IN6
Sets the roles for input line IN2 to IN6.
OFF
Ignores the input.
Program bit0 to bit4
Species the number for switching the programs.
“Changeover for a Target (Program Functions)”
(Page 6-8)
Clear Error
Sets the error output clearance.
Ext. Master Save
Sets the master image registration from the
external input.
6
Useful Features/Various Functions
