6-19
- IV Series User's Manual (Monitor) -

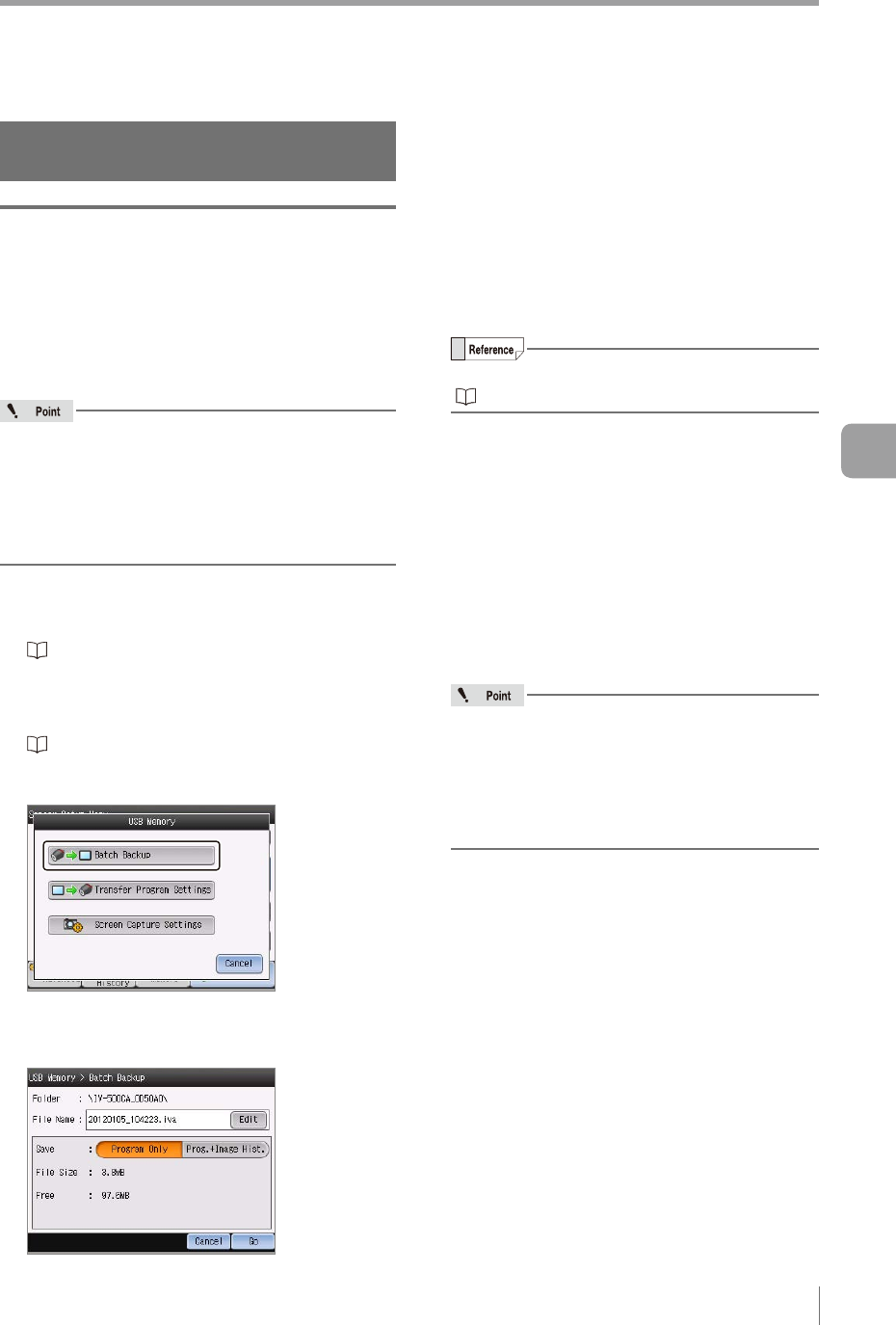

Saving the Sensor Settings and Images to a USB Memory
Saving the sensor settings or
the image history
Backing up in a batch
Backs up the data saved in the sensor into the USB
memory in a batch.
When multiple sensors are to be used, the settings
can be copied based on the batch backup data.
The image history of the batch backup data can be
conrmed by the simulation function of IV-Navigator.
It is recommended to perform a batch backup
of the data saved in the sensor in case of
malfunction of the product.
The saving time increases when this is
performed in [During operation]. Execution while
in the [During setting] status is recommended.
1
Connect the USB memory to the USB
connector of the monitor.
“Installing/Removing the USB memory”
(Page 6-18)
2
Display the USB Memory screen.
“Displaying the USB Memory screen” (Page 6-18)
3
Tap the [Batch Backup] button.
The Batch Backup screen opens.
4
Perform the Batch Backup settings.
Folder
Displays the name of the folder to be created on
the USB memory. "Device name_Last 24bit of
the MAC address" will be automatically set.
File Name
Displays the name of the backup le. Tap the
[Edit] button and the name can be edited to the
arbitrary name.
For details of how to enter characters, refer to
“Inputting characters” (Page 3-16).
Save
Selects the backup target.
Program Only ... Backs up the sensor settings
(the Sensor Setup (Settings
Navigator) and Sensor
Advanced settings of all
programs).
Prog.+
Image Hist.
....... Backs up all the images in the
image history as well as the
sensor settings.
When the image history has been saved
[During operation], the image being the saving
object may be updated and deleted during the
batch backup. A deleted image is not saved.
Because of this, saving [During setting] is
recommended.
File Size
Displays the size of the backup le (expectancy)
and the free space of the USB memory.
5
After the setting is completed, tap the [Go]
button.
After the batch backup completes, the backup
result appears on the monitor.
6
Conrm the backup result and tap the [OK]
button.
The system returns to the run screen or the
Sensor Setup Menu screen.
