6-16
- IV Series User's Manual (Monitor) -

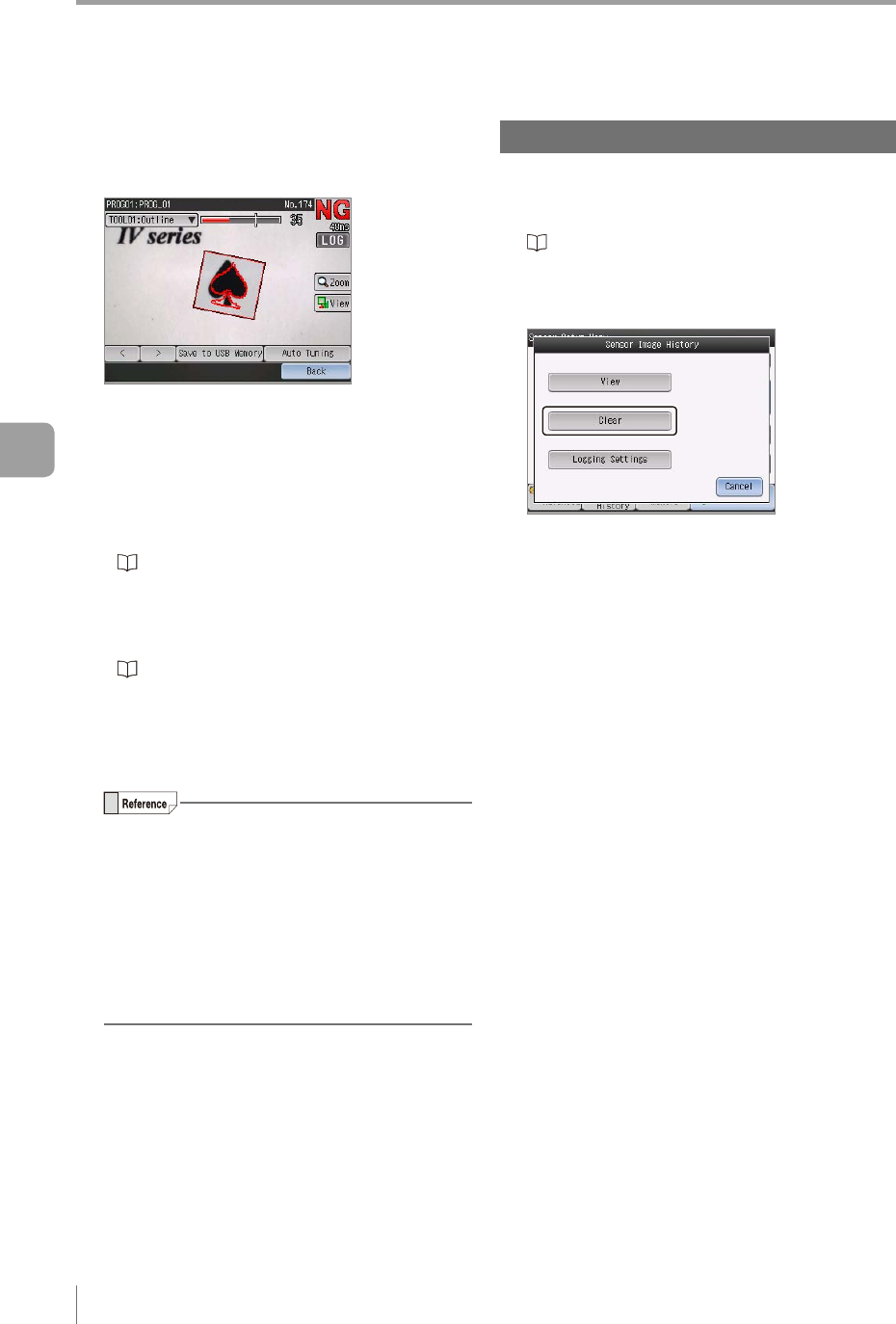

Sensor Image History (Conrming the Images whose Status Result is NG)
(6)
[View] button
Zooms in on the selected image history on the
monitor.
[<] button
Moves to the previous history.
[>] button
Moves to the next history.
[Save to USB Memory] button
Saves the displayed image to the USB memory.
“Saving the image history individually” (Page 6-20)
[Auto Tuning] button
Performs auto tuning based on the displayed
history.
“Tool Auto Tuning (Automatically Adjusting
the Judgment Condition)” (Page 5-15)
Title
Displays the program number, program name
and number of triggers.
In the following cases, characters of the title
are displayed in yellow.
Images which the tool settings was changed
after image history saving
When Tool Auto Tuning has been performed
Moreover, if [Process 1] / [Process 2] / [Process]
is selected for Tool View (Page 5-7), only
the tool window is displayed and the process
contents are not displayed.
(7)
[Back] button
The system returns to the run screen or the
Sensor Setup Menu screen.
Clearing the saved images
Clears the image histories saved in the sensor.
1
Display the Sensor Image History screen.
“Displaying the Sensor Image History screen”
(Page 6-14)
2
Tap the [Clear] button.
The conrmation dialog appears.
3
Tap the [OK] button.
The image history will be cleared and the
system returns to the run screen or the Sensor
Setup Menu screen.
6
Useful Features/Various Functions
