6-12
- IV Series User's Manual (Monitor) -

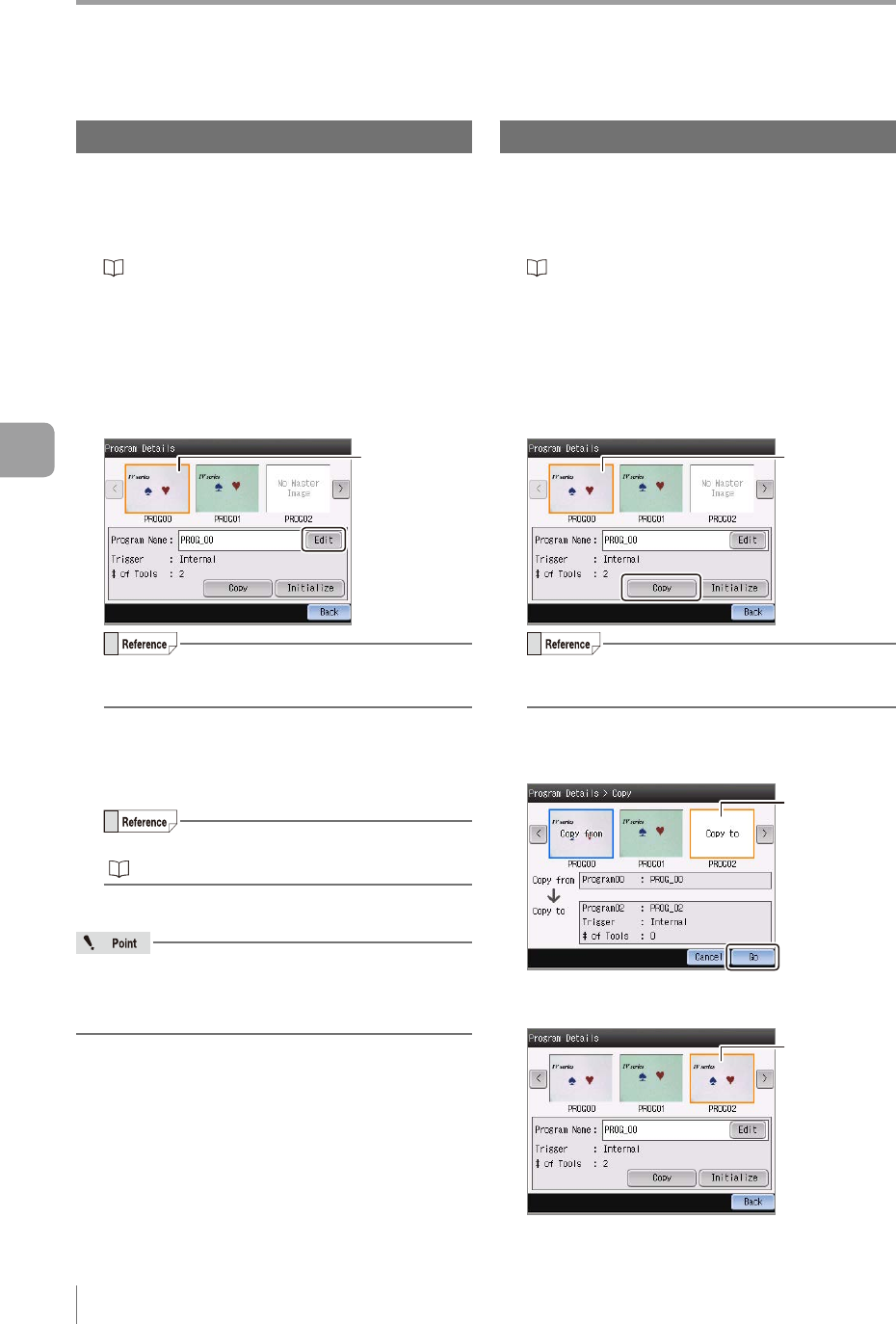

Changeover for a Target (Program Functions)
Editing a program name
Tap the [Detail] button in the Sensor Setup Menu
screen and edit the program name.
1
Display the Sensor Setup Menu screen.
“Displaying the Sensor Setup Menu Screen”
(Page 6-7)
2
Tap the [Detail] button.
The Program Details screen opens.
3
Select the program to change the name
and tap the [Edit] button.
Select the
program
The selected program can be moved by tapping
the [<] or [>] button.
The screen to edit the program name opens.
4
Enter the arbitrary name and tap the [OK]
button.
For details of how to enter characters, refer to
“Inputting characters” (Page 3-16).
The system returns to the Program Details screen.
If the display language (Page 6-51) is changed,
the program name might be replaced and
displayed as hyphens (-).
Copying a program
Copies a set program to another program number.
Re-uses the set items and creates a new program.
1
Display the Sensor Setup Menu screen.
“Displaying the Sensor Setup Menu Screen”
(Page 6-7)
2
Tap the [Detail] button.
The Program Details screen opens.
3
Select the program number to be copied
and tap the [Copy] button.
Select the
program
The selected program can be moved by tapping
the [<] or [>] button.
4
Select the program number to be the copy
destination and tap the [Go] button.
Select the
program
number
The copy source program is copied to the copy
destination.
Copied program
6
Useful Features/Various Functions
