- IV Series User's Manual (Monitor) -
System Conguration

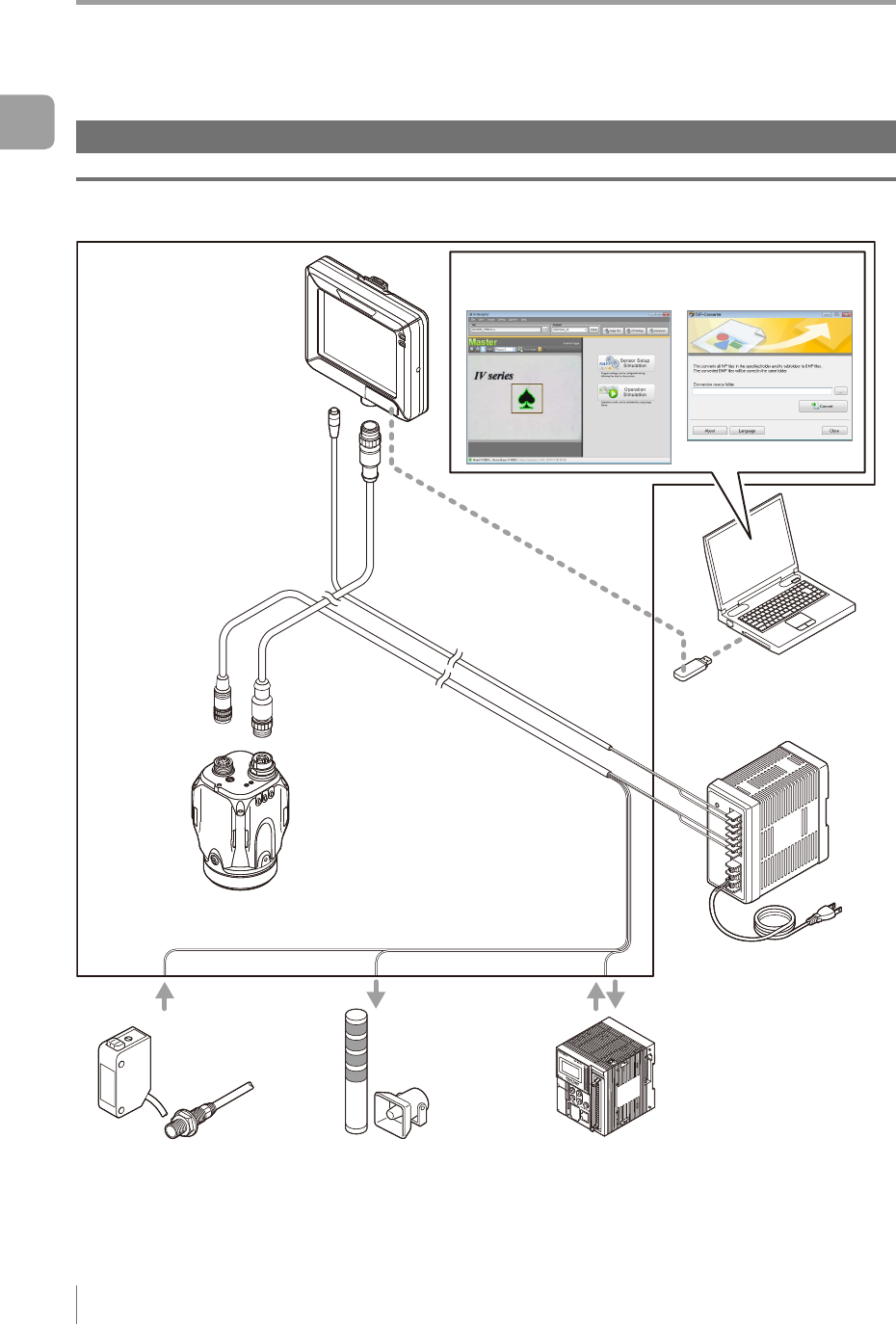

Basic congurations of IV Series
Connecting the monitor and single sensor
IV Series
Monitor cable
(2m/5m/10m/20m)
Monitor power cable
(2m/5m/10m)
Intelligent Monitor
IV-M30
Sensor
IV-500C
IV-500CA
IV-500M
IV-500MA
IV-150M
IV-150MA
IV-2000M
IV-2000MA
Power I/O cable
(2m/5m/10m)
(Optional)
Dome attachment
IV-D10
Polarizing lter attachment
OP-87436/OP-87437
Photoelectric/
proximity sensor etc.
Sends the signal to the trigger
input when the target is detected.
Indicator light/buzzer etc.
Alarm can be output by the
status output function.
PLC
PLC can control the trigger input
and the status output function, and
can switch the program number.
USB memory
DC24V power
Ethernet communication
Simulator
(IV-Navigator) IVP-Converter
System Conguration
1
Getting Started
