5-42
- IV Series User's Manual (Monitor) -

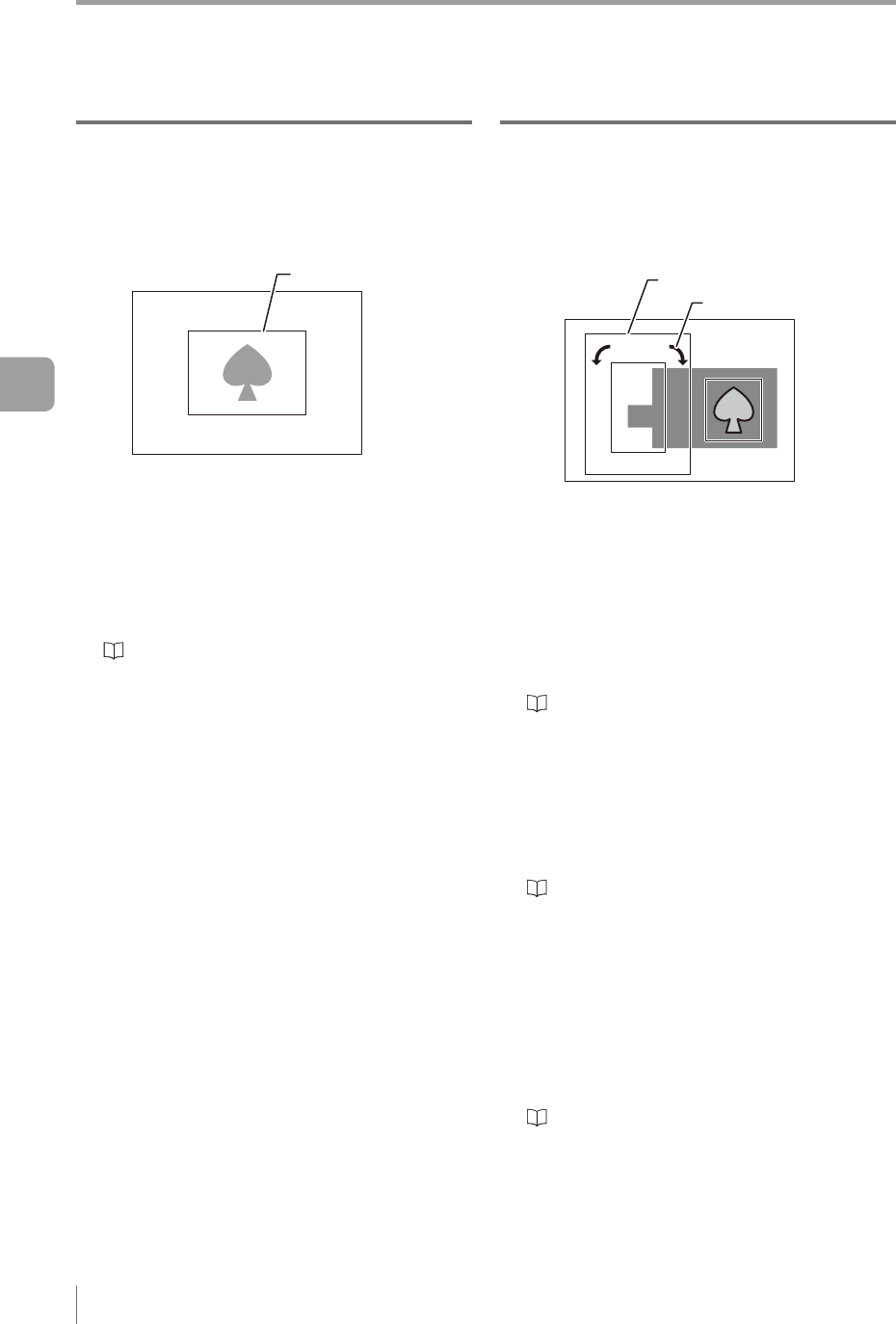

Shortening the Processing Time
Shortening the processing time of the
Color Area/Area tool
The processing time can be shortened by adjusting
the window shape settings.
Window shape
Window Shape
If the current window shape is [Entire], reduce
the window shape by modifying the setting to
[
Rect] or [
Circle].
The processing time can be shortened by reducing
the time required for the area processing.
“Setting the Color Area/Area tool” (Page 4-42)
Shortening the processing time of the
position adjustment
When the position adjustment is performed, the
processing time can be shortened by adjusting the
search region settings or rotation range settings.
Search region
Rotation range
Search Region
The searching time can be shortened by
reducing the search region and setting the
region from [Entire] (default value) to [Partial].
Note that the range of the target position that
the position adjustment function can correct
becomes narrower.
“Setting a search region” (Page 4-55)
Rotation Range
The target search time while rotating the master
image can be shortened by reducing the rotation
range (default value: ± 20°).
Note that the range of the target angle that
the position adjustment function can correct
becomes narrower.
“Rotation Range” (Page 4-57)
Producing an image with less
unnecessary outlines
The processing time becomes longer for images
with multiple unwanted outlines other than the
target outlines.
Make an image with no unwanted outlines by
making the target background plain, etc.
Set the search region so that non-target images
containing unwanted outlines are not searched.
“Setting a search region” (Page 4-55)
5
Operating/Adjusting
