5-40
- IV Series User's Manual (Monitor) -
Shortening the Processing Time
This section explains how to adjust the device to
shorten the processing time.
To shorten the processing time, perform
adjustments to shorten the processing times of the
imaging process and the detection tools.
Shorten the imaging processing time (Page 5-41)
Shorten the processing time of the detection tools
(Page 5-41)
Shorten the processing time of the Outline tool
(Page 5-41)
Shorten the processing time of the Color Area/
Area tool (Page 5-42)
Shorten the processing time of the position
adjustment (Page 5-42)
If the processing time is shortened, the stability of
judgment may decrease. The processing time should
therefore be adjusted with a view of maintaining
balance with the stability of the judgment process.

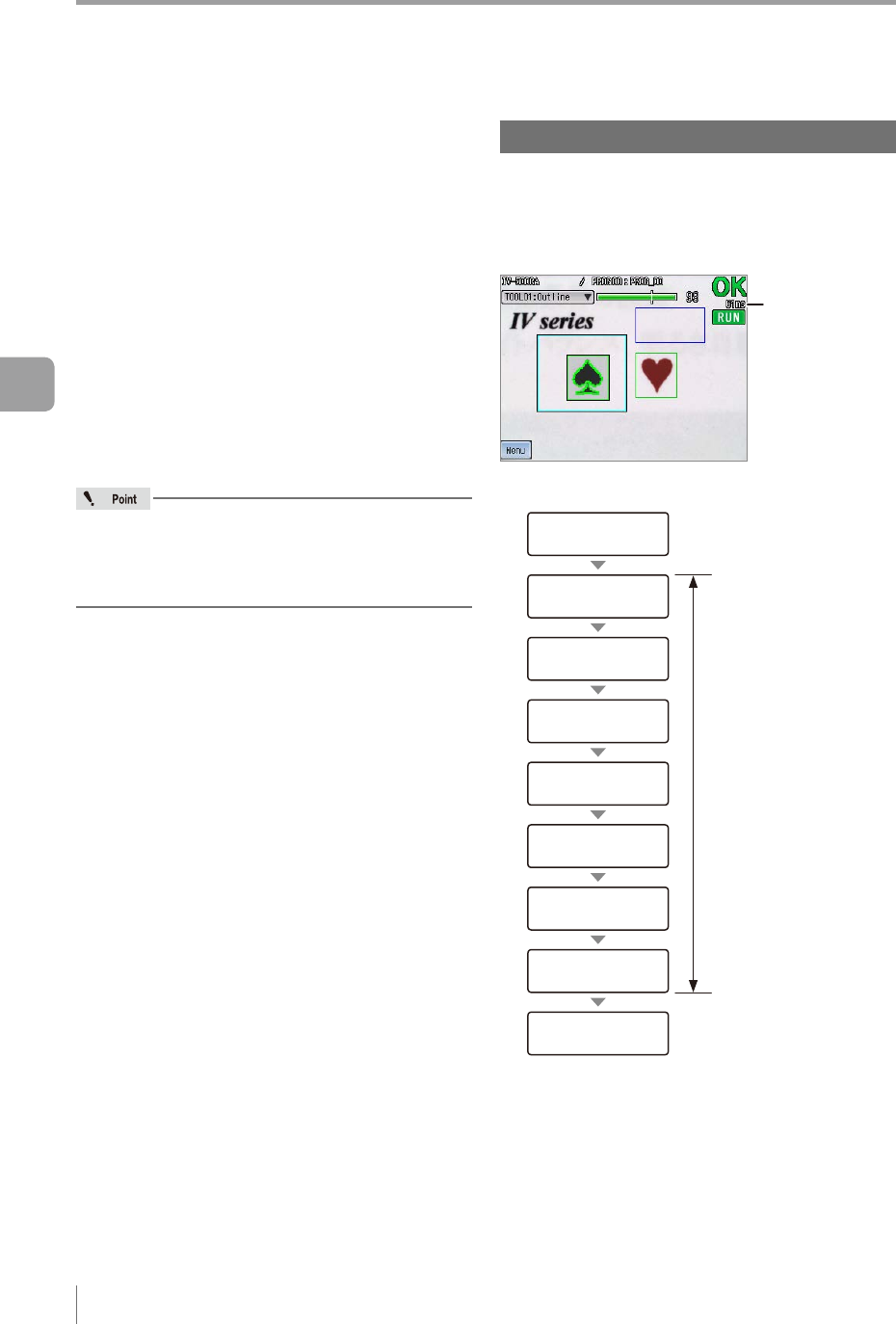

For the processing time
The processing time is the period of time from when
an external or internal trigger is received until the
status result is nalized.
The processing time is displayed at the upper right
of the run screen or the test screen.
Processing time
Flow of the internal process
Trigger input
Imaging
(Tilt Correction)
(Brightness
Correction)
(Position
Adjustment)
Tool 1 process
Tool 2 process
Tool n process
Status output
Processing time
Methods to shorten the processing time are as
follows.
Shortening the imaging processing time.
Shortening the processing time of each tool.
Do not use correction functions (tilt correction,
brightness correction, and position adjustment).
Do not use the FTP client function.
Do not use a eld network.
Shortening the Processing Time
5
Operating/Adjusting
