5-23
- IV Series User's Manual (Monitor) -

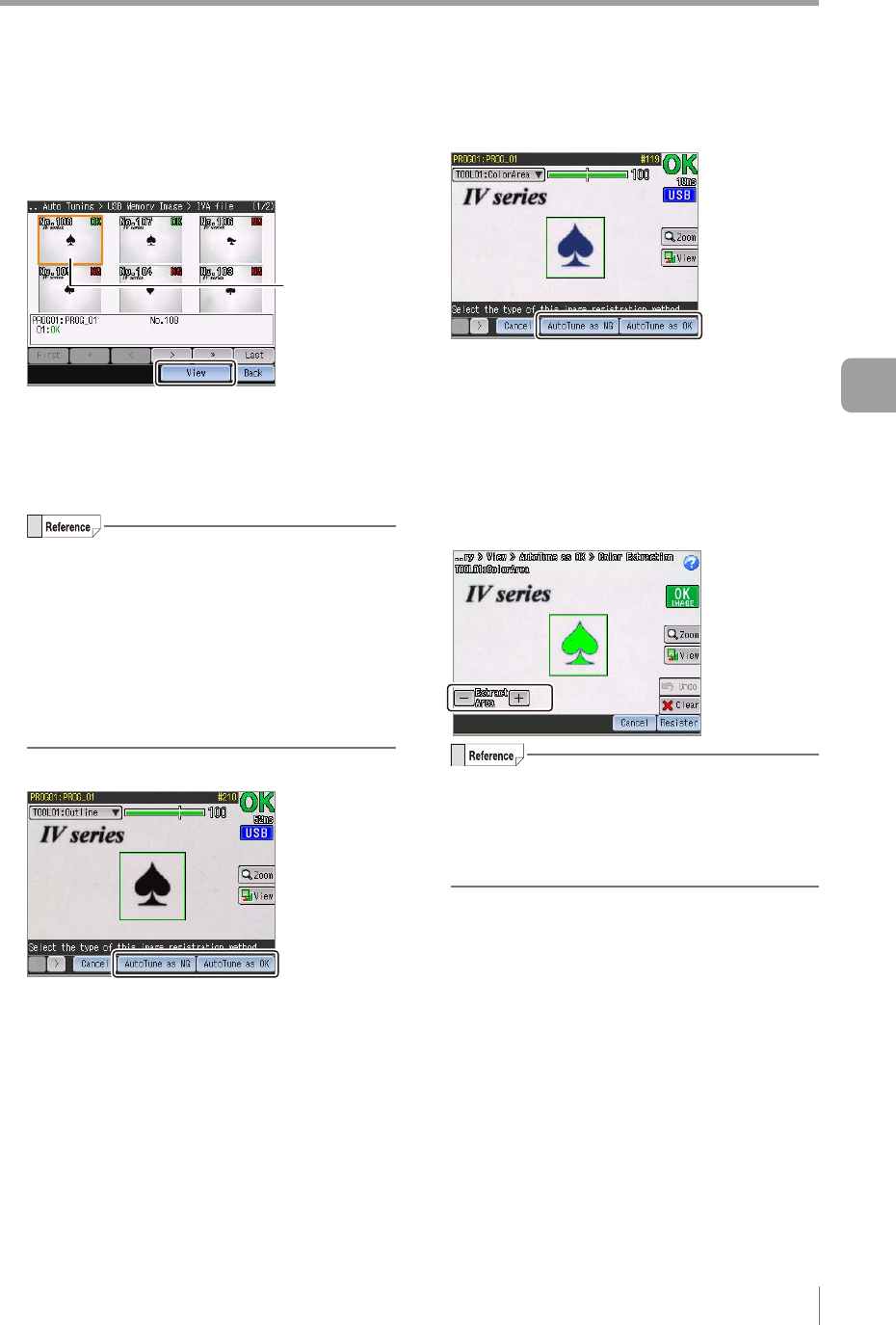

Tool Auto Tuning (Automatically Adjusting the Judgment Condition)
5
When the batch backup le (*.iva) is
selected,
tap the image history to be the
OK or NG image and tap the [Zoom] button.
Select the
The selected image will be enlarged.
6
Check the displayed image and tap the
[AutoTune as OK] or [AutoTune as NG]
button.
When a batch backup le (*.iva) has been
selected, you can check the other images in
enlarged display by tapping the [<]/[>] button.
The status result displayed on the screen
for the batch backup le (*.iva) is the status
result by the settings at the time of saving
the image.
For the image capture le (*.ivp), only the
image will be displayed.
For Outline tool
The auto tuning will be performed and the OK
or NG image will be displayed.
For Color Area tool (color type)
If the [AutoTune as OK] is tapped, the
information screen opens.
By tapping the [OK] button, the setup screen for
the color extraction area opens.
If the extraction area is inappropriate, tap the
color to be the reference of judgment, or tap the
[+]/[-] button for extraction area and expand/
reduce the color area to be extracted.
By tapping the [Undo] button, the previous
operation can be cancelled.
To change the color of extraction target, tap
the [Clear] button and tap the color to be the
reference of judgment again.
After the setting is completed, tap the [Register]
button.
The auto tuning will be performed and the OK
or NG image will be displayed.
5
Operating/Adjusting
