5-22
- IV Series User's Manual (Monitor) -

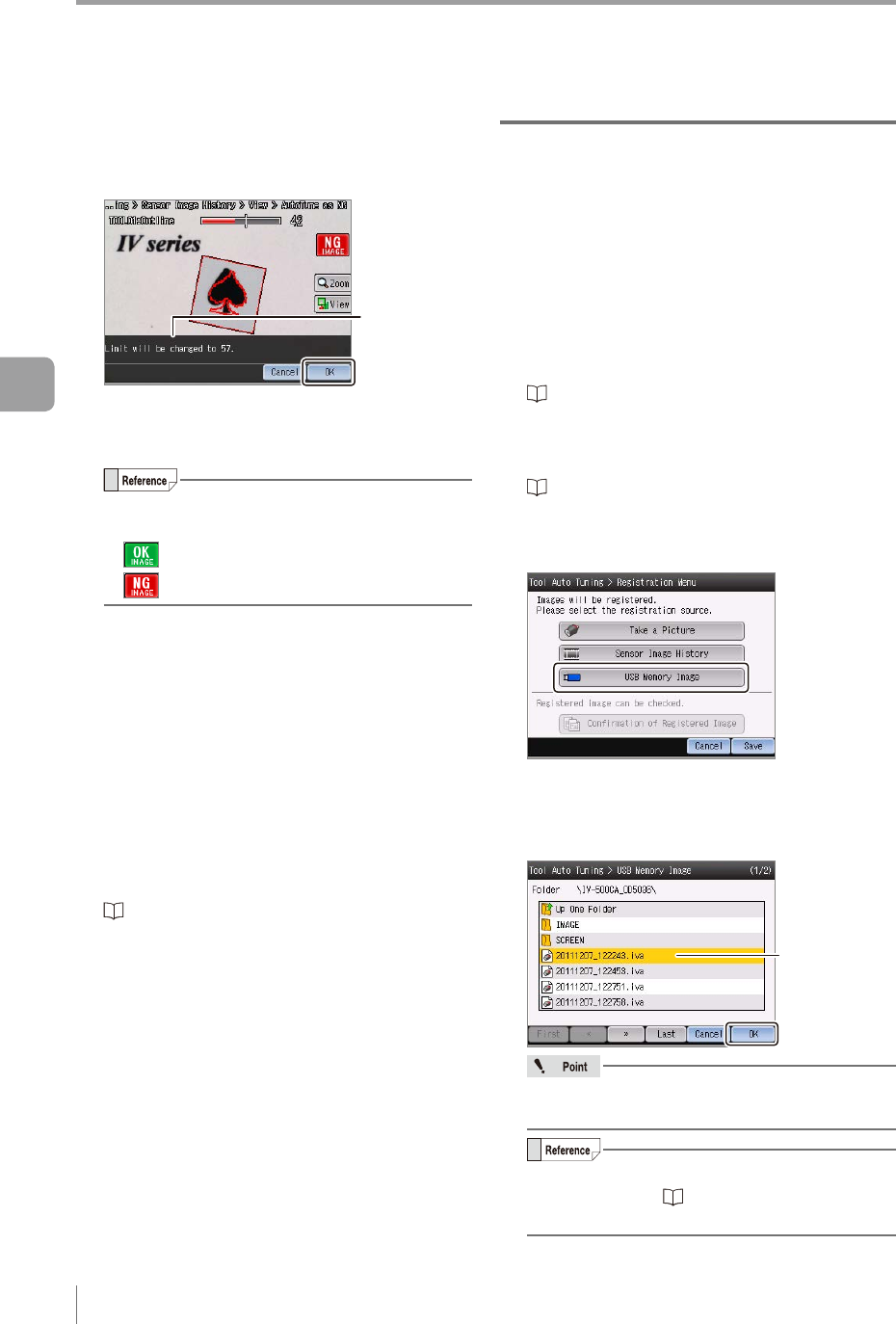

Tool Auto Tuning (Automatically Adjusting the Judgment Condition)
5
Check the changes in settings after the
auto tuning is performed, and tap the [OK]
button.
Changed
settings
If the auto tuning has failed, follow the message
to change the tool settings or the image to be
registered.
The type of an image to be registered will be
displayed on the upper right on the screen.
: Registers as an OK image.
: Registers as an NG image.
The conrmation dialog to continuously register
another image appears.
6
Tap the [Yes] button and repeat steps 3 to 5.
Registering one or more OK images and NG
images is recommended.
Up to 24 images can be registered.
7
After the registration is completed, tap the
[No] button on the conrmation dialog.
The system returns to the main screen for Tool
Auto Tuning.
“Starting and nishing the Tool Auto Tuning”
(Page 5-16)
Registering the images from the le
saved in the USB memory
Registers the image as an OK or an NG image to
perform tuning while checking the images loaded
from the USB memory.
1
Connect the USB memory on which the
batch backup les (*.iva) and image
capture les (*.ivp) are saved, to the USB
connector of the monitor.
“Installing the USB memory” (Page 6-18)
2
Display the main screen for Tool Auto
Tuning.
“Starting and nishing the Tool Auto Tuning”
(Page 5-16)
3
Tap the [USB Memory Image] button.
The USB Memory Image screen opens.
4
Select a batch backup le (*.iva) or image
capture le (*.ivp) and tap the [OK] button.
Select a le to be
loaded
File formats other than “*.iva” or “*.ivp” cannot
be loaded.
For details of selecting les in the USB
memory, refer to “Selecting the le in the
USB memory” (Page 3-17).
5
Operating/Adjusting
