5-21
- IV Series User's Manual (Monitor) -

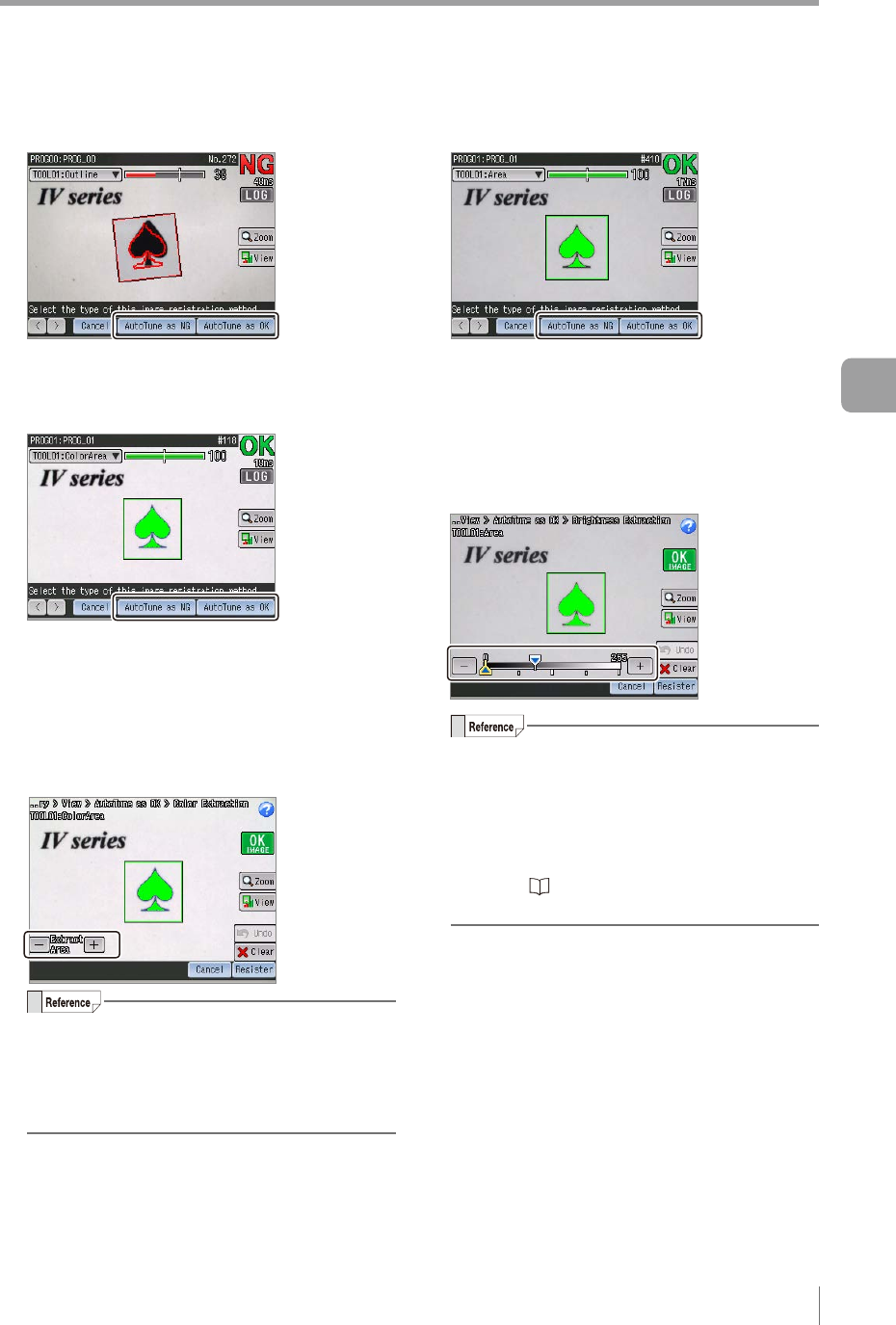

Tool Auto Tuning (Automatically Adjusting the Judgment Condition)
For Outline tool
The auto tuning will be performed and the OK
or NG image will be displayed.
For Color Area tool (color type)
If the [AutoTune as OK] is tapped, the
information screen opens.
By tapping the [OK] button, the setup screen for
the color extraction area opens.
If the extraction area is inappropriate, tap the
color to be the reference of judgment, or tap the
[+]/[-] button for extraction area and expand/
reduce the color area to be extracted.
By tapping the [Undo] button, the previous
operation can be cancelled.
To change the color of extraction target, tap
the [Clear] button and tap the color to be the
reference of judgment again.
After the setting is completed, tap the [Register]
button.
The auto tuning will be performed and the OK
or NG image will be displayed.
For Area tool (monochrome type)
If the [AutoTune as OK] is tapped, the
information screen opens.
By tapping the [OK] button, the setup screen for
the brightness extraction area opens.
If the extraction area is inappropriate, tap the
brightness to be the reference of judgment,
or operate the slider and expand/reduce the
brightness area to be extracted.
By tapping the [Undo] button, the previous
operation can be cancelled.
To change the brightness of extraction target,
tap the [Clear] button and tap the brightness
to be the reference of judgment again.
For details of settings by using the slider,
refer to “Editing the value with the slider”
(Page 3-14).
After the setting is completed, tap the [Register]
button.
The auto tuning will be performed and the OK
or NG image will be displayed.
5
Operating/Adjusting
