5-20
- IV Series User's Manual (Monitor) -
Tool Auto Tuning (Automatically Adjusting the Judgment Condition)
5

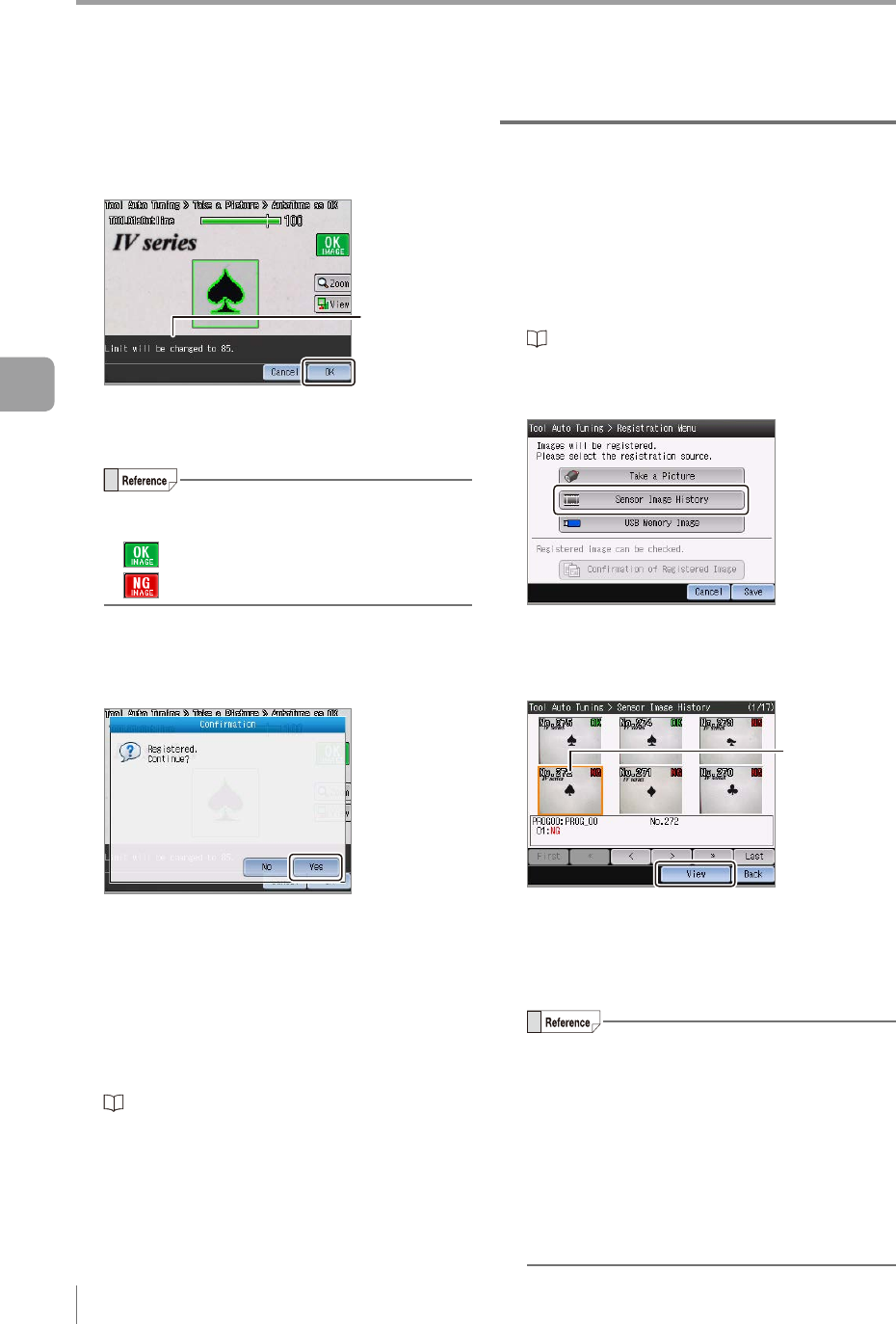

Check the changes in settings after the
auto tuning is performed, and tap the [OK]
button.
Changed
settings
If the auto tuning has failed, follow the message
to change the tool settings or the image to be
registered.
The type of an image to be registered will be
displayed on the upper right on the screen.
: Registers as an OK image.
: Registers as an NG image.
The conrmation dialog to continuously register
another image appears.
6
Tap the [Yes] button and repeat steps 3 to 5.
Registering one or more OK images and NG
images is recommended.
Up to 24 images can be registered.
7
After the registration is completed, tap the
[No] button on the conrmation dialog.
The system returns to the main screen for Tool
Auto Tuning.
“Starting and nishing the Tool Auto Tuning”
(Page 5-16)
Registering the images from the image
history saved in the sensor
Registers the image as an OK or an NG image to
perform tuning while checking the images loaded
from the Sensor Image History.
1
Display the main screen for Tool Auto
Tuning.
“Starting and nishing the Tool Auto Tuning”
(Page 5-16)
2
Tap the [Sensor Image History] button.
The Sensor Image history screen opens.
3
Tap the image history to be the OK or NG
image and tap the [Zoom] button.
Select the
The selected image will be enlarged.
4
Check the displayed image and tap the
[AutoTune as OK] or [AutoTune as NG]
button.
By tapping [<]/[>] button, you can check the
other images in enlarged display.
The status result displayed on the screen is
the status result by the settings at the time
of saving the image. If the tool settings are
changed after the image is saved, only the
frame of the tool window will be displayed
regardless of selection of the tool display
method (Page 5-7). The processing status
will not be displayed.
5
Operating/Adjusting
