Tool Auto Tuning (Automatically Adjusting the Judgment Condition)
4

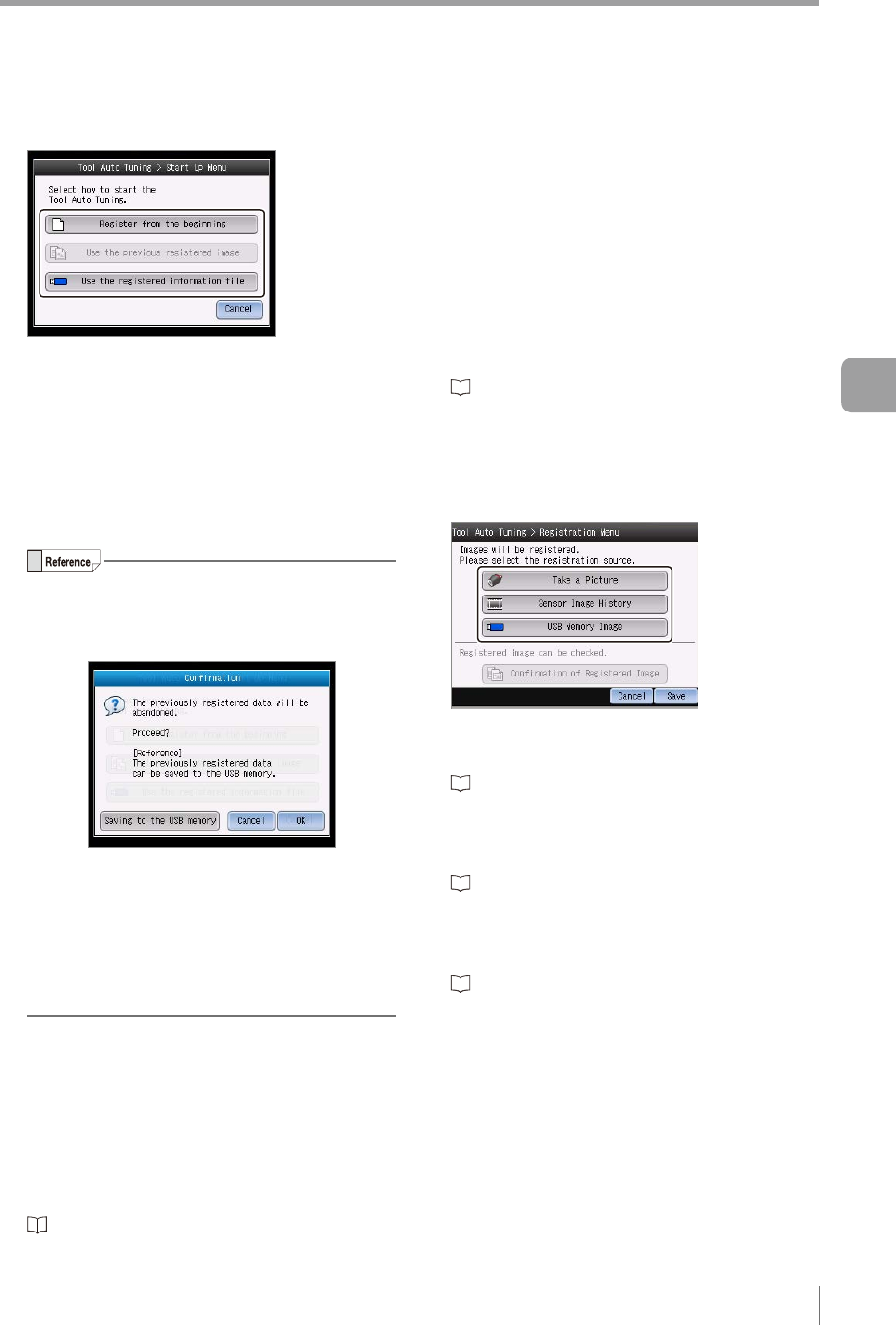

Select a starting method of Tool Auto Tuning.
Register from the beginning
Select this method in the following cases.
When performing Tool Auto Tuning for the rst
time.
When redoing the image registration from the
beginning.
If the [Register from the beginning] is tapped,
the registration menu screen of Tool Auto
Tuning opens. Proceed to step 5.
If the previous registration information has been
saved in the monitor, a conrmation dialog
asking whether or not to discard the previous
registration information appears.
Tap the [OK] button if you wish to discard the
previous registration information and perform
Tool Auto Tuning.
By tapping the [Saving to the USB memory]
button, the result of Tool Auto Tuning can be
saved in the USB memory as a registration
information and can be reused.
Use the previous registered image
Select this method in the following cases.
When performing Tool Auto Tuning after
additionally adding a new image to the OK/NG
image registered in the previous Tool Auto Tuning
When readjusting the tool settings after Tool
Auto Tuning and then repeating the Tool Auto
Tuning by the registered image.
“Tool Auto Tuning by the previous registration
information” (Page 5-26)
Use the registered information le
Select this method in the following cases.
When performing Tool Auto Tuning after
additionally adding a new image to the
registration information (images and criteria
information) saved in the USB memory
When performing Tool Auto Tuning using the
registration information (images and criteria
information) saved in the USB memory after
readjusting the tool settings
“Tool Auto Tuning by the registration
information le” (Page 5-28)
5
Select the registration source of the image
to be registered to the Tool Auto Tuning
and register the image.
For registration of an image taken during
the Test mode
“Registering the images taken in the Test
mode” (Page 5-18)
For registration of an image history saved
in the sensor
“Registering the images from the image
history saved in the sensor” (Page 5-20)
For registration of an image le saved in
USB memory
“Registering the images from the le saved
in the USB memory” (Page 5-22)
5
Operating/Adjusting
