5-16
- IV Series User's Manual (Monitor) -

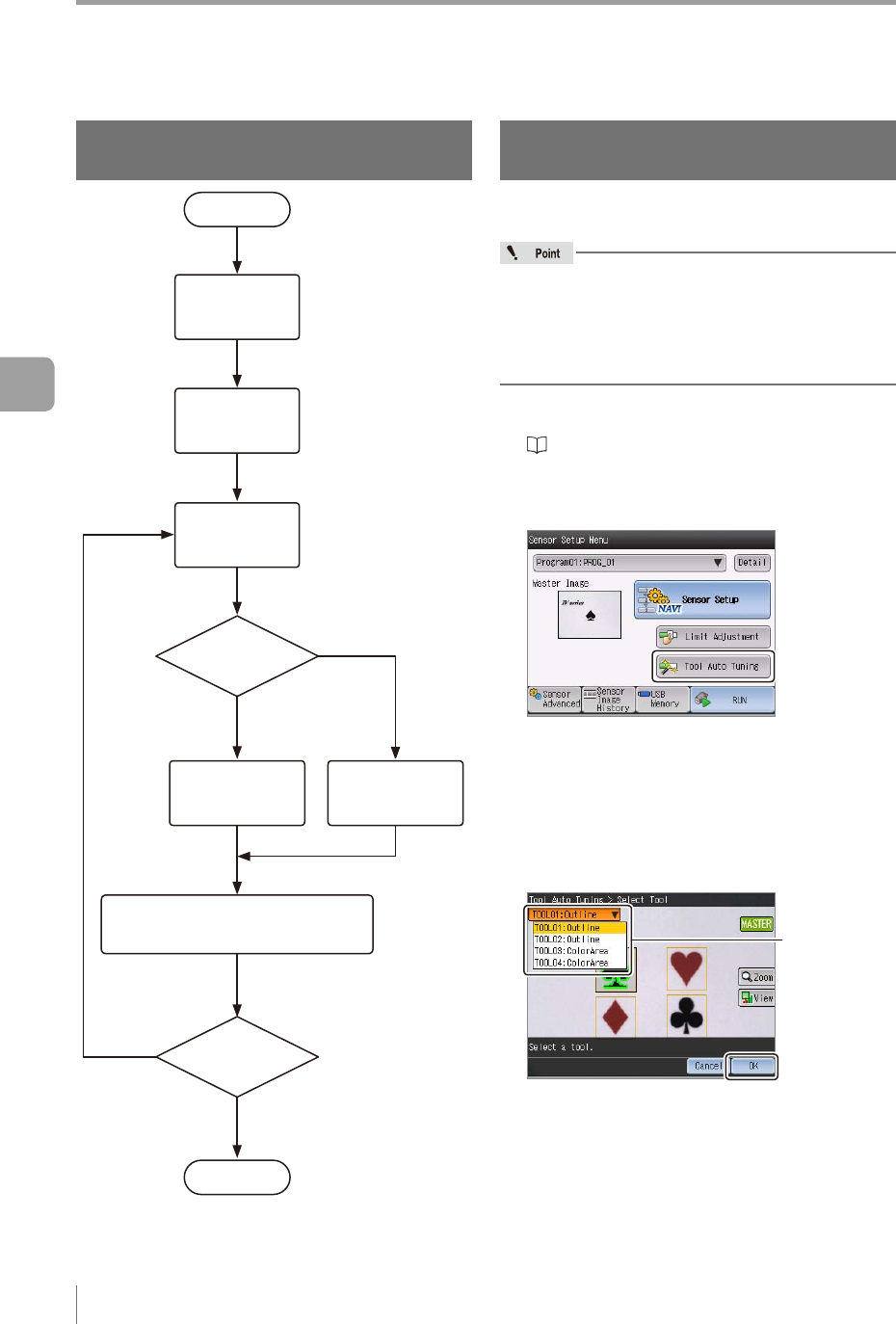

Tool Auto Tuning (Automatically Adjusting the Judgment Condition)
Operation ow for the Tool Auto
Tuning
High-quality
No
Yes
Low-quality
AutoTune as
OK
Automatically adjust the judgment
condition and threshold
Image a target
Select a starting
method
Select
the tool
Start
Finish
Judgment of an
image?
AutoTune as
NG
Add image?*
* There are three methods to prepare images.
*
Up to 24 images can be used for tuning.
Starting and nishing the Tool Auto
Tuning
Displays the main screen for Tool Auto Tuning from
the Sensor Setup Menu screen.
The position adjustment tool is not a target for
Tool Auto Tuning.
The Color Area/Area tools with the [Fixed
Reference Area] set as [Enable] are excluded
from a Tool Auto Tuning target.
1
Display the Sensor Setup Menu screen.
“Displaying the Sensor Setup Menu Screen”
(Page 6-7)
2
Tap the [Tool Auto Tuning] button.
When the Tool Auto Tuning Guide screen
opens, tap the [Start] button.
3
If multiple tools are set in the program,
select the target tool for Tool Auto Tuning
from the pull-down menu, and tap the [OK]
button.
Select the tool
The Start Up Menu screen for Tool Auto Tuning
opens.
5
Operating/Adjusting
