- IV Series User's Manual (Monitor) -
Tool Auto Tuning (Automatically Adjusting the Judgment Condition)
The Tool Auto Tuning is a function to automatically
adjust the judgment condition for the detection tool
and the judgment threshold for each tool by using
multiple high-quality-targets (OK images) and low-
quality-targets (NG images).
There are three methods to register the image to
be used for Tool Auto Tuning.


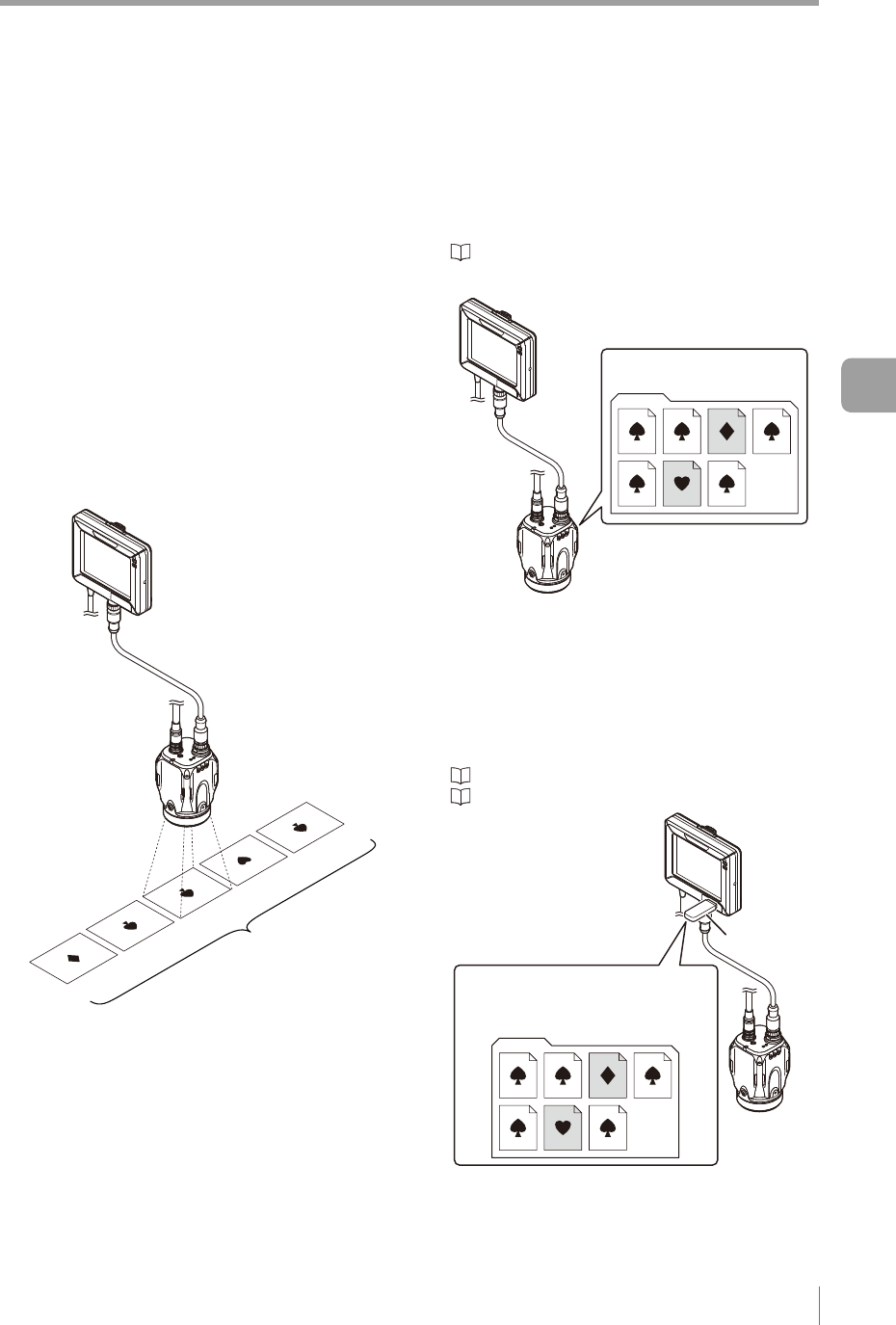

Using the images taken in the Test
mode
This is the method to register the image as an
OK or an NG image to perform tuning while
preparing the multiple high and low-quality-
target and checking the results of the test
operation.
NG
OK
OK
NG
OK
Perform tuning by
imaging targets which
are judged as OK or NG

Using the image history saved in the
sensor
This is the method to register the image as an OK
or an NG image to perform tuning while checking
the images read from the Sensor Image History.
“Sensor Image History (Conrming the Images
whose Status Result is NG)” (Page 6-14)
Sensor Image History
Perform tuning by reading the
images judged as OK or NG
from the Sensor Image History

Using the image les saved in the
USB memory
This is the method to register the image as
an OK or an NG image to perform tuning
while checking the images read from the USB
memory. Batch backup les (*.iva) and image
capture les (*.ivp) can be used.
“Backing up in a batch” (Page 6-19)
“Capturing the screen” (Page 6-23)
USB
memory
Batch backup le (*.iva)
Image capture le (*.ivp)
Perform tuning by reading the images judged as OK
or NG from the USB memory
Tool Auto Tuning
(Automatically Adjusting the Judgment Condition)
5
Operating/Adjusting
