5-12
- IV Series User's Manual (Monitor) -
Names and Functions of the Operation Screen

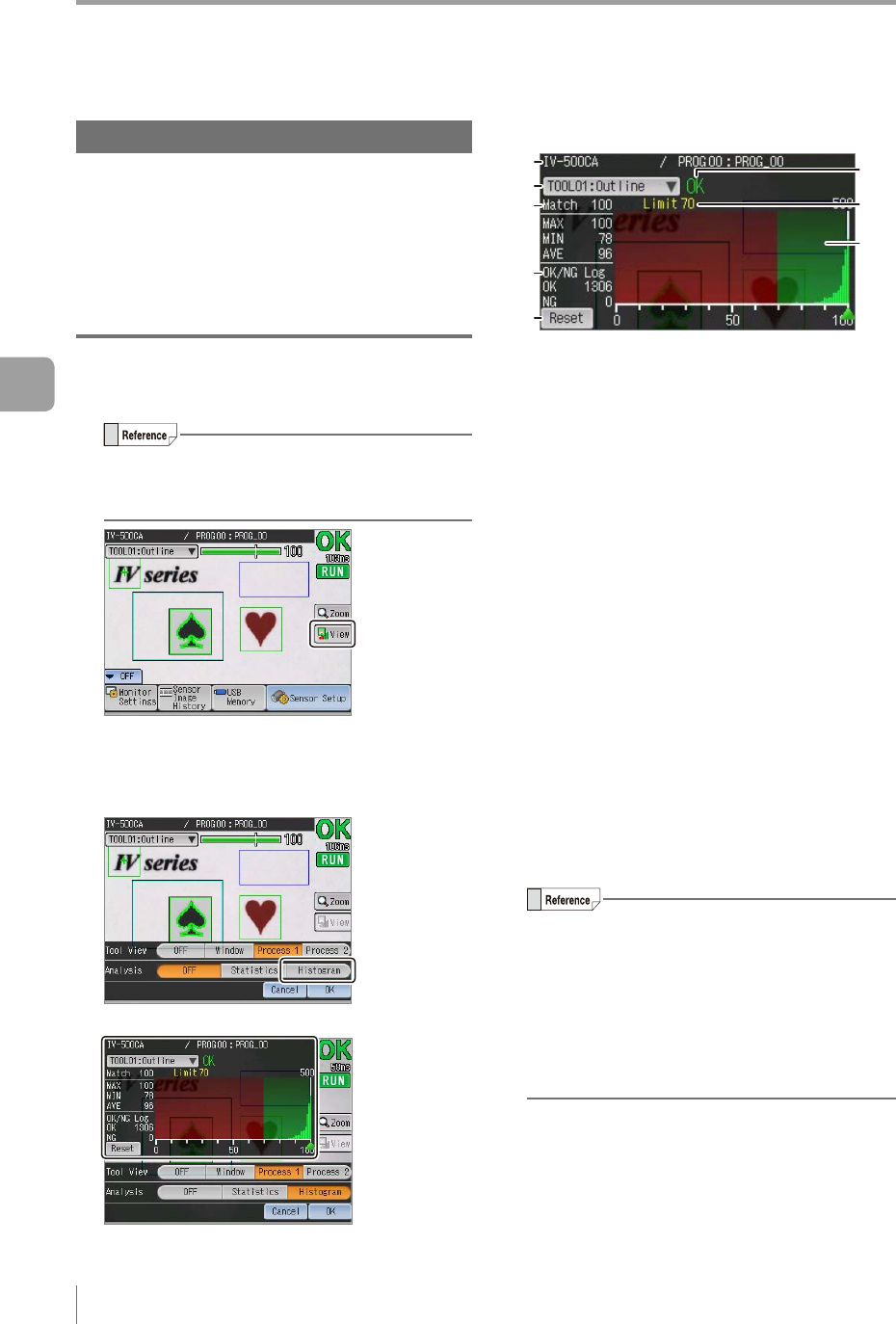

Displaying the histogram
When the [View] button is tapped on the Menu ON
screen, the menus of [Tool View] and [Analysis] are
displayed.
If the [Histogram] button in the [Analysis] is
selected, the matching rate of the selected tool is
displayed as a histogram.
Displaying the histogram
1
Tap the [View] button.
If the [View] button is not displayed, tap the
[Menu] button at the lower left corner of the
monitor.
The menus of [Tool View] and [Analysis] will be
displayed.
2
Tap the [Histogram] button.
The histogram appears.
Contents of the histogram are as follows.
(1)
(2)
(4)
(5)
(3)
(7)
(8)
(6)
(1)
Title
Displays the name of the sensor (Page 6-29),
program number (Page 6-7), and program
name (Page 6-12).
(2)
Tool Name
Displays the name of the tool whose histogram
is been shown. Tap the tool name to select the
tool whose histogram is you wish to display.
(3)
Matching rate information
Displays the information related to the matching
rate.
Match ......... Displays the matching rate of the
latest judgment process.
MAX ........... Displays the maximum value of
the matching rate.
MIN ............ Displays the minimum value of
the matching rate.
AVE ............ Displays the average value of the
matching rate.
(4)
Judgment Record
Displays the judgment process counts for OK or NG.
OK ..............
Displays the process count for "OK".
NG ..............
Displays the process count for "NG".
If the judgment threshold is changed, the
histogram is updated according to the result
judged based on the changed threshold.
However, the judgment record retains the
counts judged based on the previous threshold.
Therefore, the judgment conditions on the
histogram may be different from the displayed
judgment record counts.
(5)
[Reset] button
Resets the statistical information and the histograms.
(6)
Tool status result
Displays the status results for the selected tool
as OK, NG, or -- (Pos.Adj. fails).
5
Operating/Adjusting
