Names and Functions of the Operation Screen

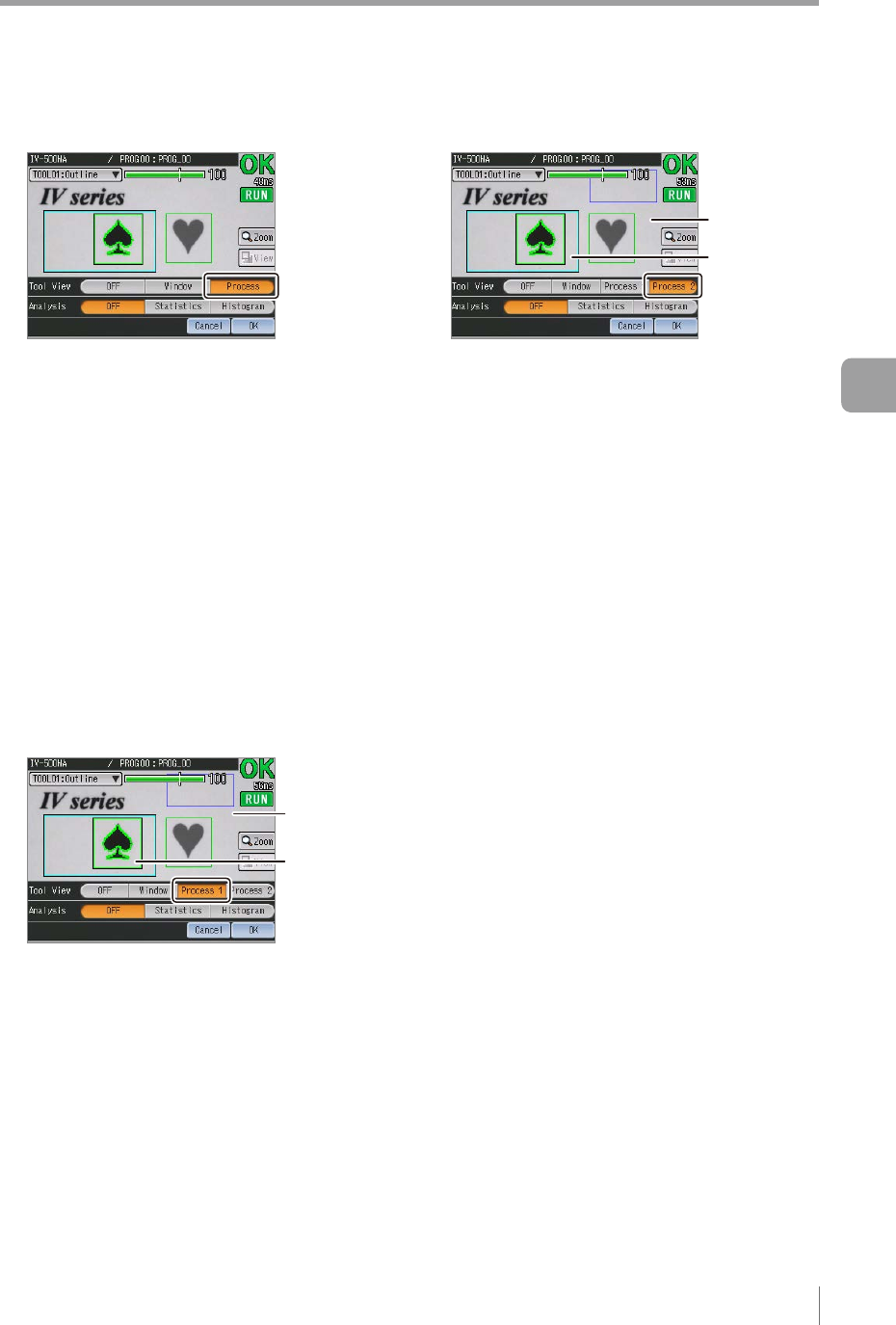

Process
This is selectable for the Area tool and for the
Outline tool for which [Brightness Correction] has
not been set.
Compared to when the [Window] is selected, the
following are different. The rest are the same.
Selected tool
Outline tool
Indicates the recognized outline with a series
of points in green (OK) or red (NG).
Area tool
Displays the extracted region in green (OK) or
red (NG).
If the brightness correction has been set, the
inside the tool window will be displayed with
the corrected brightness and outside the tool
window will be displayed with the brightness
before correction.
Process 1
Inside the tool
window
Outside the tool
window
This is selectable for the Outline tool for which
[Brightness Correction] has been set.
Compared to when the [Window] is selected, the
following are different. The rest are the same.
Selected tool
Indicates the recognized outline with a series of
points in green (OK) or red (NG).
Displays inside the tool window with the
corrected brightness and outside the tool
window with the brightness
before correction.
Process 2
Inside the
search region
Outside the
search region
This is selectable for the Outline tool for which
[Brightness Correction] has been set.
Compared to when the [Process 1] is selected,
the following are different. The rest are the same.
Selected tool
Displays inside the search region with the
corrected brightness and outside the search
region with the brightness
before correction.
