5-3
- IV Series User's Manual (Monitor) -

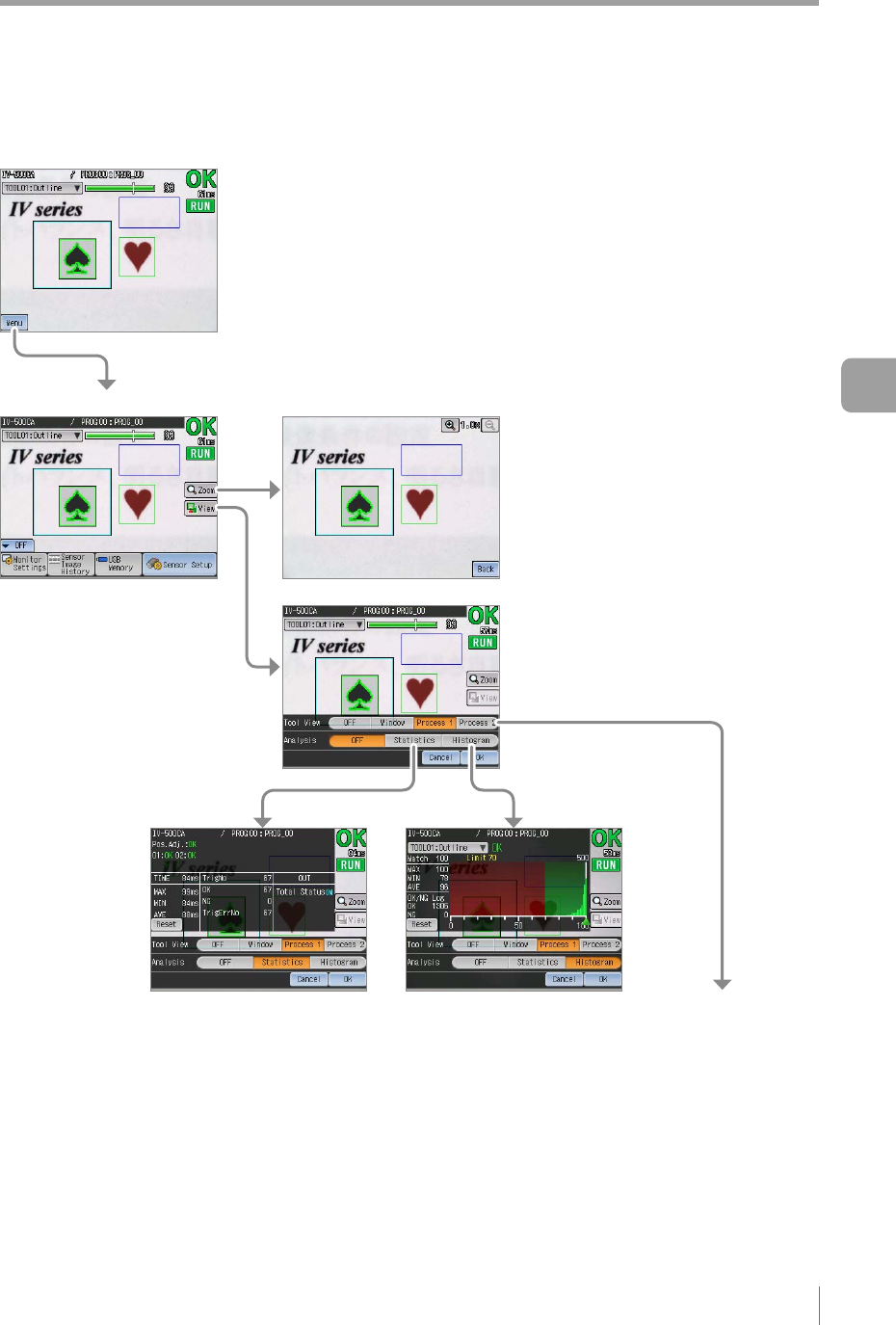

Overview of the Operation Screen
Overview of the Operation Screen
Start screen
Menu OFF (Page 5-4)
Menu ON (Page 5-4)
Display setting screen
Selects the [Tool View] and [Analysis] menu,
and set the information to display on the
monitor.
Statistics display screen
(Page 5-10)
Displays the statistical
information of the status result.
Histogram display screen
(Page 5-12)
Displays the histogram of the
status result.
Selecting the display
method of the tool.
(Page 5-7)
Zoom/Full-screen mode
(Page 5-5)
Hides the title and menu button, and displays
the entire image.
Changes the display magnication of an
image.
5
Operating/Adjusting
