4-66
- IV Series User's Manual (Monitor) -
Display Method of Extended Functions Menus
In each setting for Settings Navigator, the extended
functions menu will be displayed by tapping the < >
extended functions display button at the lower left on
the screen.
This section explains how to display the extended
functions menu using an example of the Image
Optimization screen.
For details of extended functions menu, refer to
details in each step.
1
Start the Settings Navigator.
“Starting the Settings Navigator” (Page 4-3)
2
Display the main screen for the Image
Optimization.
“Settings Navigator screen and operation ow”
(Page 4-4)

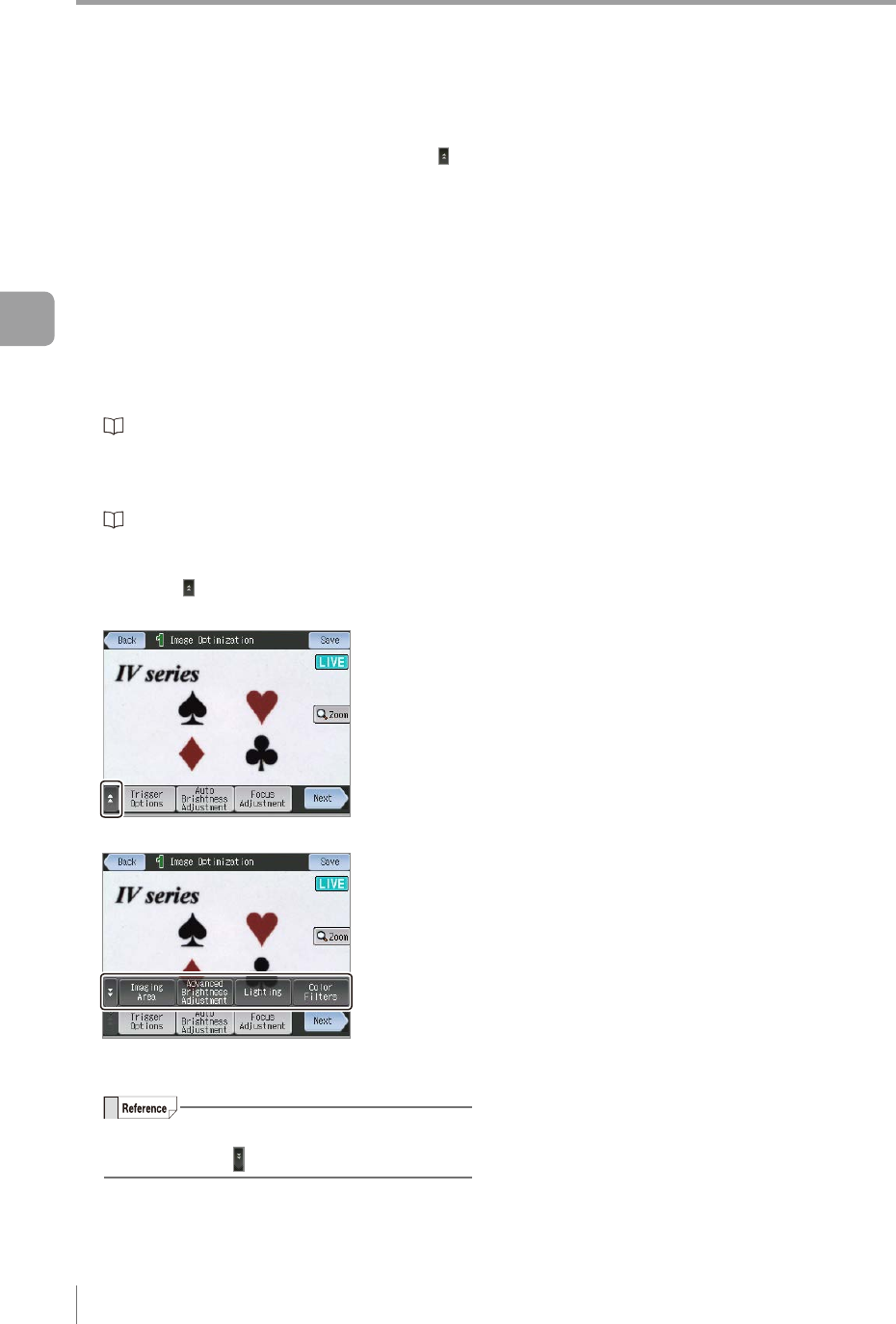

3
Tap the < > extended functions display
button at the lower left of the window.
The extended functions menu will be displayed.
Tap the arbitrary button and set the extended
functions menu.
The extended functions menu will be hidden
by tapping the <
> button.
Display Method of Extended Functions Menus
4
Settings Navigator (Setting the Judgment Condition)
