- IV Series User's Manual (Monitor) -

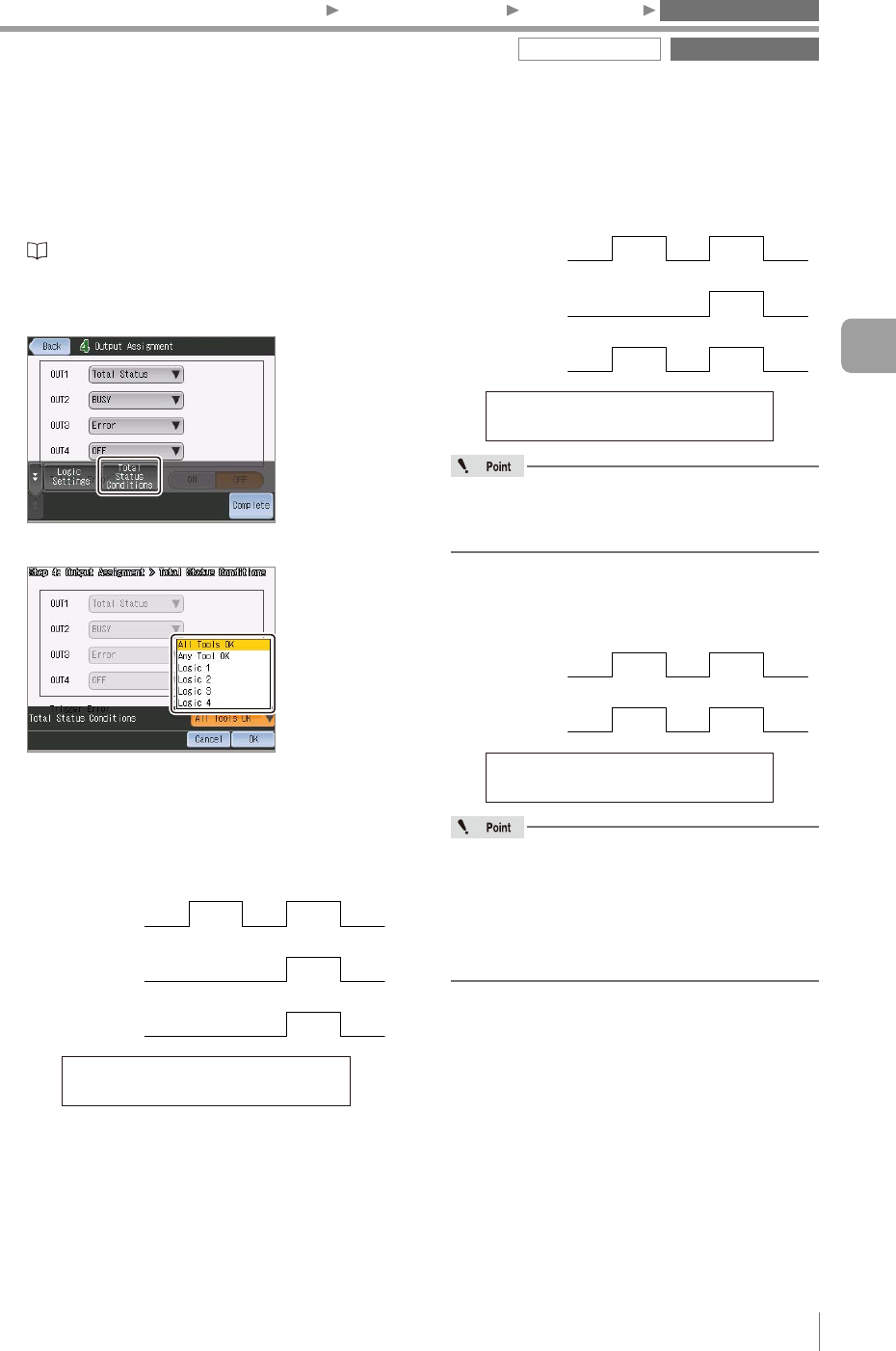

Total Status Conditions
1
Display the extended functions menu for
the Output Assignment.
“Display Method of Extended Functions
Menus” (Page 4-66)
2
Tap the [Total Status Conditions] button.
3
Select a total status condition.
The total status result is displayed in
accordance with the selected condition.
All Tools OK
When all of the detection tools were OK, the
total status output function turns ON.
Image of total status output when the total
status condition is [All Tools OK]
OK
Tool A
Tool B
Total
Status
OK
OK
NG
NG
NG
Any Tools OK
When any of the detection tools was OK, the
total status output function turns ON.
Image of total status output when the total
status condition is [Any Tools OK]
OK
Tool A
Tool B
Total
Status
OK
OK
NG
NG
NG
For [Any Tools OK], the status result of the
position adjustment is not included in the total
status conditions.
Logic 1 to 4
When the status result of the dened logic was
OK, the total status output function turns ON.
Image of total status output when the total
status condition is [Logic 1 to 4]
Logic
1 to 4
Total
Status
OK
OK
NG
NG
When the position adjustment failed, the
status result of each tool is NG.
If the Area tool window is protruded from
the imaging area when position adjustment
succeeded, the tool cannot be judged and
the status result is NG.
4
When the setting is completed, tap the
[OK] button.
The system returns to the main screen for the
Outline tool settings.
1. Image Optimization 2. Master Registration 3. Tool Settings 4. Output Assignment
Output Assignment Extended functions
4
Settings Navigator (Setting the Judgment Condition)
