4-64
- IV Series User's Manual (Monitor) -

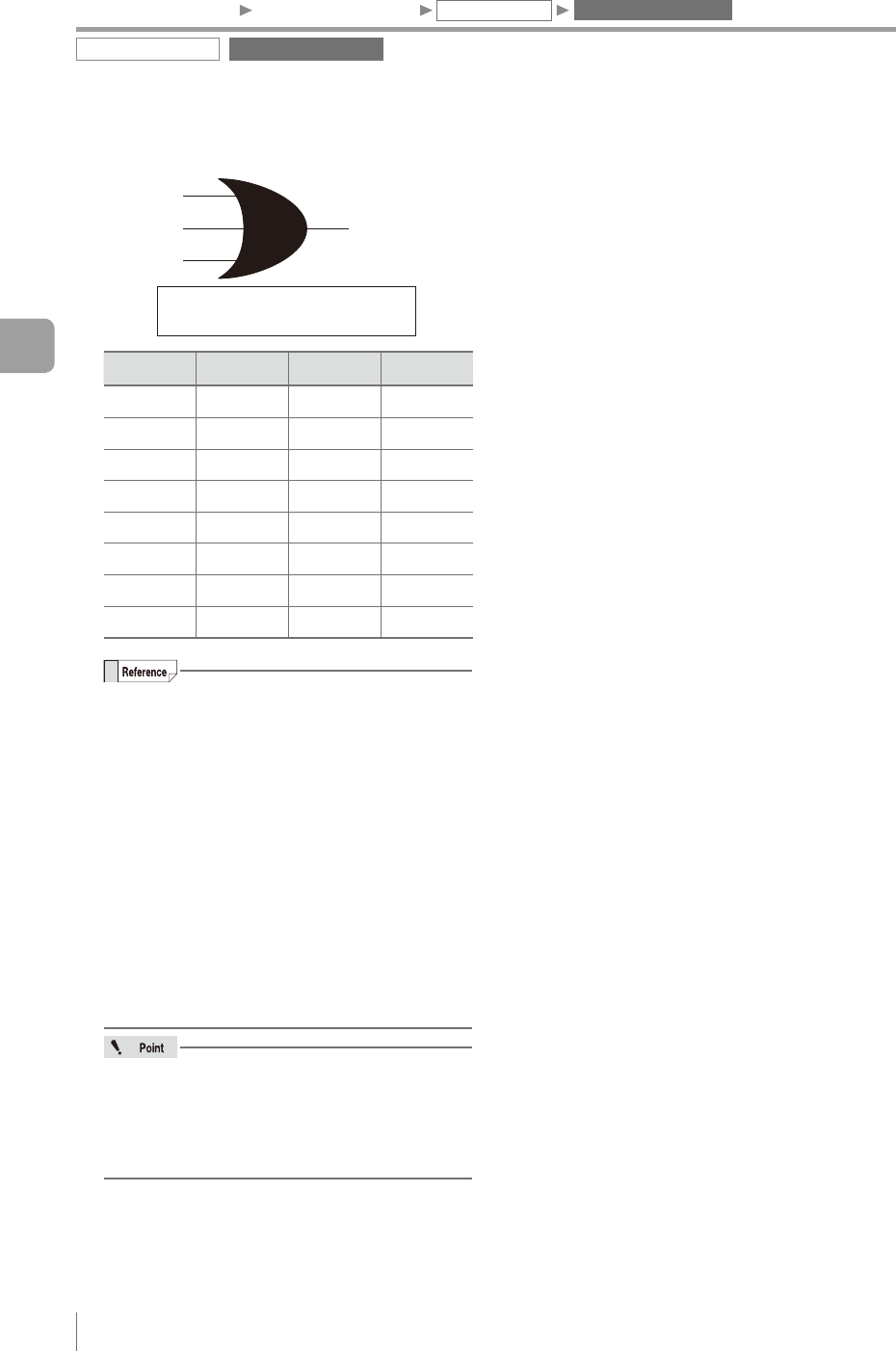

Logic : OR
Image of logic output when the Logic
is [OR]
Tool A
Logic 1 to 4Tool B
Tool C
(Inverse)
Tool A
Tool B Tool C
Logic
OK OK OK OK
NG OK OK OK
OK NG OK OK
NG NG OK NG
OK OK NG OK
NG OK NG OK
OK NG NG OK
NG NG NG OK
Select either [Unused]/[Used]/[Used
(Inverse)] for each item (Position Adjustment/
Tool 01 to Tool 16/Logic 1 to Logic 4).
When the status results of the [Used] items
were OK, the status output function for items
in the logic turns ON.
When the status results of the [Used
(Inverse)] items were NG, the status output
function for items in the logic turns ON.
To dene a logic which has been set to
another logic, use the logic number which
is greater than the logic number which has
been set.
For example, use either of Logic 2 to Logic 4
in case of dening Logic 1 to another logic.
When the program number has been changed
and you went to [Run] from [Program] after
the power ON, the judgement is not done if no
trigger input. The judgement output of each
tool is OFF.
6
When the setting is completed, tap the
[OK] button.
The system returns to the Logic Settings screen.
7
Tap the [Close] button.
The system returns to the main screen for the
Outline tool settings.
Output Assignment Extended functions
1. Image Optimization 2. Master Registration 3. Tool Settings 4. Output Assignment
4
Settings Navigator (Setting the Judgment Condition)
