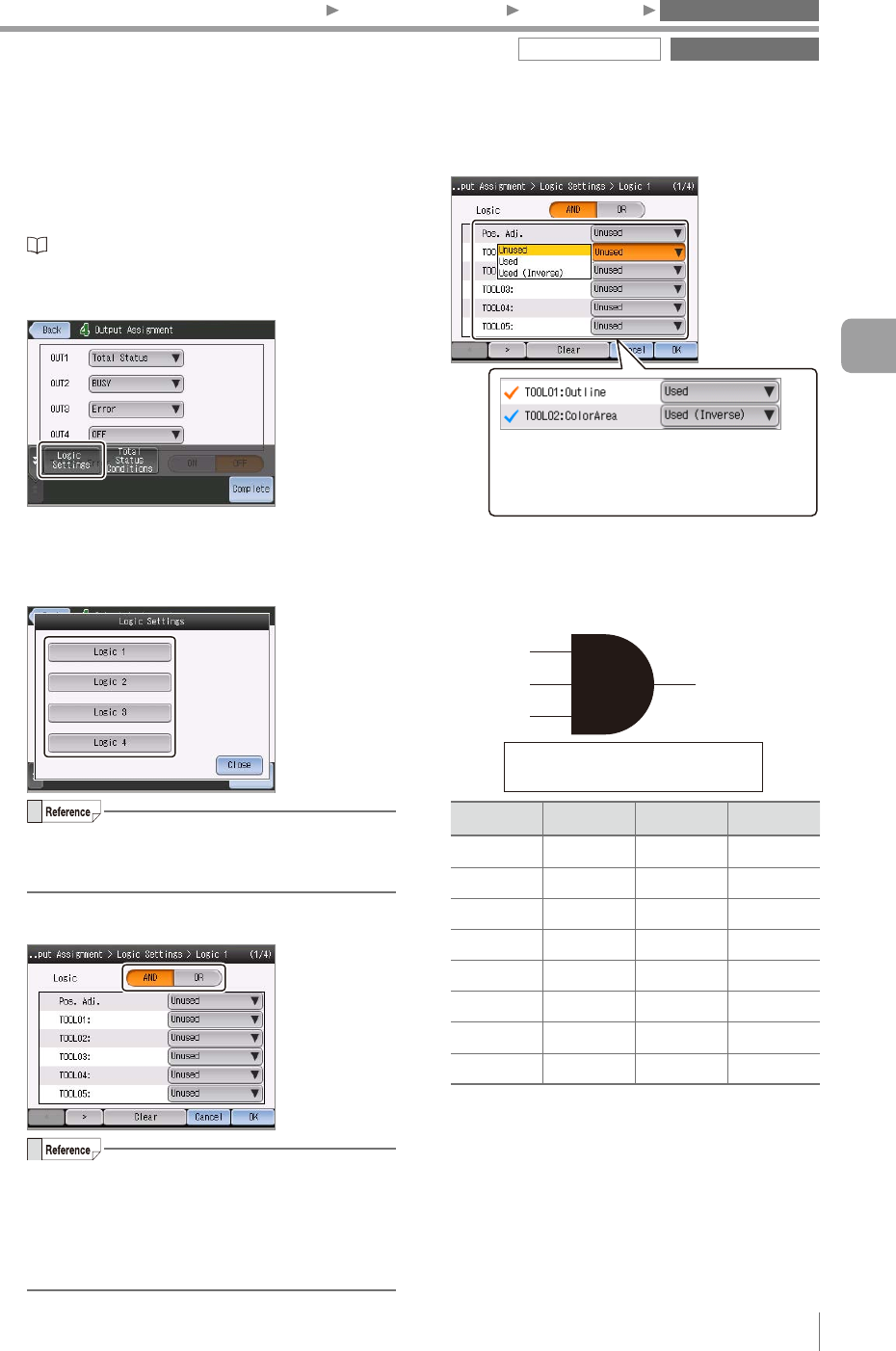

Logic Settings
1
Display the extended functions menu for
the Output Assignment.
“Display Method of Extended Functions
Menus” (Page 4-66)
2
Tap the [Logic Settings] button.
The Logic Settings screen opens.
3
Tap the number which the logic judgement
condition is to be dened.
When an undened detection tool has been
dened to a logic, [An undened tool is selected.]
is displayed on the right side of the logic number.
4
Select the logical operation method of the logic.
When [AND] has been selected, the logic
output is the logical multiply (AND) of the
status results of each selected item.
When [OR] has been selected, the logic
output is the logical sum (OR) of the status
results of each selected item.
5
Select items to be integrated into the logic.
Red checks are displayed at the items which
"Used" is selected.
Blue checks are displayed at the items which
"Used (Inverst)" is selected.
The status result of the logic is calculated from
OK/NG of all of the items which [Used] or [Used
(Inverse)] has been set.
Logic : AND
Image of logic output when the Logic
is [AND]
Tool A
Logic 1 to 4Tool B
Tool C
(Inverse)
Tool A
Tool B Tool C
Logic
OK OK OK NG
NG OK OK NG
OK NG OK NG
NG NG OK NG
OK OK NG OK
NG OK NG NG
OK NG NG NG
NG NG NG NG
