4-58
- IV Series User's Manual (Monitor) -
Extended functions for the Tool settings
Items of extended functions for the Tool settings
Items Description Setting range
Default
value

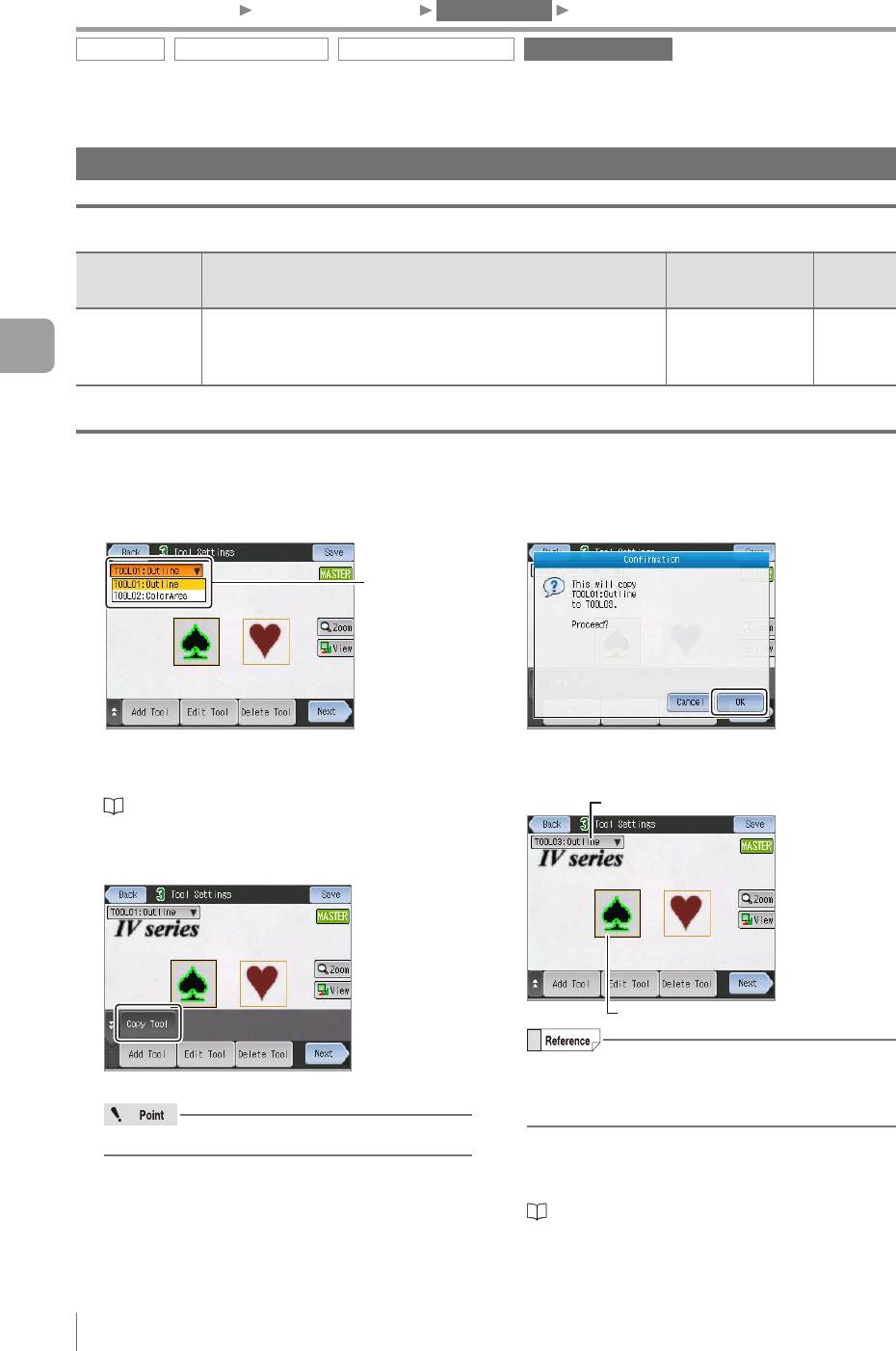

Copy Tool
Copies a tool which has been set, and pastes it to the
same position.
This is for outline tool and color area/area tool.
- -
Copy Tool
This section explains using example of the Outline tool.
1
Select the copy source tool.
Select the copy
source tool.
2
Display the extended functions menu for
the Tool settings.
“Display Method of Extended Functions Menus”
(Page 4-66)
3
Tap the [Copy Tool] button.
The conrmation dialog appears.
If 16 tools are set, tools cannot be copied.
4
Tap the [OK] button.
The copied tool window with the selected status
will be displayed in the copy source tool window.
Name of copied tool
Copied tool
The tool number which has not been set
will be automatically assigned to the copy
destination tool number.
5
Tap the [Edit Tool] button and set the copied
tool.
“3. Tool Settings (Setting the Judgment
Method for Targets)” (Page 4-28)
Outline tool Color Area/Area tool Position Adjustment tool Extended functions
1. Image Optimization 2. Master Registration 3. Tool Settings 4. Output Assignment
4
Settings Navigator (Setting the Judgment Condition)
